M38-M38A1 GROUP 6 ELECTRICAL

M38-M38A1

GROUP 6 ELECTRICAL

*NEW* "M" Series 24 Volt Gauges

Attention M Series owners.  Your search for hard to find affordable gauges is over.

We now have available high quality 24 Volt Gauges with Douglas Connectors for the M38, M38A1 and M37.



Fuel Gauge  -  Temperature Gauge  -  Volt Gauge



Oil Pressure Gauge 0-60 - Oil Pressure Gauge 0-120 - AMP Gauge

Available Options

Oil, Volt, Amp, Temperature and Fuel Gauges are $65.00 each.



*NEW* Fuel Tank Sending Unit M38A1

Attention M38A1 owners.  These are the new high quality 24 Volt Fuel Tank Sending Unit for the M38A1.  These have the correct Douglas metal connector. Comes with Gasket as pictured.

Price $65.00



*NEW* "M" Series Oil Pressure Sending Unit - 24 Volt

These are our new high quality reproduction 24 Volt Oil Pressure Sending Units for the M38, M38A1, M37 and other M Series vehicles.

These Oil Pressure Sending Units are available in 0-60 PSI and 0-120 PSI.

These Oil Pressure Sending Units are matched to the high quality reproduction Oil Pressure Gauges that we also Sell.  These senders have the correct Douglas Metal Shell electrical connection.

Available Options



NEW M38A1 Cowl Battery Box

This is a new high quality reproduction of the M38A1 Cowl Battery Box.  Battery Box Bottom sold separately.

Cowl Battery Box - $136.00

Cowl Battery Box Bottom - $39.00



Battery Tray - M38/M38A1

This is an exact reproduction of both the M38 and M38A1 Battery Trays.

Available Options

Battery Tray - M38 or M38A1 - $75.00 each



M38A1 Battery Box Cover

This is another high quality reproduction from an original die.

Price $95.00

Screws now Available $3.50 each

Battery Box Lid Seal also Available $8.00

Also Available - Late Type M38A1 Battery Box Cover with Strap.



12 Volt 2HN Battery

We are now handing 12 Volt 2HN Batteries for the M38 and M38A1.  These are shipped dry.

Price $210.00

.

.

.

.

.

Battery Box Cover Seal - M38A1

These are our new High Quality Rubber Battery Box Cover Seals for the M38A1.  These seals come in a roll as pictured and can be easily installed.

- Price $8.00 -

*NEW* Glove Box Door Seal - M38

These are our new High Quality Glove Box Door Seals for the M38.  These are Made in the USA.  Copied from an original sample.  These seals can easily be installed using Automotive weather strip adhesive.

- Price $10.00 -



*NEW* Battery Box Cover Seal - M38

These are our new High Quality Rubber Battery Box Cover Seals for the M38.  These are Made in the USA.  Copied from an original sample.  These seals can easily be installed using Automotive weather strip adhesive.

- Price $10.00 -



Battery Box Cowl

This is a high quality reproduction of the Cowl Battery Box.

Box with Bottom $120.00

Bottom separate $45.00



Battery Box Under Hood

This is a high quality reproduction of the Under Hood Battery Box.  This comes complete with bottom tray, battery hold down with bolts, fender mount brackets and decal.  You will find no better box than this one.

Price $245.00

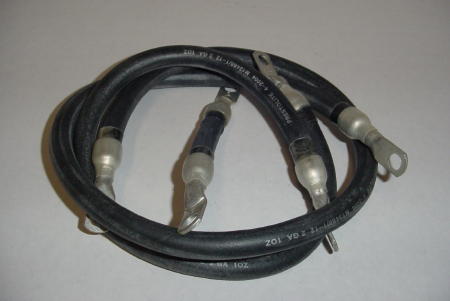

Battery Cable Set - M38/M38A1

Available for M38 and M38A1. These Battery Cable Sets are an exact reproduction with the correct military spec cable.

Available Options

- Battery Cable Set - Price $80.00 -

Negative and Positive Lead Battery Cable Ends available at $5.50 each.

Battery Cable Lead Ends Set

Set contains 2 Positive Lead Ends and 2 Negative Lead Ends.  These are late style cable ends and not exact reproductions.

- Price $22.00 -

Each Lead Available Individually at $5.50 each.

Complete Wiring Harness Kits for M38 or M38A1

These are the best Wiring Harness Kits available today for the M38 and M38A1. These kits are made in house right here in the USA.  They all come numbered with metal tags and each end is shelled with proper Douglas Metal Connectors. Comes with a wiring diagram (use the manual as well).  These kits are available setup for turn signals or stock (no turn signal capability).  We also have the plastic connectors that sandwich between the Douglas Shells sold separately.  These connectors are not available anywhere else.

The Kit includes the following pieces;

Main Wiring Harness
Headlight Wiring Harness
Voltage Regulator Wiring Harness
Black Out Drive Harness
Spider Harness (instrument cluster)
Fuel Sender Wire
Trailer Socket
Horn Ground Wire
Oil Sender Wire (M38 Kits only)

All of the components of this kit are available separately in our catalog.

- Price upon Request -

M38A1 Kit Pictured.

Turn Signal Kit M38-M38A1

This is a reproduction Turn Signal Kit for the M38 and M38A1.  It contains the Turn Signal Switch, Flasher and Turn Signal Harness (as pictured).  This kit is 24 Volt.  This kit in conjunction with our Complete Wiring Harness Kit will make it possible to equip your Jeep with working turn signals.  No actual turn signal lights are included in this kit.

Please call for more information.

- Price - $275.00 -

.

.

.

.

.

.

.

.

.

.

.

Blackout Driving Light Guard

Now Available a new high quality black out drive guard.  This is not the guard that has previously available.  It is an entirely new product.

Blackout Driving Light Guard

- Price $45.00 -

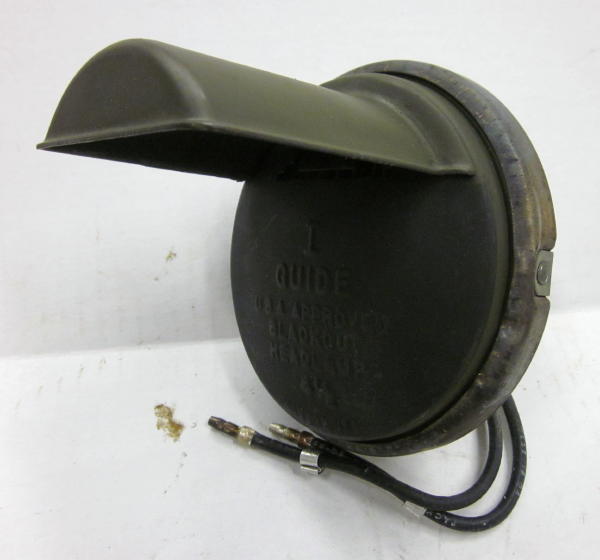

M38-M38A1 24V Black Out Driving Light

This is the light assembly that mounts on the front left fender.  This piece is NOS.

M38-M38A1 24V Black Out Driving Light

- Price $125.00 -

.

.

.

.

Headlight Assembly

This is a complete 24 Volt Headlight Assembly with bulb, housing and trim ring.  This is an original NOS piece.

Price on Request

24 Volt Headlight

These are Wagner U.S. made with correct Metal Douglas Connectors.

24 Volt Headlight - Douglas Metal Connectors - Price $40.00

- - - - - - - - - - - - - - - -

Wagner U.S. Made 24 Volt Headlight also available with Rubber Packard Connectors.

24 Volt Headlight - Packard Rubber Connectors - Price $38.00

M38 Headlight Guard Set

This is the guard that protects the headlight. I had these made out of frustration of not being able to get a good quality guard. These are the best available. I guarantee it. Proudly made in the USA right here in New York.  Comes with hardware.  Not the same product that others sell - please see ours compared to an original.

M38 Headlight Guard  - Price $35.00 per pair

Available individually if you just need one.  Please call to order.

 M38-M38A1 Headlight Dimmer Switch

Headlight Dimmer Switch with Metal Connections.  This switch is for the M38, M38A1 and also fits M37.

 M38-M38A1 Headlight Dimmer Switch

- Price $60.00 -

.

.

.

.

.

Grill Marker Light Assembly - 24 Volt

These are the Marker Lights that are mounted in the grill. They are the real deal, original NOS with metal connector.

Grill Marker Light Assembly 24 Volt

- Price $95.00 each -

Marker Light Conversion Kit

This kit is ideal for converting military marker light lenses into civilian application.

Marker Light Conversion Kit

- Price $12.00 per Kit -

Grill Marker Light Assembly (Adapted) - 24 Volt

These are the Marker Lights that are mounted in the grill. These marker lights are Packard rubber connector lights that we have added an adapter to so that they can work with a Douglas metal connector harness.  These are for the less discerning customer who doesn't need every detail absolutely correct.  If your harness is a Packard connector harness then to use these all you have to do is remove the adapter.

Grill Marker Light Assembly (Adapted) - 24 Volt

- Price - $60.00 each (sold individually) -

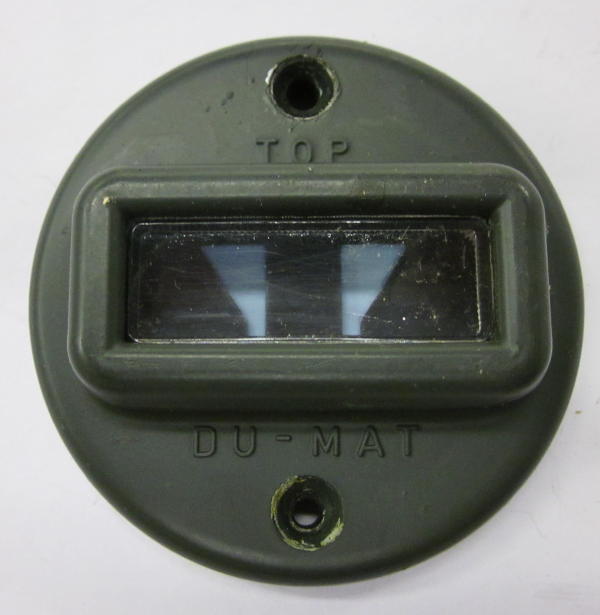

M38/M38A1 Grill Marker Light Cover

These covers are always painted over or missing their lenses. Replace them today.

M38/M38A1 Grill Marker Light Cover

 - Price $30.00 each -

M38-M38A1 Master Disconnect Switch

This switch was not stock on the M38-M38A1 but can be retrofitted to fit any place, helps eliminate dead batteries.  This is a high quality Mil Spec switch.

Master Disconnect Switch - Price $45.00



Voltage Regulator Mounting Cushion Ground Strap - M38/M38A1

Voltage Regulator Mounting Cushion Ground Strap - Price $6.50 each

Engine to Chassis Ground Strap - M38/M38A1

Engine to Chassis Ground Strap - M38/M38A1 - Price $10.00

.

.

.

.

NOS Starter Pedal M38/M38A1

This is the pedal that is mounted to the floor board which pushes the starter.

Available Options



-NOS Starter Pedal  M38/M38A1 - $40.00-

Rubber Starter Pedal "Pad" is also available for $10.00

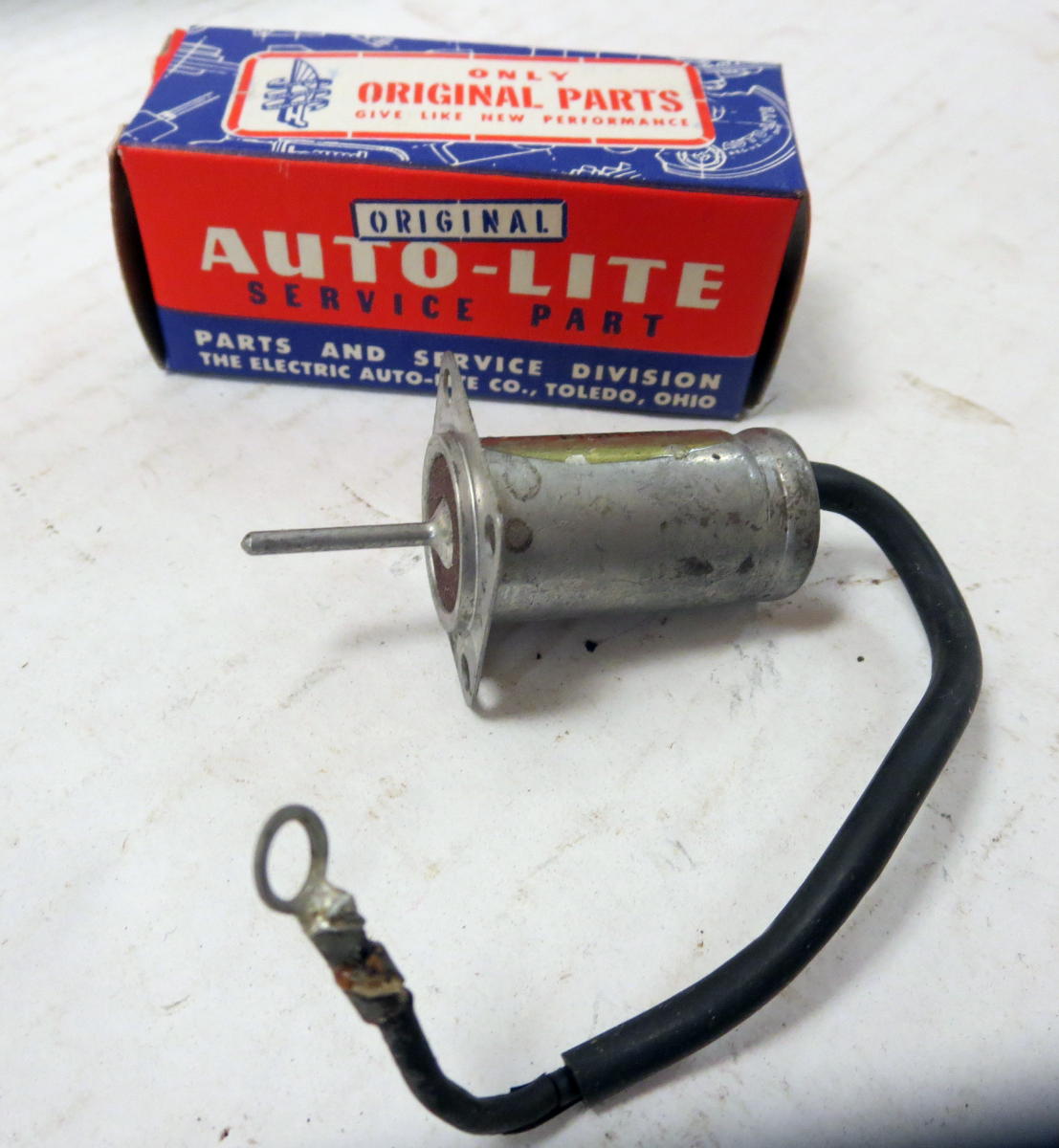

Ignition Filter w/ Cable - Early M38

This is the firewall mounted filter used on the early model M38.  It comes with the cable and both pieces are NOS.

Ignition Filter w/ Cable - Early M38

Price $65.00

.

.

.

Ignition Switch M38-M38A1

These are NOS Ignition Switches that have been converted to use Douglas Connectors.  Available with Lever or Without.  On-Off Data Plate also available (pictured below)

AVAILABLE OPTIONS



- Price - $45.00 With Lever -

- Price - $40.00 Without Lever -



On / Off Ignition Switch Data Plate - M38/M38A1

This is a high quality reproduction of the Ignition Switch On/Off Data Plate.

- Price $10.00 -

.

.

.

.

.

.

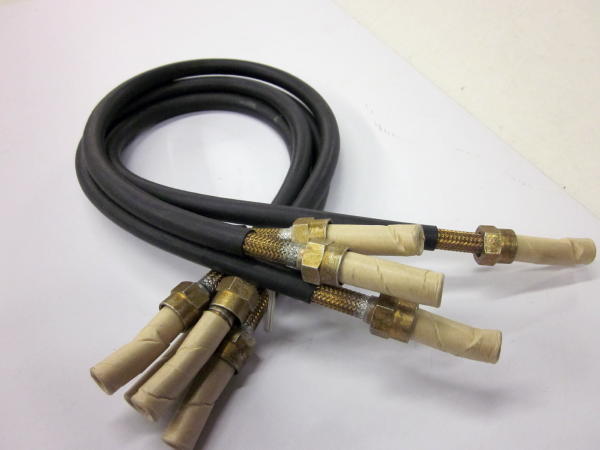

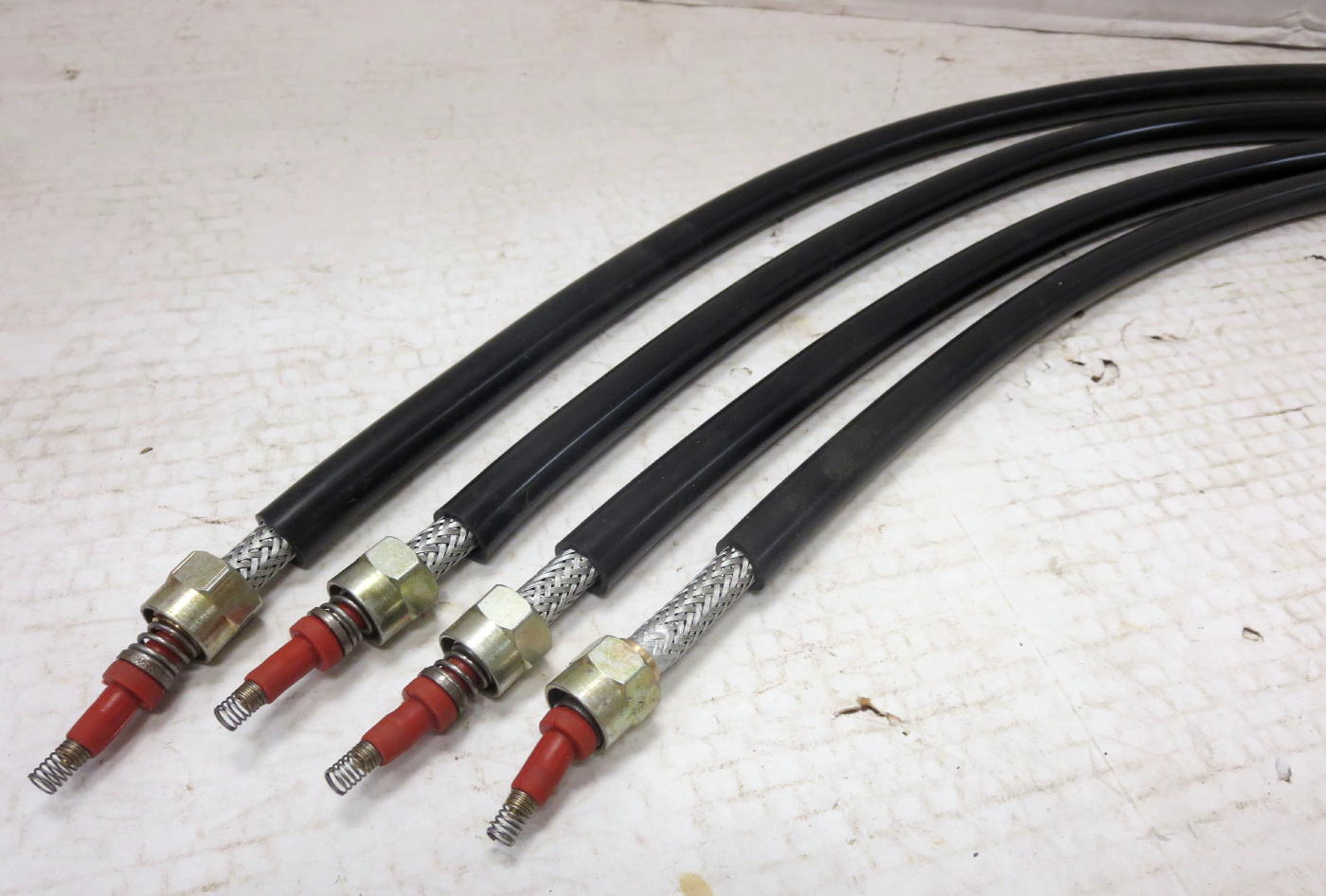

Ignition Wire Set M38A1

These are exact reproductions of the Ignition Wire Set used on the M38A1.  Made in the USA from the same company that makes them for the Government.  These are not the imported knockoffs that others sell cheaply.

-Price - $190.00 -

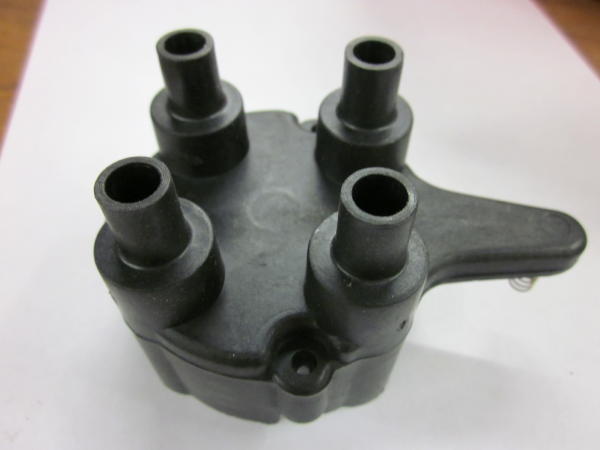

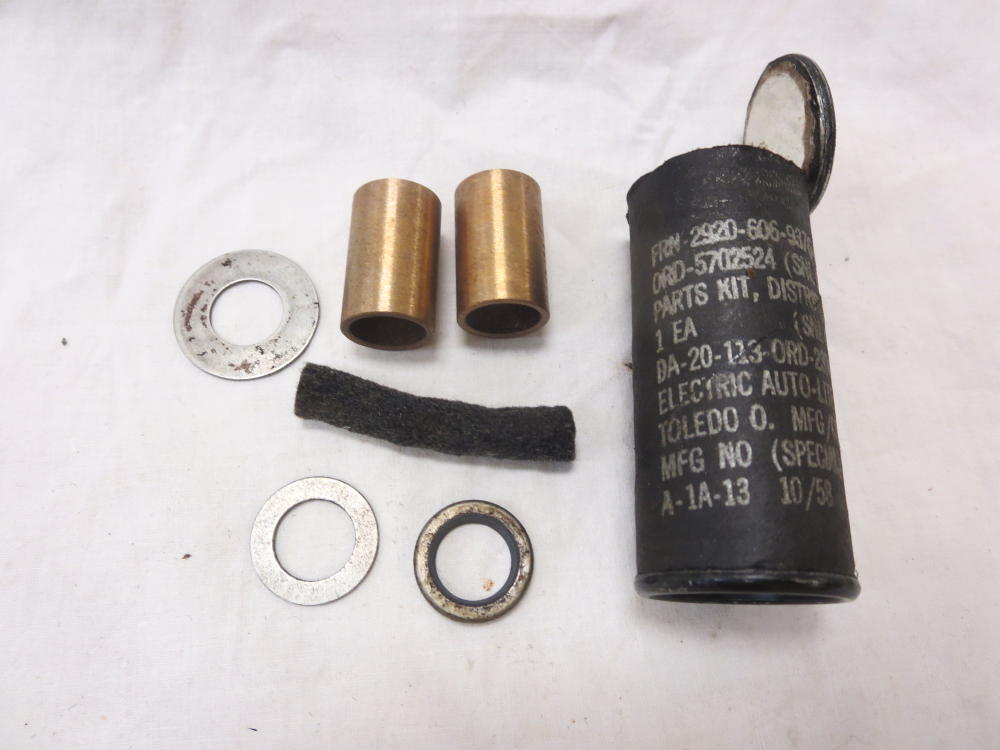

24 Volt Distributors - New - M38 - M38A1

These are NOS Waterproof Distributors Complete with 24 Volt Coil - Price on Request.

Also Available - Rebuilt - Price on Request

.

.

.

.

M38/M38A1/M37 Timing Adapter

This is a very useful tool.  It is used to go between the spark plug and the ignition wire so that you may attach a timing light for checking the timing.  This is U.S. Made.

M38/M38A1/M37 Timing Adapter

- Price $45.00 -

Slave Cable Bracket - M38

This is an exact reproduction copied from an original sample.

- Price $20.00 -

Also Available - Slave Cable - NOS for $150.00

Amp Gauge 24 Volt

For years I have struggled with where to find amp gauges, and now I have a solution, this is a surplus A.C. gauge but it has conventional type connectors on the back of it. So I made an adapter for them so you can connect your Douglas connector to it. From the front of the dash you can not tell the difference.

- Price $50.00 -

.

.

.

.

.

.

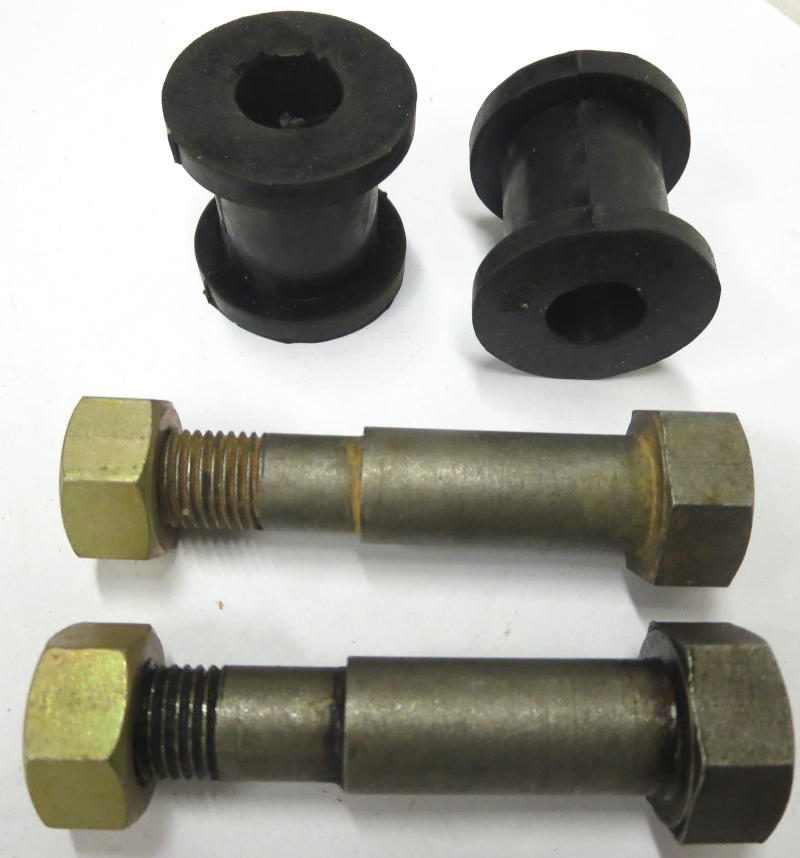

Generator Support Bolt and Bushing Kit- M38/M38A1

These are the shouldered bolts and rubber bushings that mount the Generator to the Engine.  The Bolts are NOS.  The Rubber Bushings are a high quality reproduction.

Available Options



- Generator Support Bolt and Bushing Kit - 2 Bolts w/ Nuts and 2 Bushings - Price - $30.00 -

- Generator Bolt w/ Nut - Price - $10.00 each -

- Generator Bushing - Price - $5.00 each -

Don't see what you are looking for?

Try checking our M38-M38A1 Electrical Parts Listing.  If something does not have a button to click for ordering then give us a call or send us an email.

Part #

Part Description (Electrical)

Price



GROUP 6 ELECTRICAL



WO-806410

Harness, main wiring

$300.00 R.

WO-118106

Harness, spider, instrument cluster

$35.00 NOS

WO-806417

Harness, voltage regulator

$165.00 R.

WO-806413

Harness, fuel tank sender

$35.00 R.

WO-811900

Receptacle, trailer plug W/harness

$55.00 NOS

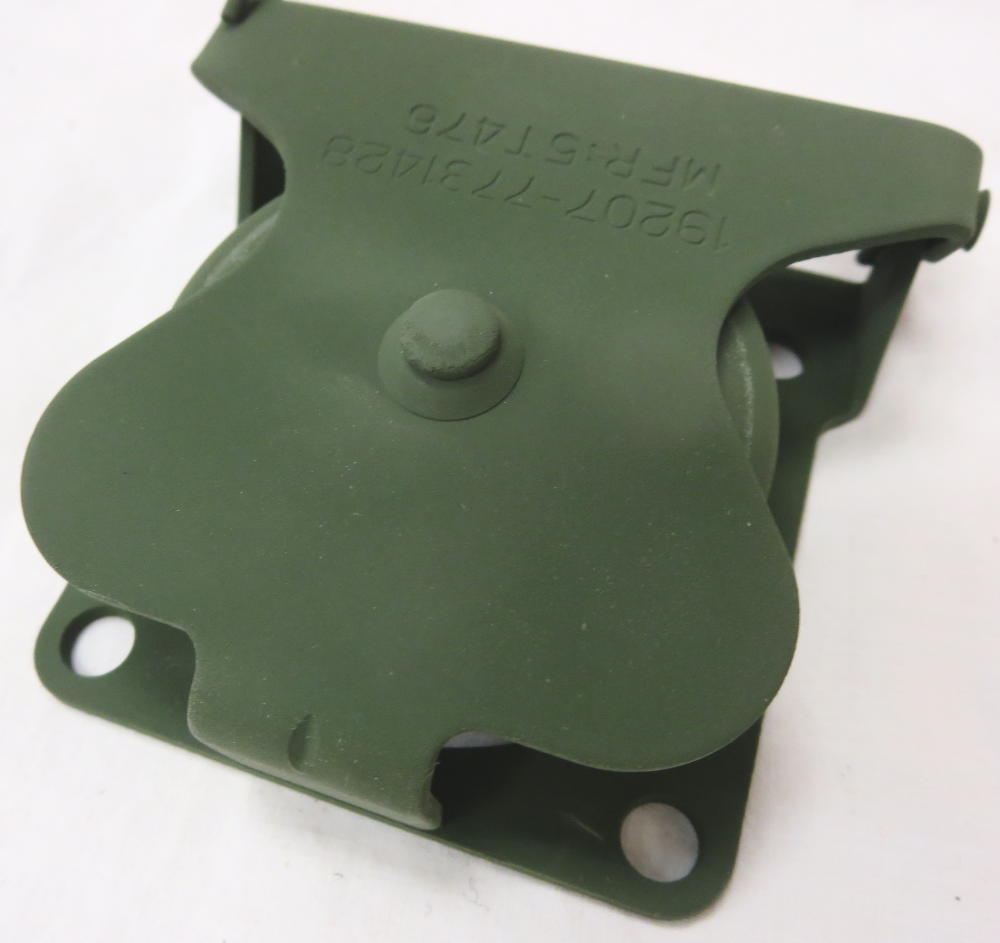

WO-800391

Cover, receptacle trailer plug

$25.00 NOS



Harness headlight

$135.00 R.



Harness, B.O. drive light

$30.00 R.



Complete harness M38 (best harness made w/metal connectors, number tags, turn signal wires included at no extra charge)

$P.O.R. R.



Complete harness M38A1 (best harness made w/metal connectors, number tags, turn signal wires included at no extra charge)

$P.O.R. R.

PICTURE Strap, ground, engine to chassis $10.00 R.


Battery cable set

$80.00 R.



Battery cable end NEG or POS

$5.50 NOS


Battery 12V 2HN

$210.00 R.

PICTURE Battery Tray U.S. Made - M38 and M38A1 Trays Available $75.00 R.

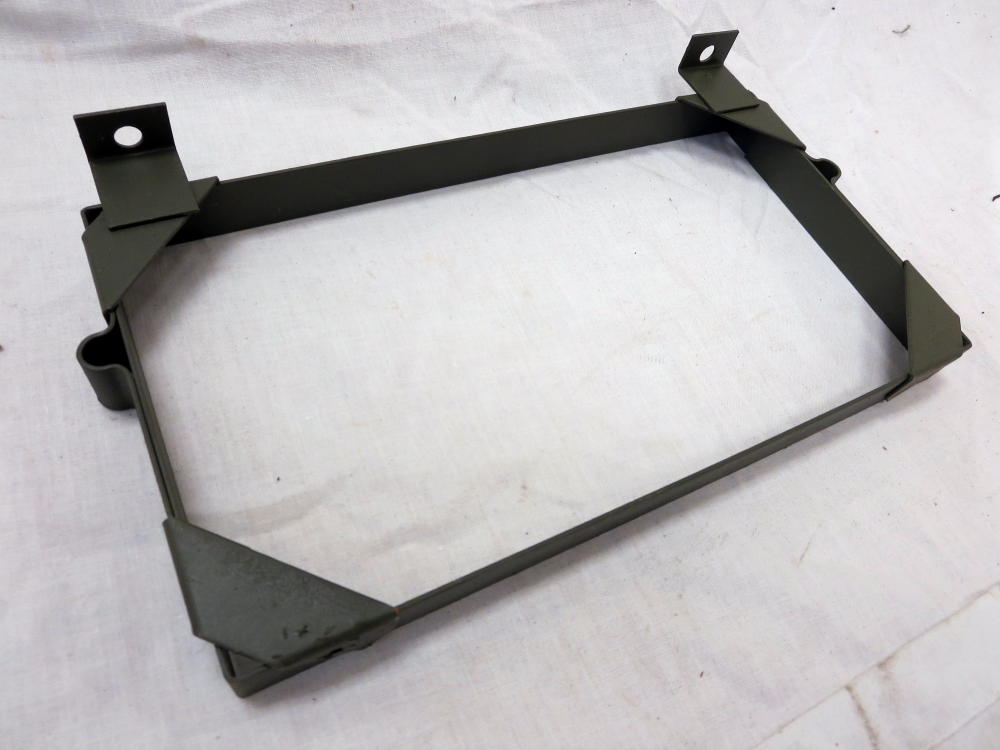

WO-800013

Frame, battery hold down U.S. Made - M38

$35.00 R.

WO-807111

Frame, battery hold down U.S. Made - M38A1

$35.00 R.

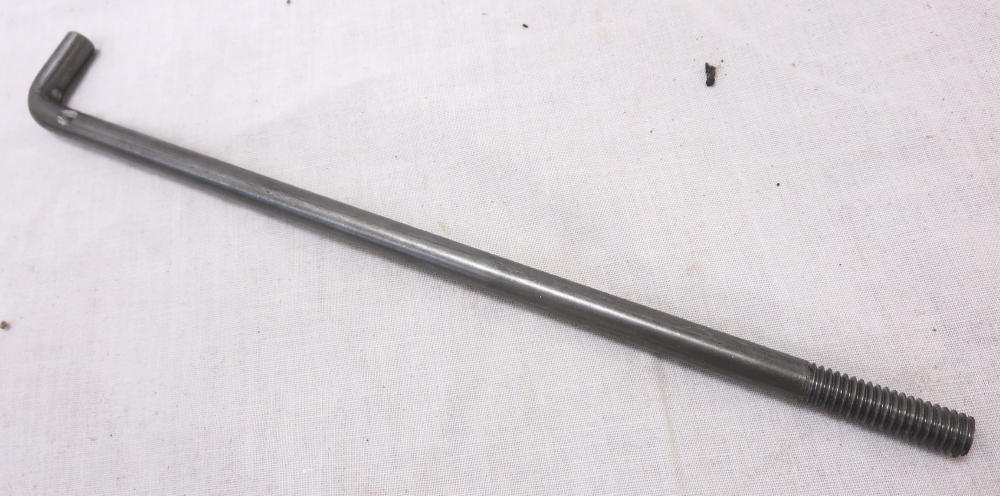

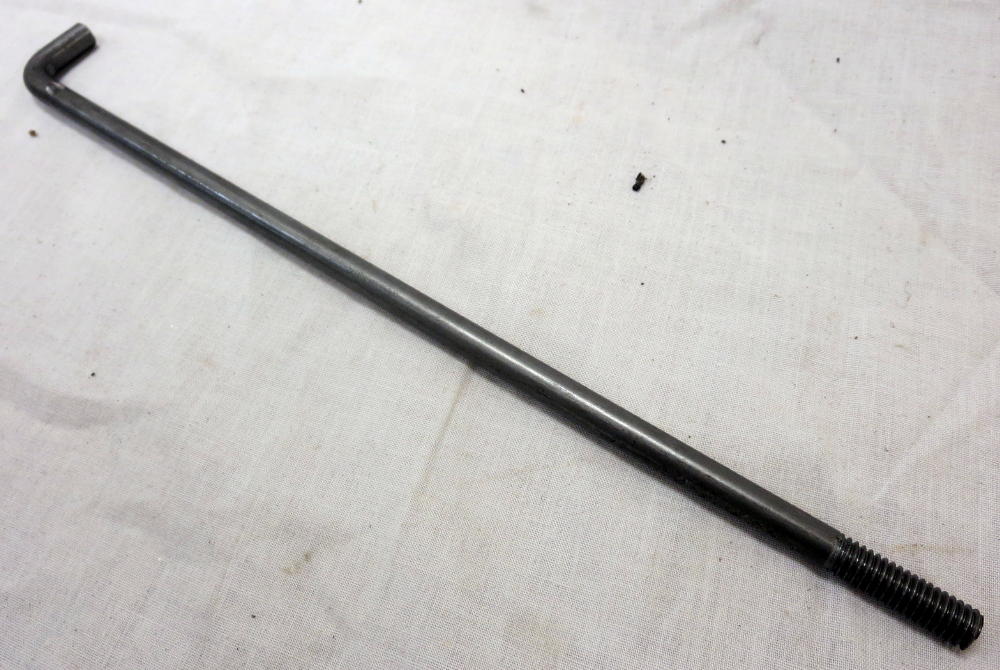

WO-640193

Bolt, battery hold down M38-M38A1

$8.00 R.

WO-800020

Bolt, battery hold down (long M38 only)

$8.00 R.

WO-800005

Battery box, under hood W/ cover & grommets

$245.00 R.

WO-673438

Bracket, battery box to fender M38

$6.00 R.

WO-673423

Box, battery cowl M38

$120.00 R.

WO-673496

Bottom, battery box cowl M38

$45.00 R.

PICTURE Box, Battery Cowl - M38A1 $136.00 R.

WO-684732

Lid, battery box, cowl M38A1  Early or Late

$95.00 R.

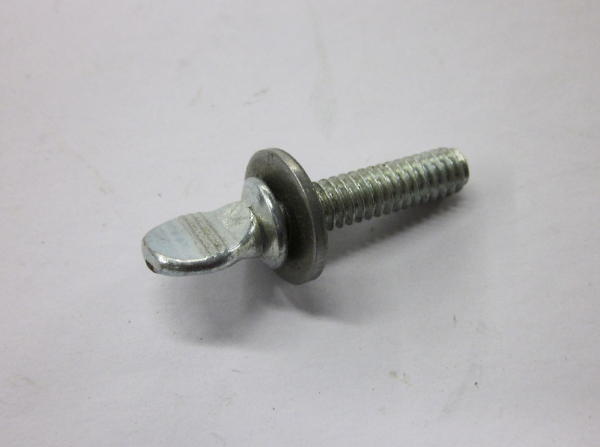

PICTURE Screw, battery box lid - M38A1 $3.50 R.


Bottom, battery box cowl M38A1

$40.00 R.

WO-680479

Tube, drain, battery tray, long M38A1

$20.00 NOS

WO-145525

Clip, harness to frame M38-M38A1

$2.00 R.

WO-806409

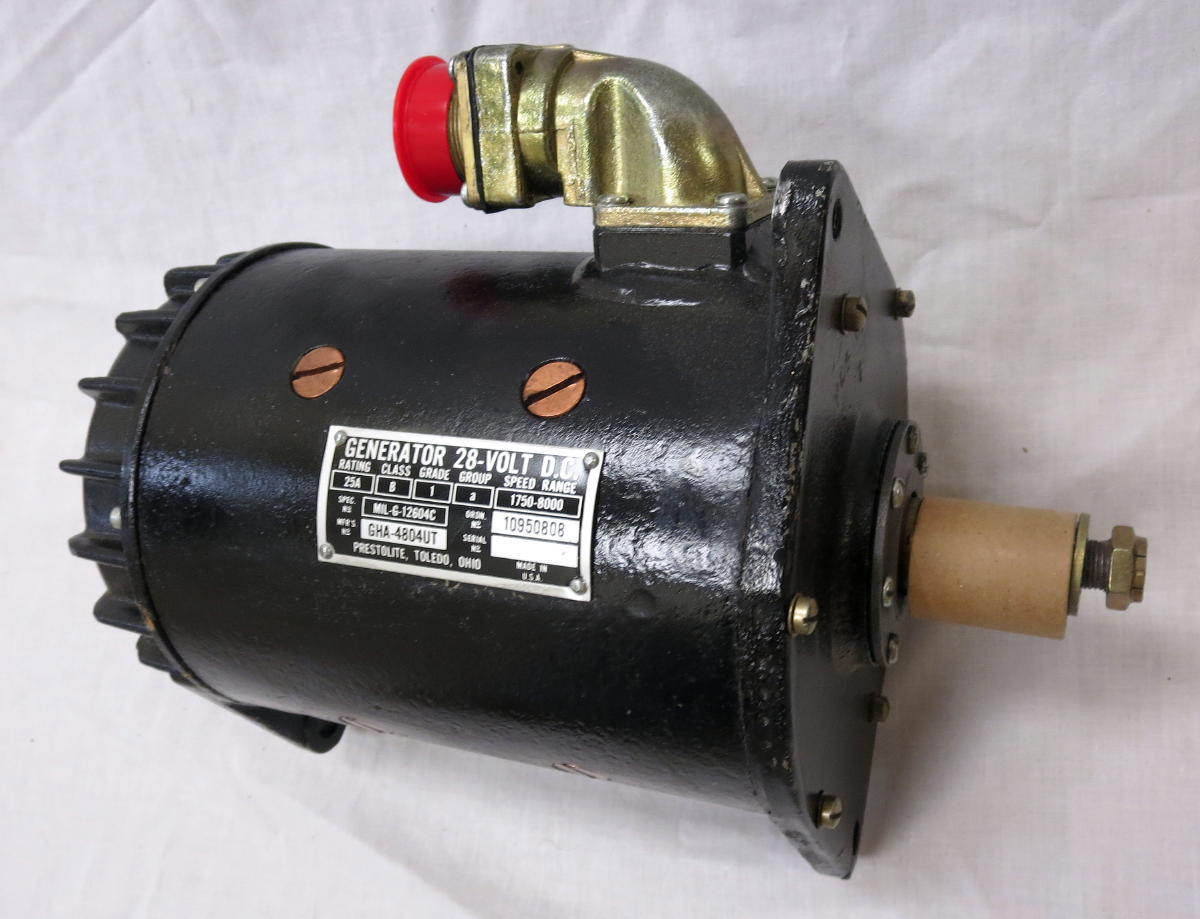

Cable, gen to reg

$POR.NOS

WO-800451

Switch, ignition assembly w/ metal connectors, no lever

$40.00 NOS

WO-804630

Plate, On/Off, data ignition switch

$10.00 R.

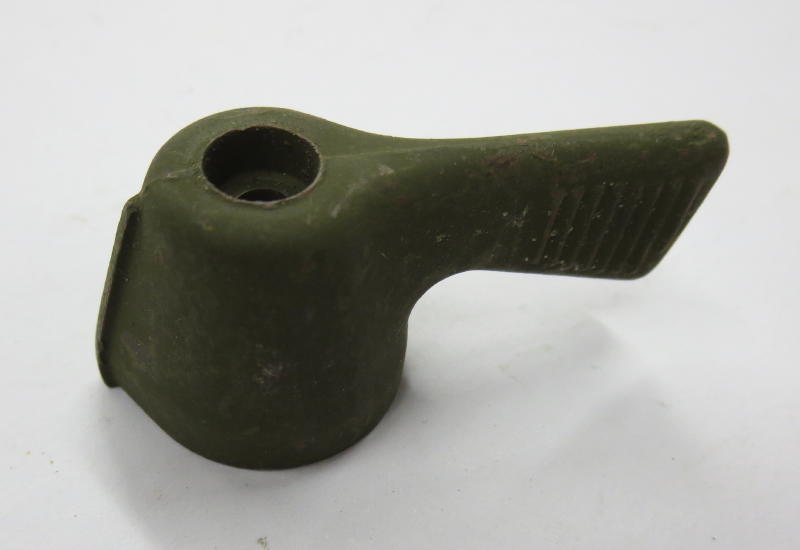

WO-800452

Lever, ignition switch

$6.00 NOS

WO-804784

Switch, stop light, on master cyl

$45.00 R.

WO-649726

Switch, headlight dimmer

$60.00 R.

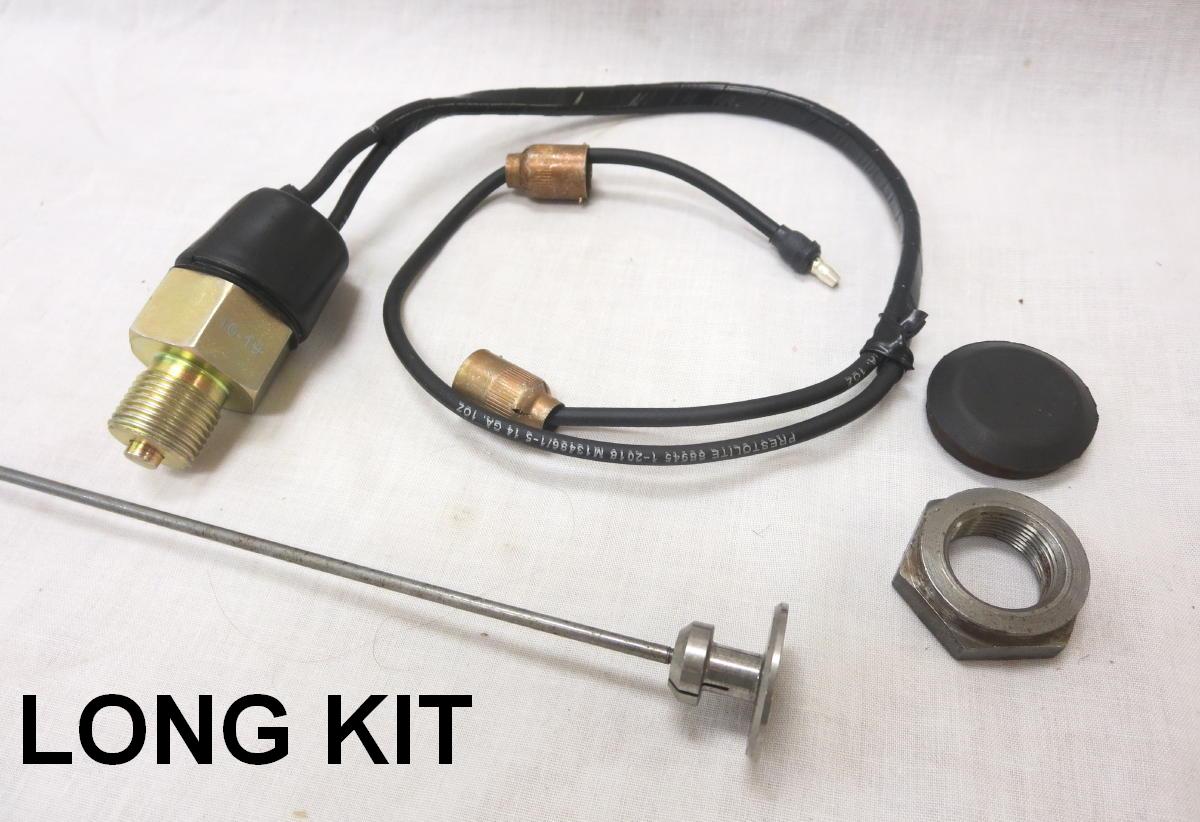

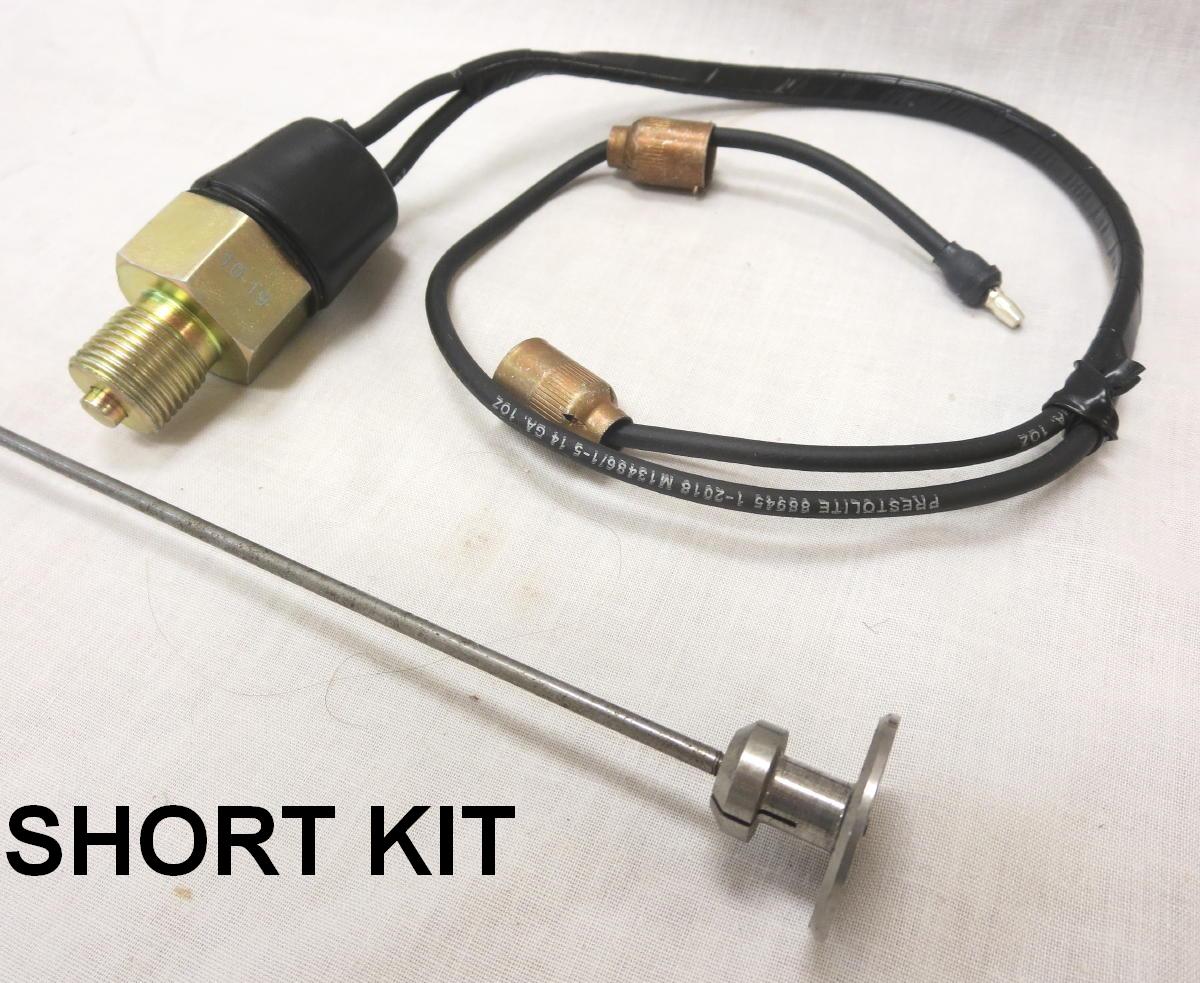

WO-800299

Switch, horn W/harness M38

$85.00 R.

WO-806412

Switch, horn W/harness M38A1

$85.00 R.

WO-806393

Washer, horn switch push rod M38-M38A1

$22.00 R.

WO-807112

Rod, horn switch M38-M38A1

$25.00 R.



Horn, 24V w/ metal connector

$POR.NOS.



Horn, 24V w/ rubber connector

$P.O.R. U.

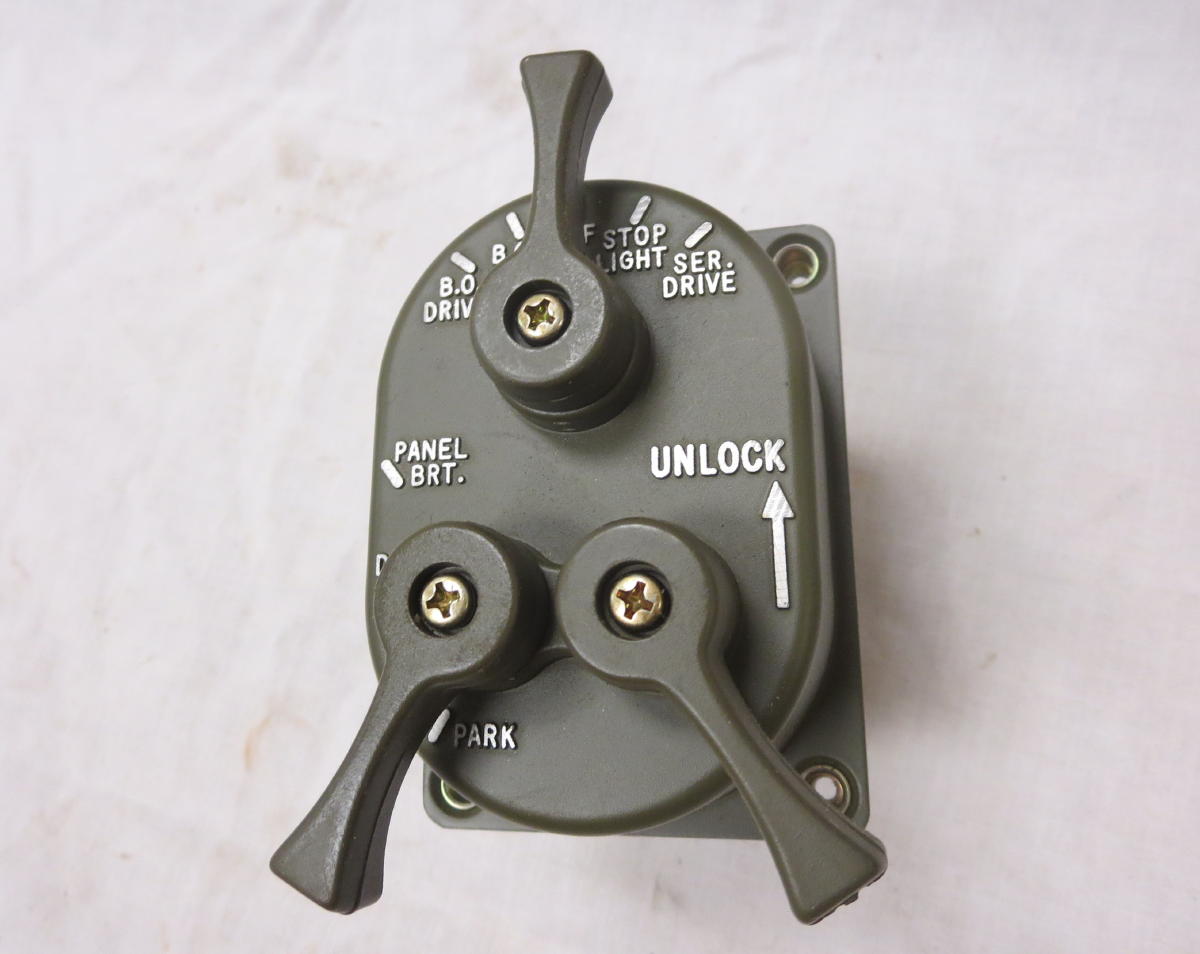

WO-805400

Switch, light assembly 24v

$75.00 R.

WO-801797

Pedal, starter switch

$40.00 NOS

WO-7539630

Pad, starter pedal

$10.00 NOS

WO-118111

Light, dash assembly

$45.00 NOS

WO-118111-KIT

Housing, high beam indicator, back half w/ wire (for repair)

$30.00 NOS

WO-118113

Light, headlight beam indicator

$45.00 NOS

WO-118925

Gasket, rubber, headlight to outer door

$15.00 NOS

WO-118472

Door, headlight ring w/gasket

$40.00 NOS

WO-119088

Lamp unit, sealed beam 24V W/metal connector - Wagner U.S. Made

$40.00 R.

WO-119088

Lamp unit, sealed beam 24V W/rubber connector -  Wagner U.S. Made

$38.00 R.

Lamp unit, sealed beam 12 Volt - U.S. Made $15.00 R.

WO-118646

Housing, headlamp assembly w/door - Bulb complete

$POR. NOS.

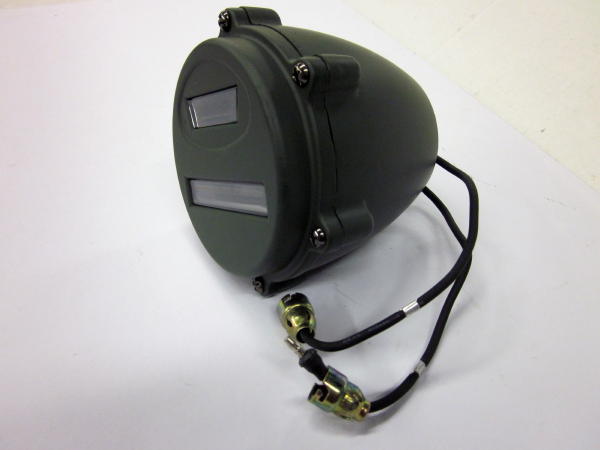

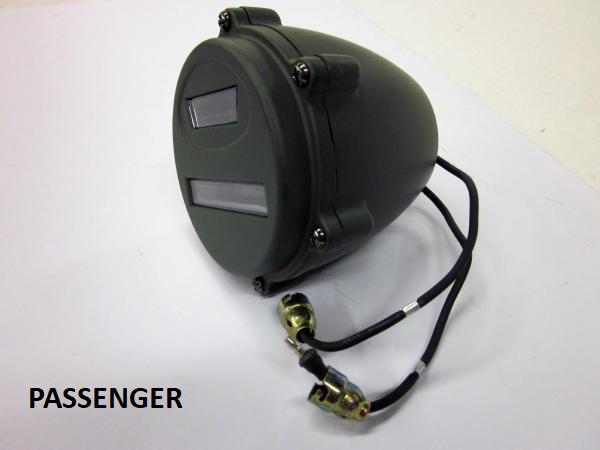

WO-802432

Light, B.O. stop & tail, RH 24v

$75.00 NOS

WO-802432

Light, B.O. stop & tail, RH 24v

$65.00 R.

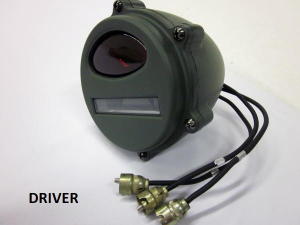

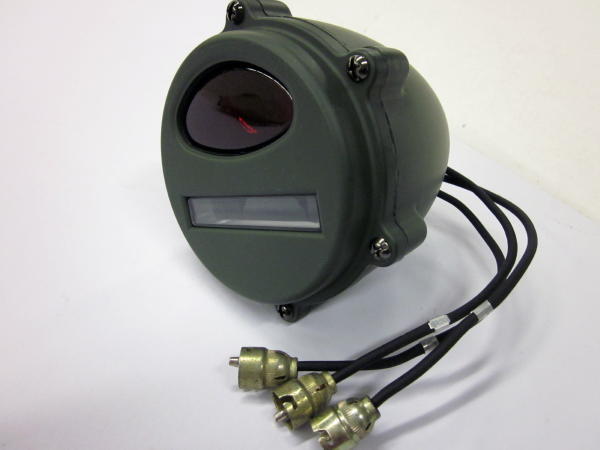

WO-802431

Light, serv. Stop & tail, LH 24v

$75.00 NOS

WO-802431

Light, serv. Stop & tail, LH 24v

$65.00 R.

WO-118454

Kit, repair, RT side tail light assembly

$25.00 NOS

WO-118447

Kit, repair, LH side tail light assembly

$POR. NOS

Door, tail light, RT $25.00 NOS

WO-802428

Light, B.O. driving, assembly 24v on fender

$125.00 NOS

WO-800390

Bracket, B.O. drive light fender

$45.00 R.

WO-118457

Lamp unit, B.O. drive 24v

$35.00 NOS

WO-649692

Light, blackout marker 24v in grill

$95.00 NOS

WO-118153

Door, lens, blackout marker

$30.00 NOS

WO-118160

Gasket, blackout marker door

$4.00 NOS

WO-118155

Connector (blackout marker inside repair kit)

$P.O.R.N.O.S

ORANGE-MRK Kit, conversion, marker light orange lens $12.00 R.

WO-806675

Bracket, horn mounting M38A1

$10.00 NOS

WO-664986

Bracket, horn mounting M38

$15.00 NOS

WO-118796

Regulator, voltage 24v

$P.O.R.

WO-118768

Mt, voltage regulator hex nut

$10.00 NOS

PICTURE Strap, ground, voltage regulator cushion $6.50 R.

WO-118787

Base, voltage regulator

$50.00 NOS

WO-800472

Connector, receptacle, slave cable

$POR. NOS.

WO-674791

Bracket, slave cable M38

$20.00 R.

WO-800212

Sending unit temp M38-M38A1

$65.00 R.

WO-800201

Sender unit fuel tank M38

$85.00 R.

WO-801284

Sending unit fuel tank M38A1

$65.00 R.

WO-648927

Gasket, fuel tank sending unit

$3.00 R.

WO-118717

Cap, distributor inner

$24.00 R.

WO-118879

Rotor

$7.00 R.

WO-A-1687

Contact set, (points)

$10.00 R.

WO-118720

Condenser

$5.00 R.

WO-118733

Cover, outer distributor

$35.00 NOS

WO-118733

Cover, outer distributor w/ cap NOS

$75.00 NOS

WO-118734 Washer, outer distributor cap seal $1.00 NOS

WO-118712

Coil, 24V

$45.00 R.

WO-118712

Coil, 24V Autolite

$POR.NOS

WO-806330

Distributor, new

$POR NOS

WO-806330

Distributor, government rebuilt

$POR.NOS



Lead, power into distributor

$25.00 R.

WO-120202

Base, distributor w/ bearing

$50.00 NOS

WO-118714

Plate, breaker assembly complete w/ points and condenser

$55.00 NOS

Dist-kit

Kit, small parts to rebuilt distributor

$35.00 NOS

WO-119055

Receptacle, distributor, power in

$15.00 NOS

WO-119058

Capacitor, distributor, power in

$35.00 NOS

WO-801656

Plug, spark, waterproof 24v

$16.00 R.

WO-801112

Cable set, dist to spark plugs U.S. Made M38

$145.00 NOS

WO-806262

Cable set, dist to spark plugs U.S. Made M38A1

$190.00 R.

WO-573001

Grommet, connector, 3-wire, head & B.O. lights

$3.50 NOS



Bulb 24v for B.O. tail & marker

$1.50 R.

Bulb 24v for Dash $1.50 R.

WO-800393

Fastener, cluster to dash

$4.00 NOS

WO-7526590

Stud, cluster to dash

$4.00 NOS

WO-119085

Gauge, oil pressure, 24v 0-60 metal connectors

$POR.NOS

WO-808445

Gauge, oil pressure, 24v 0-120 metal connectors

$POR.NOS

WO-808445 Gauge, oil pressure, 24v 0-120 metal connector, High Quality reproduction $65.00 R.

WO-119086

Gauge, temp, 24v metal connectors

$POR.NOS

WO-119086   Gauge, temp, 24v metal connectors, High Quality reproduction $65.00 R.

WO-808519

Gauge, fuel, 24v metal connectors

$POR.NOS

WO-808519 Gauge, fuel, 24v metal connector, High Quality reproduction $65.00 R.
VOLT-GAUGE Gauge, volt, 24v metal connector, High Quality reproduction $65.00 R.

WO-118102

Gauge, ammeter 24v

$50.00 R.

WO-801749

Bracket, oil sender M38 M38A1

$20.00 NOS



Sender, oil pressure (0-60) (0-120)

$POR.NOS

WO-800208

Speedometer, assembly

$P.O.R.N.O.S

WO-800208

Speedometer, assembly

$95.00 R.

WO-804376

Starters, assembly 24V New and rebuilt

$POR.NOS L.

WO-119636

Armature, starter (early MBP4301UT) M38

$49.00 NOS

WO-118834

Armature, starter (late MCZ4001UT) - M38-M38A1

$115.00 NOS

  Brush set, starter (early MBP4301UT) M38 $22.00 NOS

WO-119634

Plate, w/ brushes & spring (late type)

$22.00 NOS

WO-119633

Head, commutator end (late type)

$12.00 NOS

WO-119632

Starter Body, frame with field coil (late type)

$65.00 NOS

8333759

Starter Field Coil Set (early MBP4301UT) M38

$55.00 NOS

8333758

Starter Field Coil Set (late MCZ4001UT) - M38 & M38A1

$45.00 NOS

WO-119637

Switch, starter (late type)

$POR.NOS.



Kit, starter switch rebuilt (for early MBP type)

$35.00 NOS

WO-118645

Clutch, drive, starter (early type)

$POR.NOS

WO-118893

Clutch, drive, starter (late type)

$POR.NOS

WO-649073 Bracket, support, starter to engine block - Early M38 $10.00 R.
WO-804362 Bracket, support, starter to engine block - Late M38 & M38A1 $10.00 R.
DATA-START Data Plate, starter (autolite) $10.00 R.

WO-117898

Shaft, pinion drive w/ gear (early type)

$45.00 NOS

WO-118958

Generator, assembly

$P.O.R.

WO-649817

Bushing, rubber generator support

$6.00 R.

WO-649818

Bolt, generator support

$9.00 NOS

WO-649816

Brt, generator support M38-M38A1

$35.00 NOS

WO-801247

Brace, generator, adj, belt tension

$25.00 NOS

WO-118824

Pulley, drive

$45.00 NOS

WO-7374852

Brush set, generator (Autolite)

$15.00 NOS

WO-118803

Frame, with field Coil (generator body) Autolite

$P.O.R.N.O.S

DATA-GEN Data plate, generator (autolite) $10.00 R.

WO-573010

Shell, elec. Connector male single wire

$1.50 NOS

WO-573011

Shell, elec. Connector female single wire

$1.50 R.

WO-573009

Shell, elec. Connector male large

$2.00 NOS

WO-573008

Shell, elec. Connector female double wire large

$2.00 NOS

WO-572999

Bushing, for grommet

$0.50 NOS

WO-573005

Grommet, rubber

$0.75 R.

PICTURE Connector, wire, bullet type $0.75 R.
Wire, original type - This is the correct rubber wire - Sold by the foot ($1.50 per foot) $1.50 R.

WO-573000

Connector, plastic one wire to one wire

$2.50 NOS



Connector, plastic one wire to two wire (only available with purchase of wiring harness kit)

$3.00 NOS


Filter, dist. fire wall mounted early - M38

$45.00 NOS


Cable, filter to distributor early M38

$20.00 NOS

PICTURE Switch, Master Disconnect $45.00 NOS
Switch, Push Button (suitable for siren or any other accessory) $15.00



END



Jeep Parts | Truck Parts | Jeeps | Oddlot | Manuals  | About Us | Links | Order Info | Home
