CJ3B-CJ5 GROUP 12 BRAKE

CJ3B-CJ5

GROUP 12 BRAKE

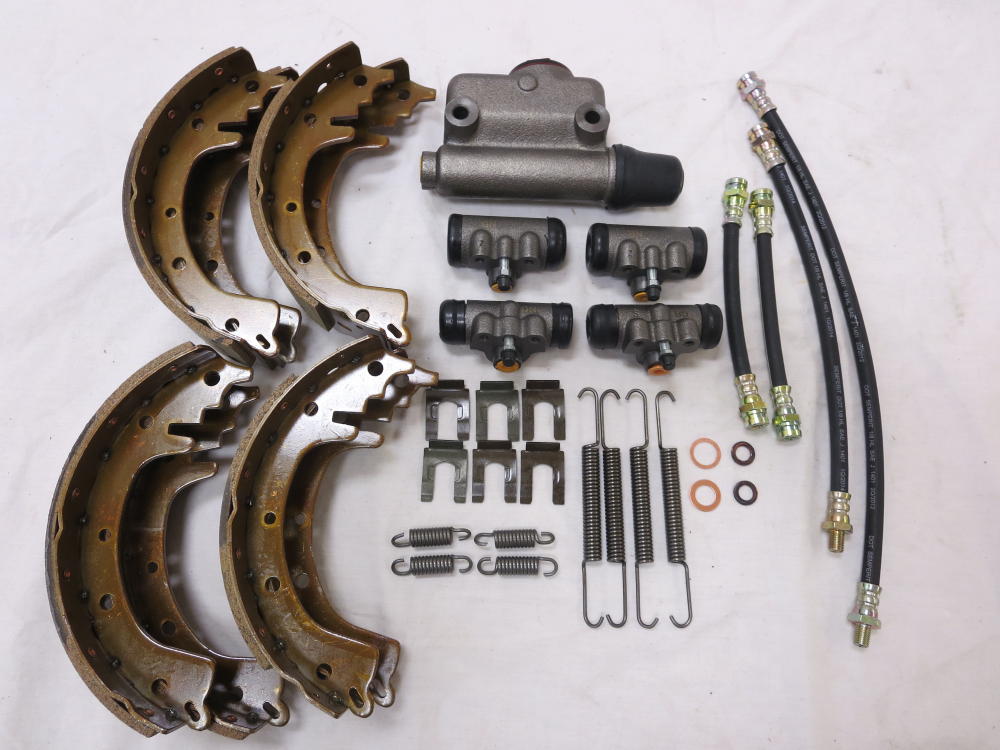

Master Brake Kit CJ3B-CJ5

- For 9 Inch Brakes -

This is a master brake kit for the M38A1 as well as the CJ3B and CJ5 (only with the 4 cylinder flat head engine).  It contains the Master Brake Cylinder, four wheel cylinders, brake shoes for all four wheels, all four rubber brake hose, the  correct style hose clips, copper washers for the master cylinder and brake hoses and eight brake shoe return springs.

- Price - $345.00 -

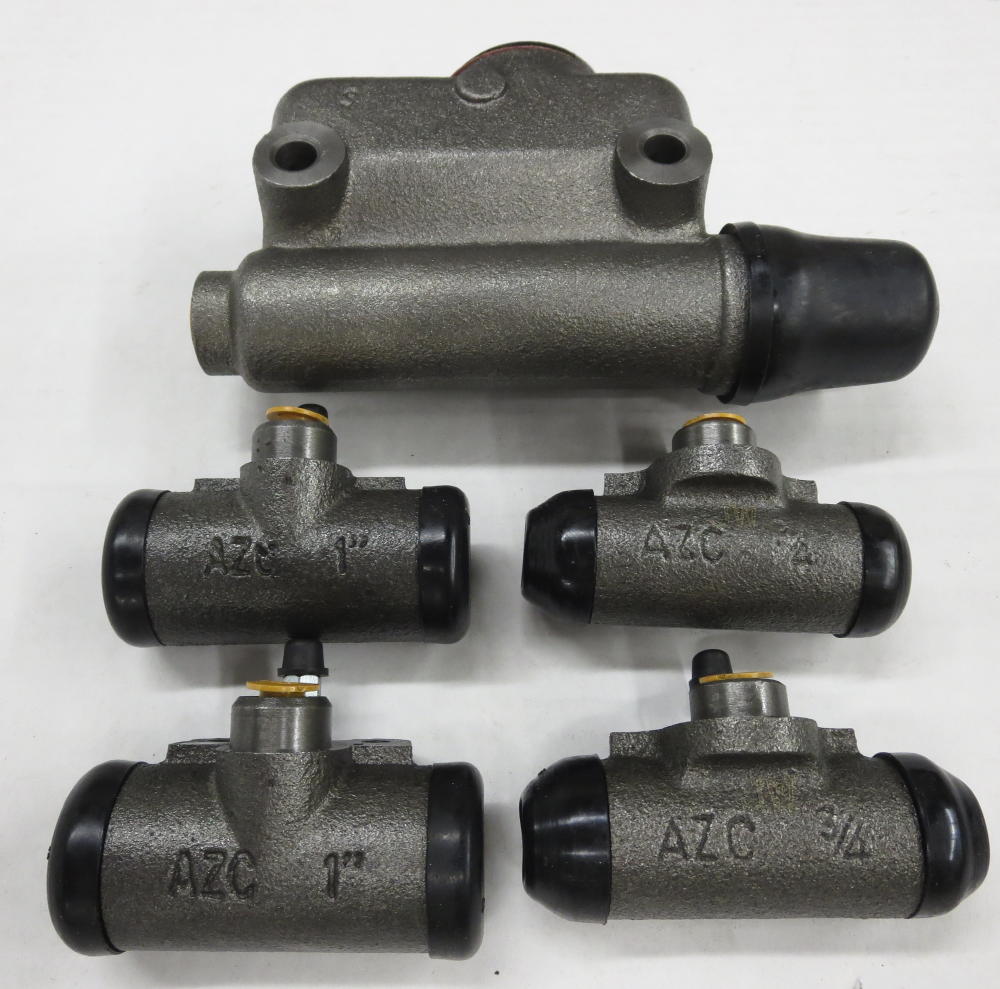

Master Cylinder and Wheel Cylinder Kit CJ3B-CJ5

These are reproduction Master Cylinder and Wheel Cylinder Kits for the M38A1.  Each kit contains one Master Cylinder and four Wheel Cylinders (2 front and 2 rear) for the M38A1 Military Jeep as well as the CJ3B and CJ5 (only with the 4 cylinder flat head engine).

- Price - $155.00 -

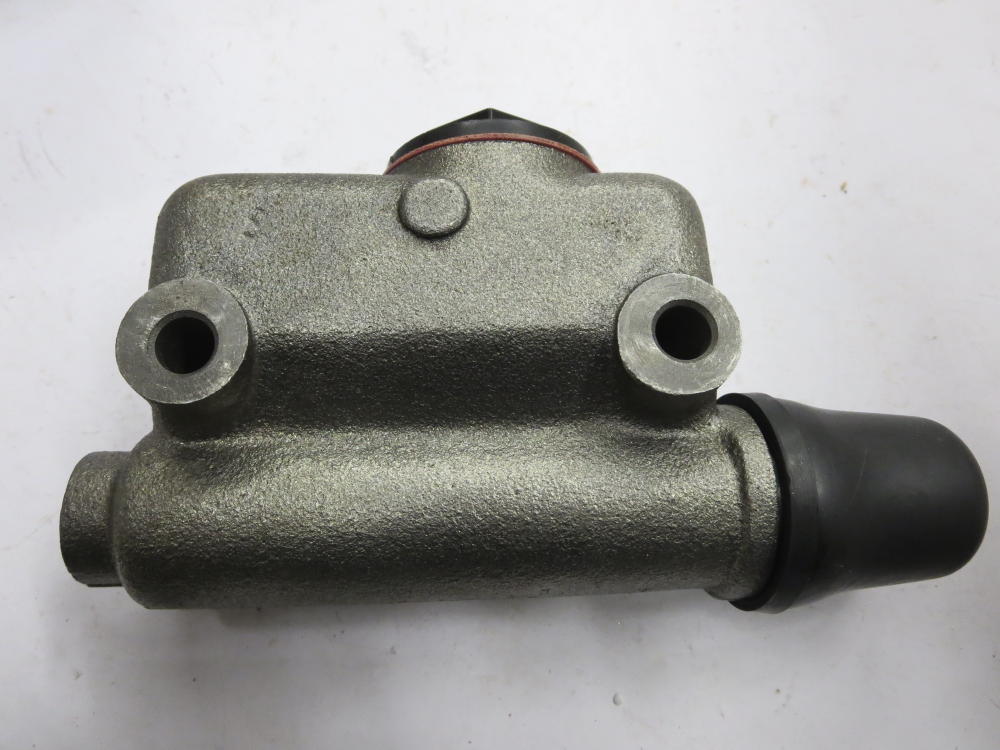

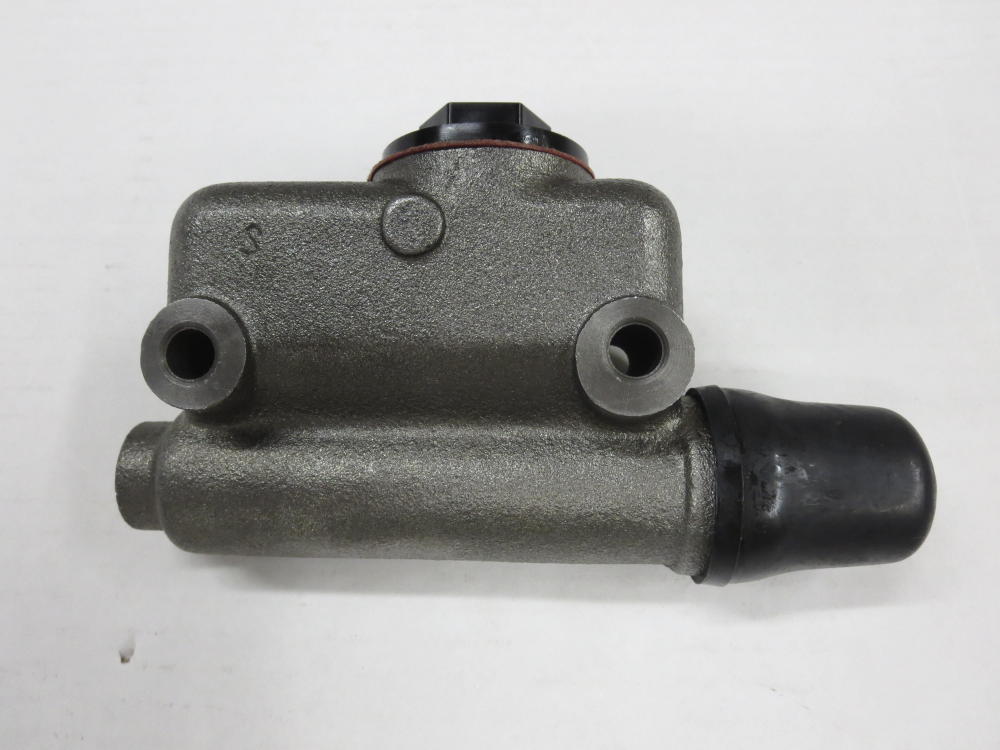

Master Cylinder - CJ3B-CJ5

These are reproduction Master Cylinders for the M38 and M38A1.  Also fits CJ3A, CJ3B and CJ5.

- Price - $60.00 -

.

.

.

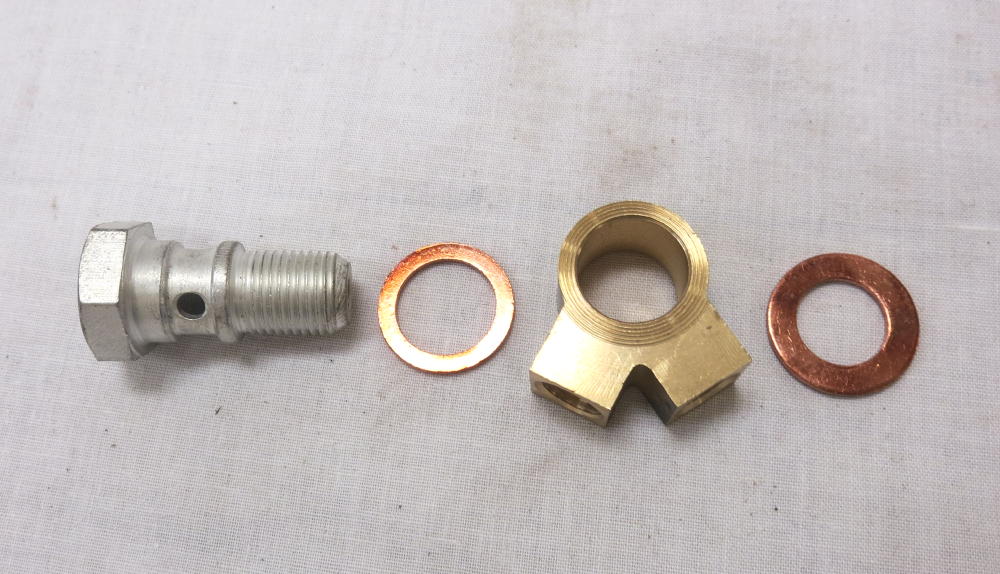

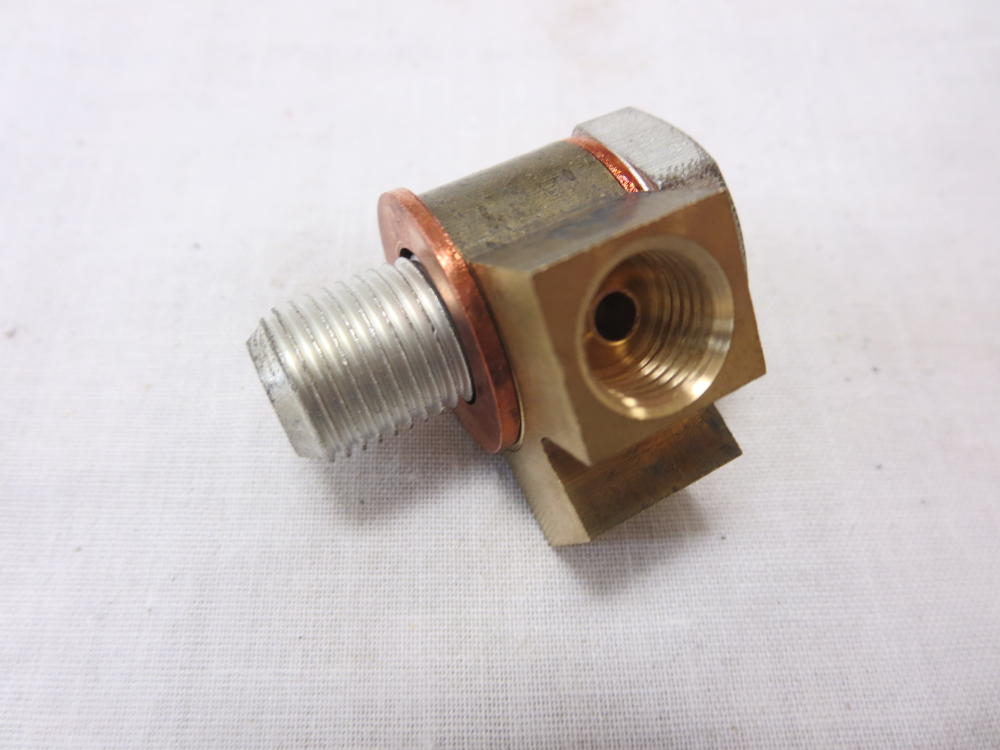

Master Cylinder Bolt Kit

This a Master Cylinder Bolt Kit.  This kit includes the Bolt that screws into the rear of the Master Cylinder, the Master Cylinder Fitting which connects to the Brake Lines and the two different sized washers for joining the Master Cylinder Bolt to the Master Cylinder Fitting.  Fits MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $19.00 -



Wheel Cylinder Kit  CJ3B-CJ5

These are sets of reproduction Wheel Cylinders for the M38A1.  This kit contains two front and two rear wheel cylinders.  Also fits CJ3B and CJ5.

- Price - $100.00

Individual Wheel Cylinders available at $25.00 each.  Please call to order.

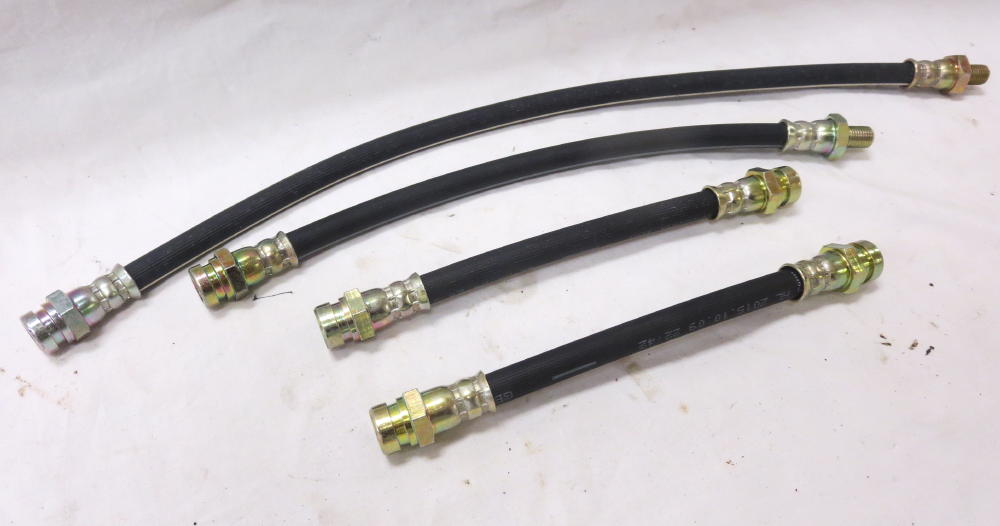

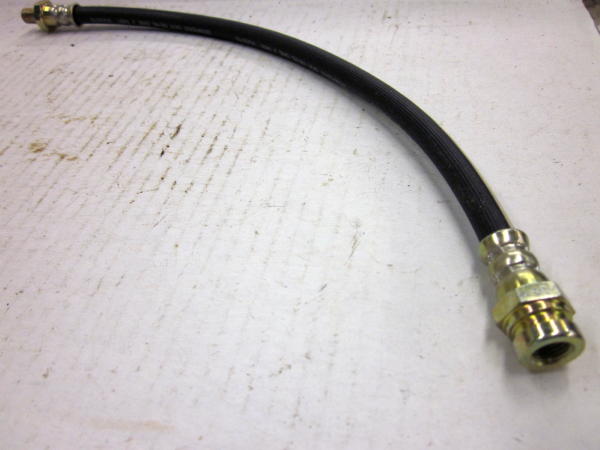

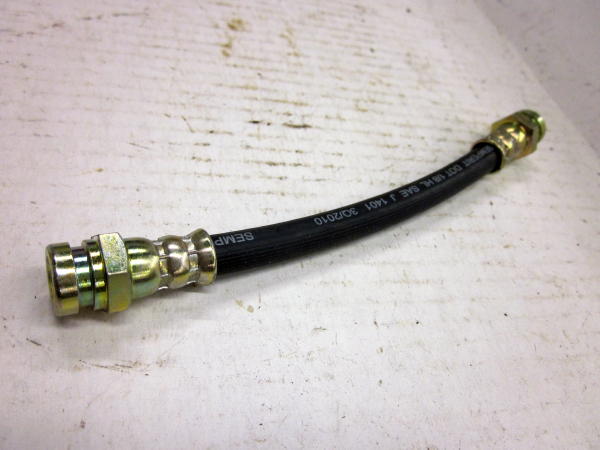

Brake Hose Set - CJ3B-CJ5

This a set of four high quality reproduction Brake Hoses for the WWII MB & GPW.  Also fits the M38, M38A1, CJ2A, CJ3A, CJ3B and CJ5.

- Price - $70.00 -

(Each Brake Hose hose is available for purchase separately - please call or email to purchase individual brake hoses)

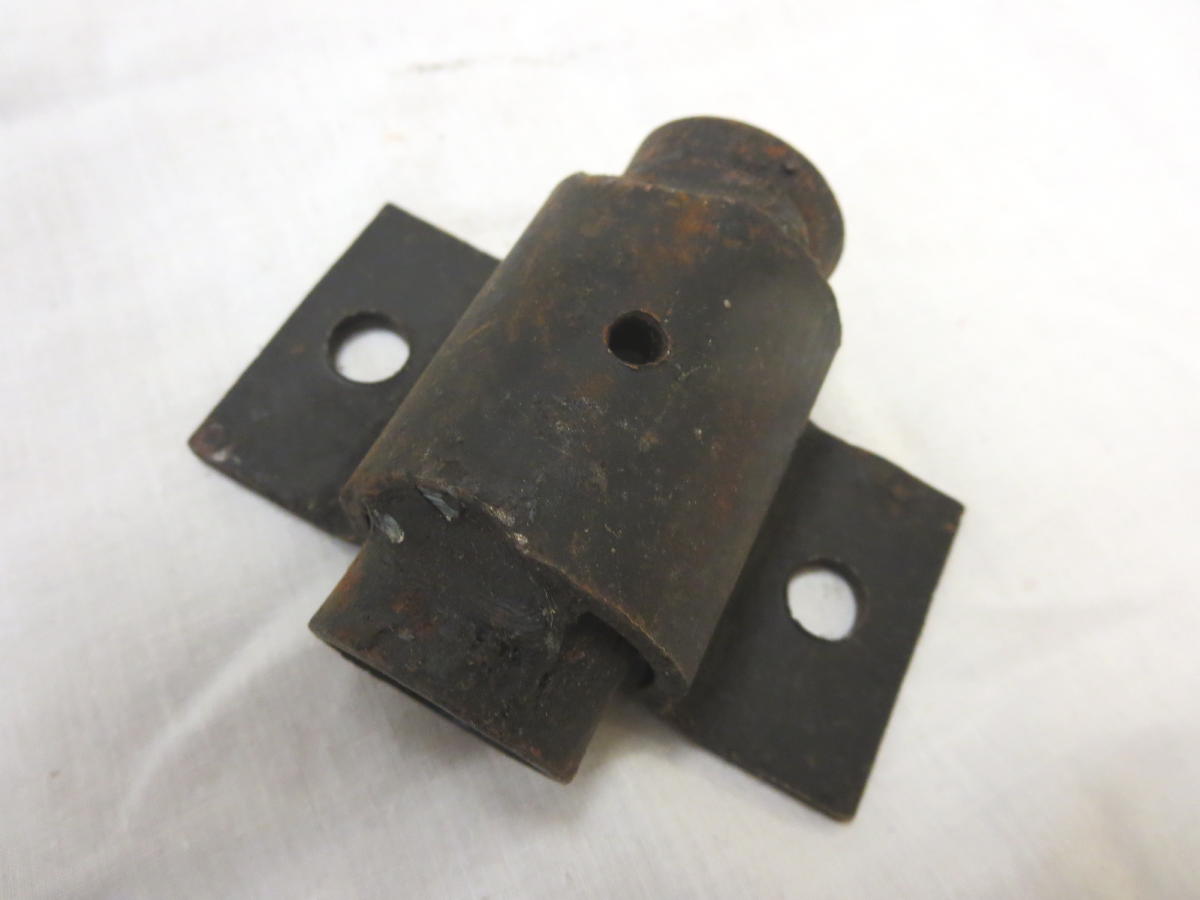

Brake Tube and Mounting Bracket CJ3B-CJ5

These are high quality reproduction Brake Tubes and original NOS Mounting Brackets for the brake tube.

Available Options

- Price - Brake Tube - $30.00 -

- Price - Mounting Bracket - $55.00 -

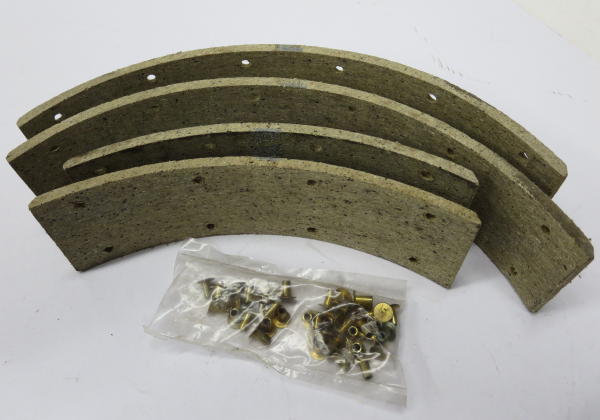

Brake Shoe Lining Set with Rivets (1 Axle)

- For 9 Inch Brakes -

These are Brake Shoe Lining Sets with Rivets.  There are enough linings and rivets to reline one axle worth of brake shows.  You would need two of these sets to reline one Jeep.  Used on MB, GPW, M38, M38A1, CJ2A, CJ3A, CJ3B and early CJ5.

- Price - $20.00 -



Draft Pad Set

These are Pedal Draft Pads with springs and washers used on the M38 and M38A1.  Sold as a set as pictured.

- Price - $15.00 -

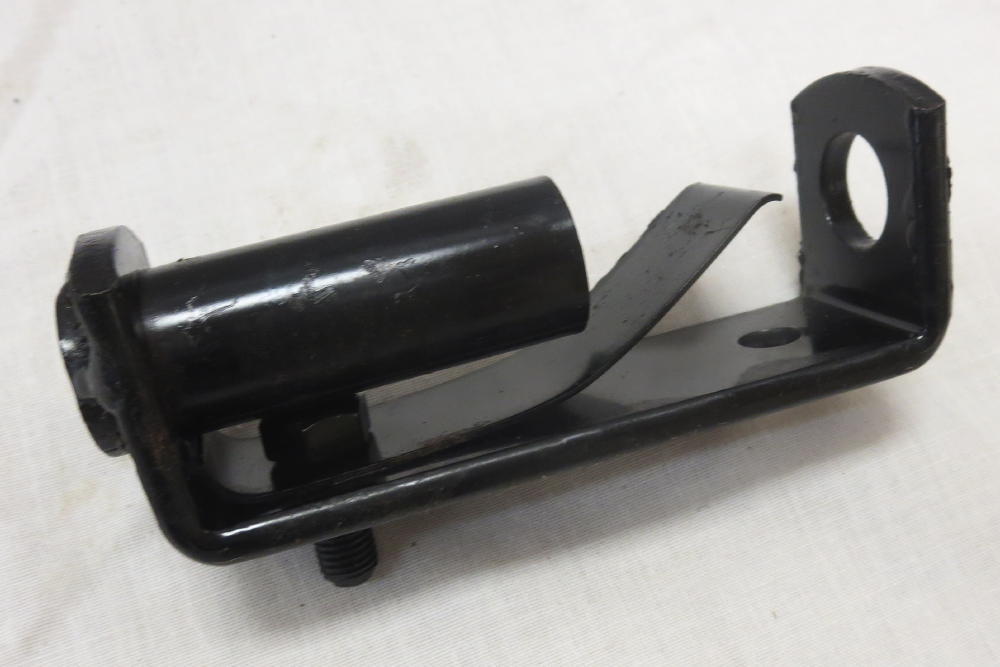

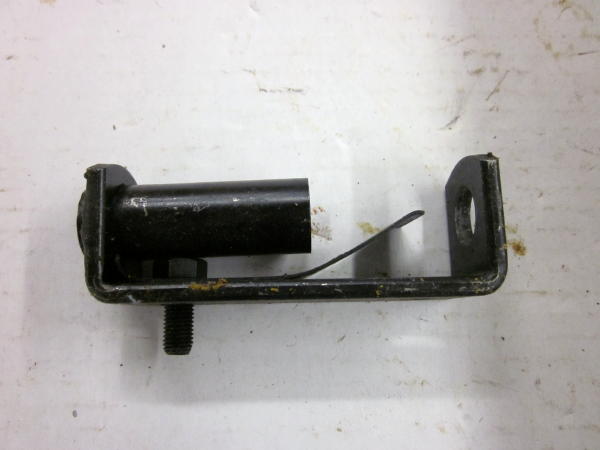

Emergency Brake Ratchet Bracket CJ3B-CJ5

These are original NOS Emergency Brake Ratchet Brackets for the WWII MB & GPW.  Also fits the M38, M38A1, CJ2A, CJ3A, CJ3B and CJ5.

- Price - $30.00 -

.

.

.

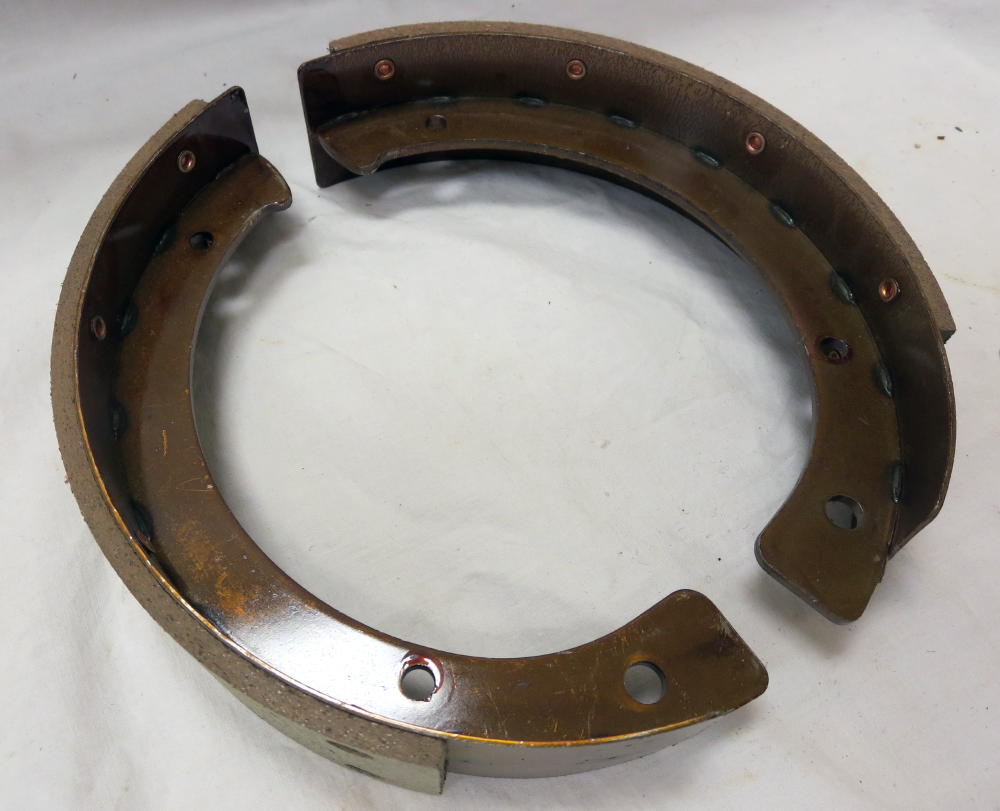

Emergency Brake Shoe Set CJ3B-CJ5

These are sets of reproduction Emergency Brake Shoes for the M38 Jeep.  Also fits late MB-GPW, M38, CJ2A, CJ3A, CJ3B and early CJ5.

M38 Emergency Brake Shoe Set

- Price $40.00 -

Also Available - All other attaching parts for the emergency brake system.  Call in what you need.

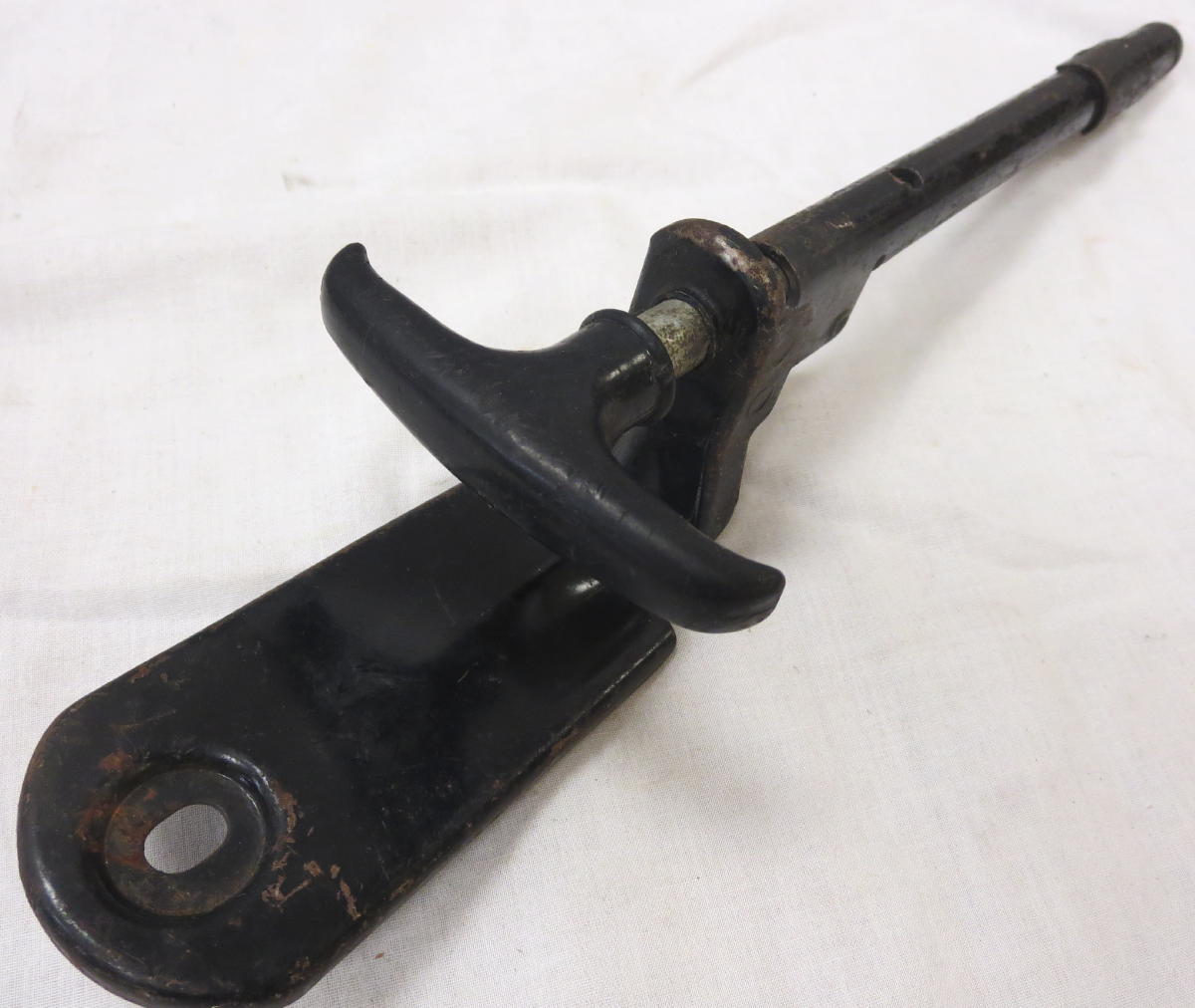

Emergency Brake Lever NOS

CJ3B - CJ5

These levers are the type that are mounted under the dash. These handle are new and have never been used, but  they do have some shelf wear from years of storage

Price $95.00

Don't see what you are looking for?

.

Try checking our C3JB-CJ5 Brake Parts Listing.

.

If something does not have a button to click for ordering then give us a call or send us an email.

.

Don't see what you are looking for?

Try checking our C3JB-CJ5 Brake Parts Listing.  If something does not have a button to click for ordering then give us a call or send us an email.

Part #

Part Description (Brake)

Price



GROUP 12 BRAKE

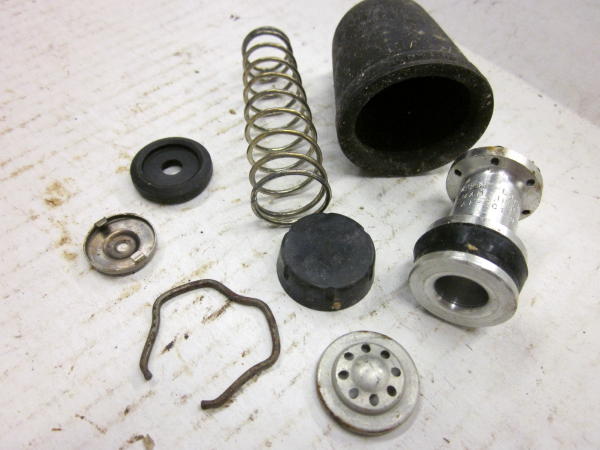

WO-805654

Kit, master cylinder rebuild

$20.00 R.

WO-805238

Master cylinder assembly

$60.00 R.

WO-119513

Cap, master cylinder

$12.00 NOS

WO-637602

Boot, master cylinder

$5.00 R.

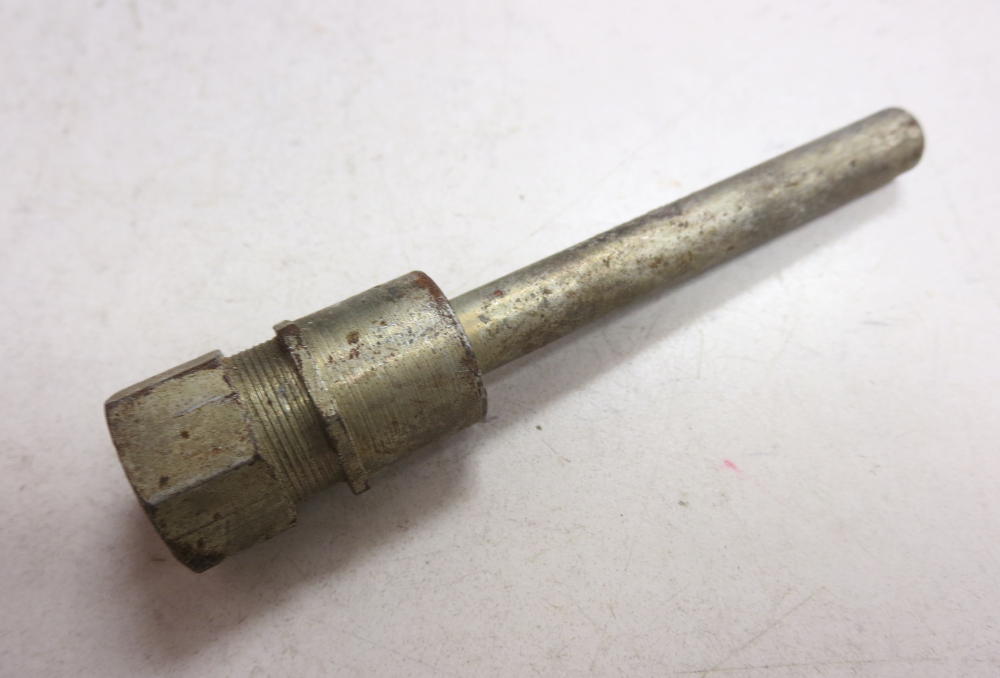

WO-647606 Rod, push, master cylinder $20.00 NOS

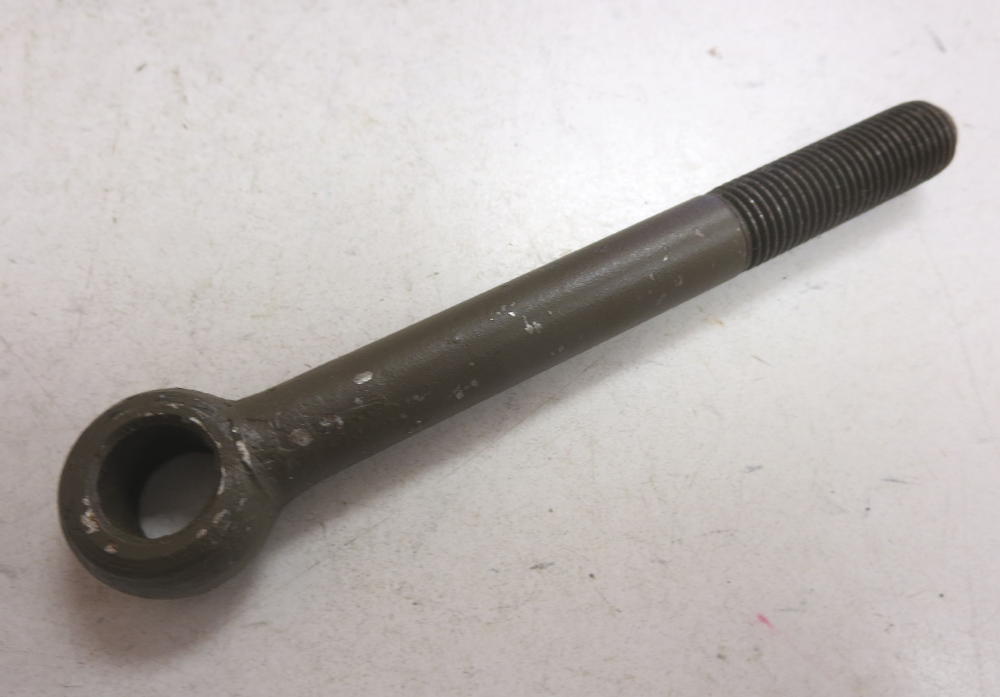

WO-A-183 Bolt, Eye, for push rod, master cylinder $15.00 R.

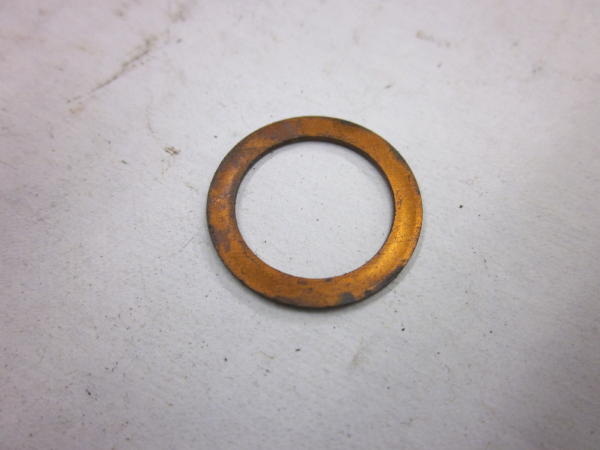

WO-637604

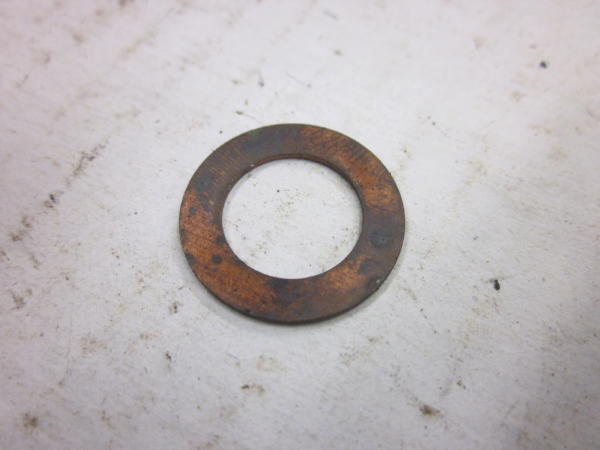

Washer, copper master cyl outlet bolt

$1.50 R.

WO-637606

Washer, copper master cyl outlet bolt

$1.50 R.

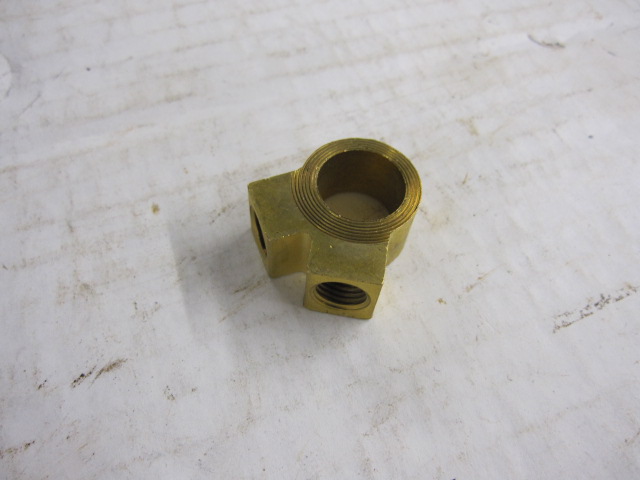

WO-A-557

Fitting, outlet, master cylinder

$8.00 R.

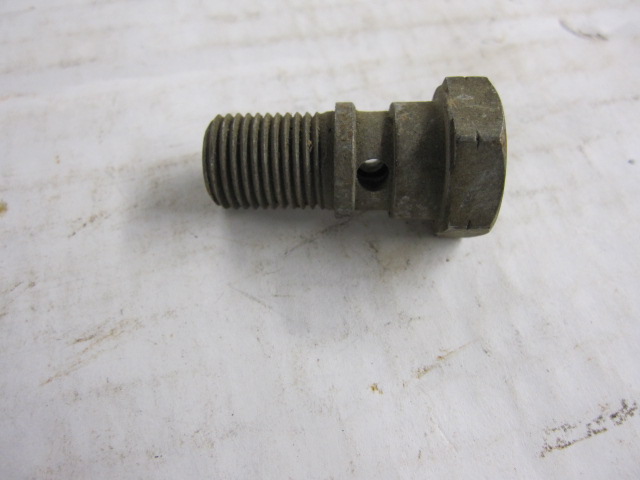

WO-637605

Bolt, master cylinder outlet fitting

$8.00 NOS

WO-807356

Wheel cylinder front

$25.00 R.

WO-807357

Wheel cylinder rear

$25.00 R.

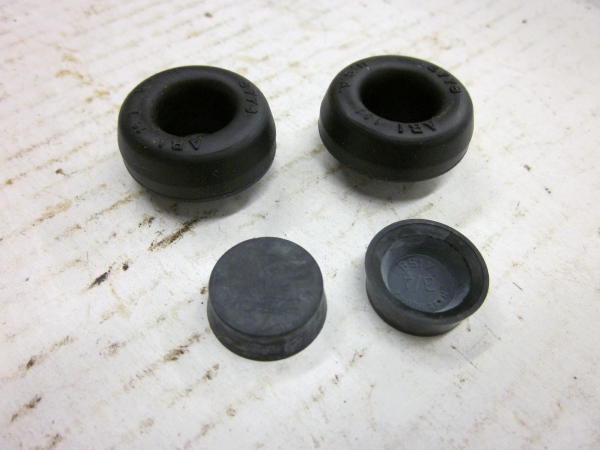

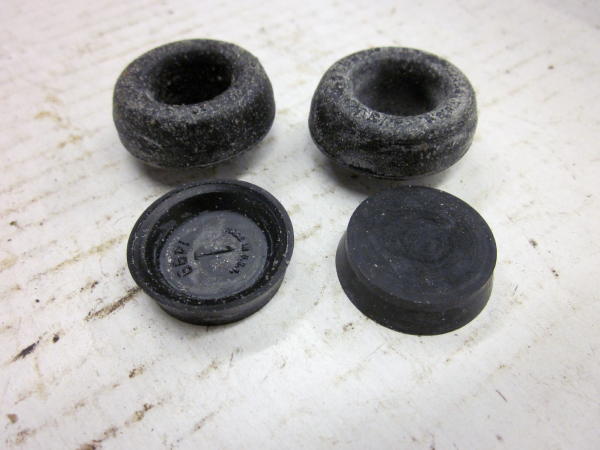

WO-804104

Kit, wheel cylinder front

$5.00 R.

WO-807357

Kit, wheel cylinder rear

$5.00 R.

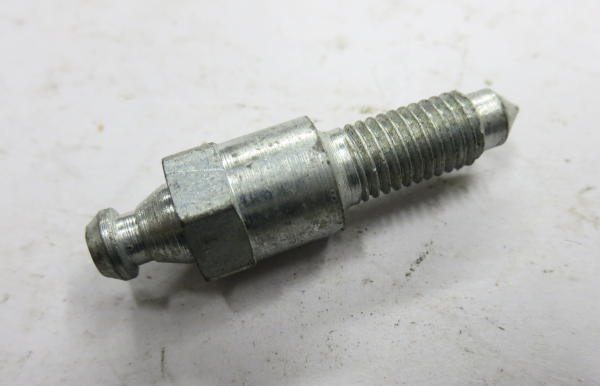

WO-643841

Screw, bleeder

$3.00 R.

WO-800986

Brake hose, frame to axle front

$20.00 R.

WO-800952

Brake hose, frame to axle rear

$20.00 R.

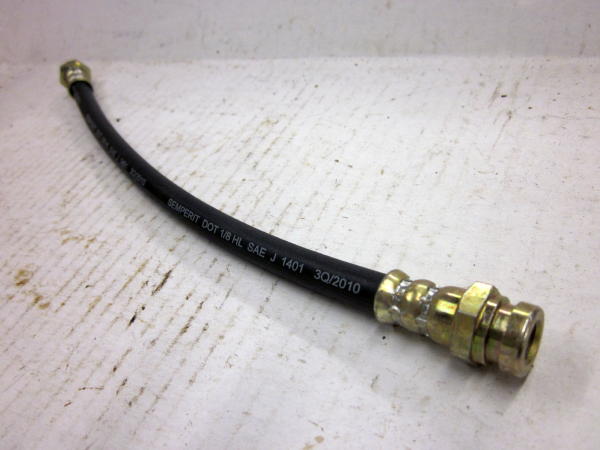

WO-800953

Brake hose, front axle to drum

$20.00 R.

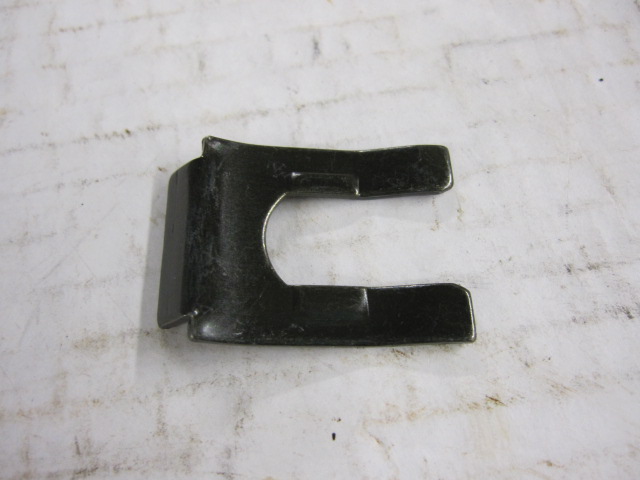

WO-A-5449

Clip, brake hose

$2.00 NOS

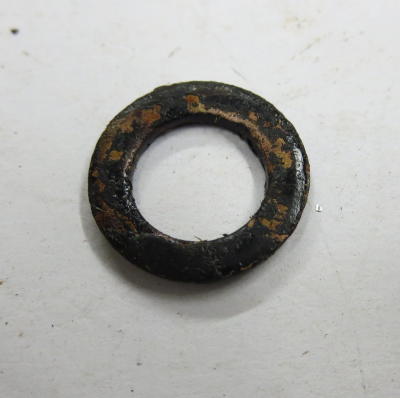

WO-637426

Gasket, brake hose fitting, copper

$0.75 NOS

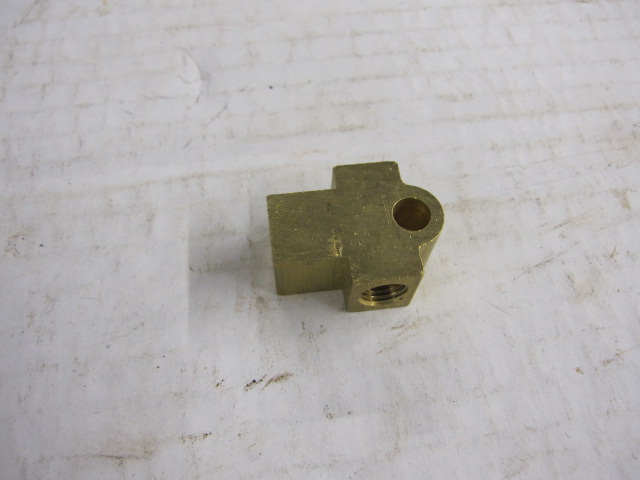

WO-637432

Fitting, tee, brake hose

$8.00 R.

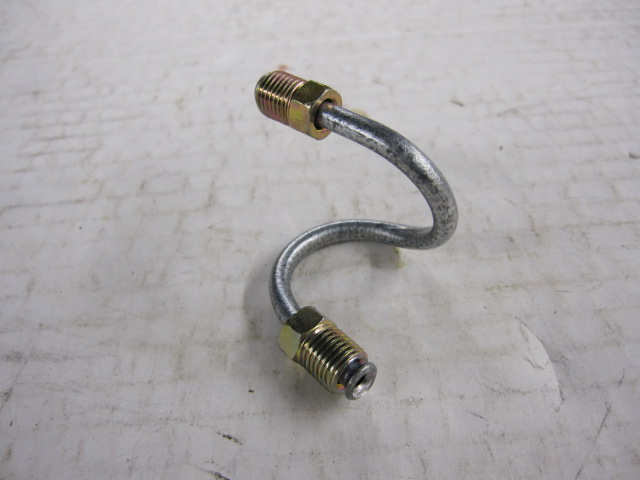

WO-A-1488

Brake line, “S” wheel cyl to hose

$10.00 R.

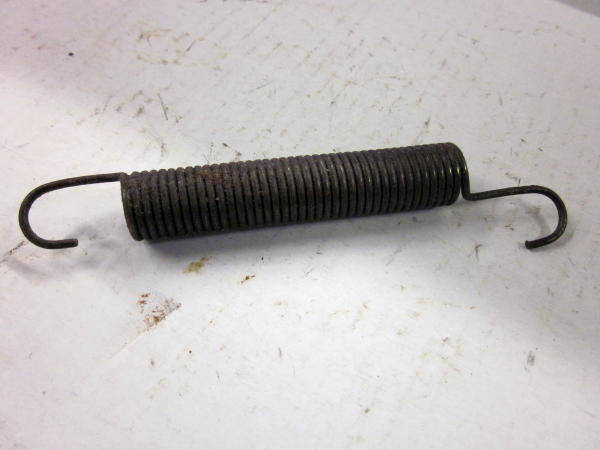

WO-630593

Spring, return brake pedal (arm to frame)

$5.00 NOS

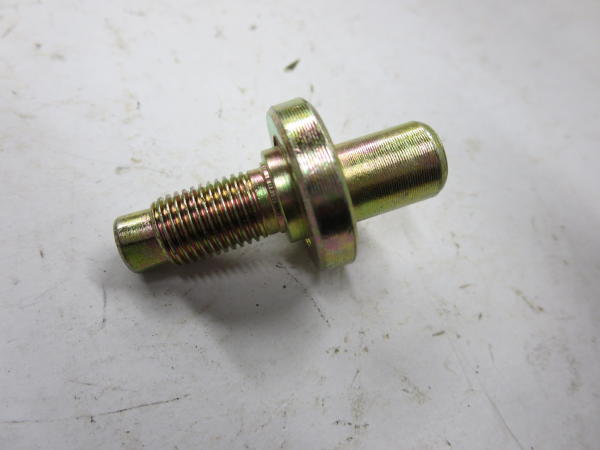

WO-805592

Eccentric, brake shoe adjusting

$7.00 NOS

WO-805602

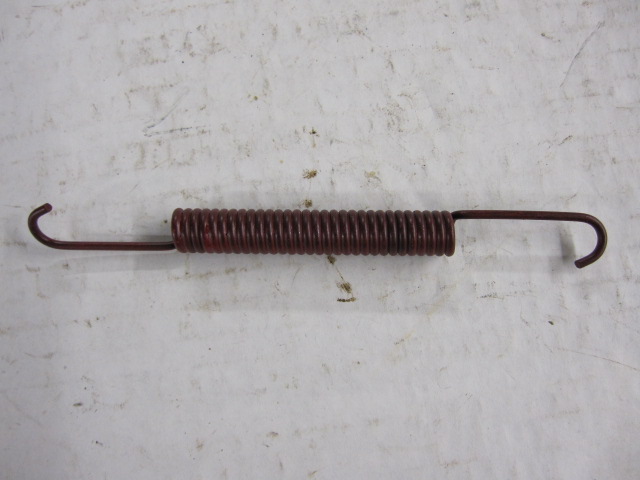

Spring, brake shoe lower

$3.00 R.

WO-637905

Spring, brake shoe upper

$3.00 R.

WO-120129

Kit, pins, cups, springs, for brake shoes

$5.00 R.

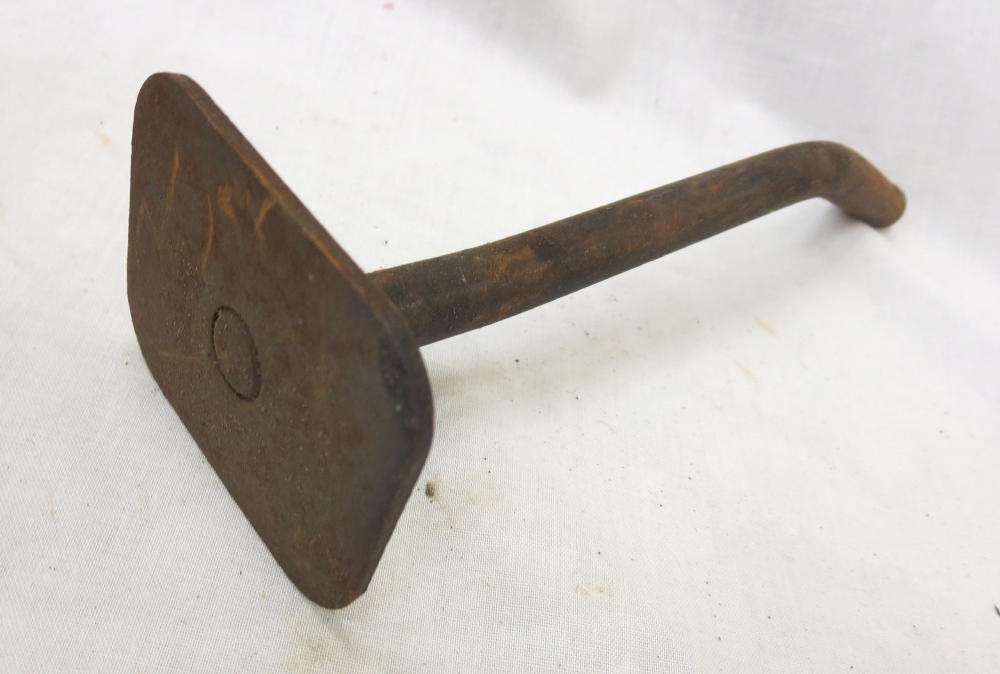

WO-645574

Pedal, brake - Early

$40.00 NOS

WO-927777 Pad, brake pedal and shaft (used with rubber Pad below) $40.00 NOS

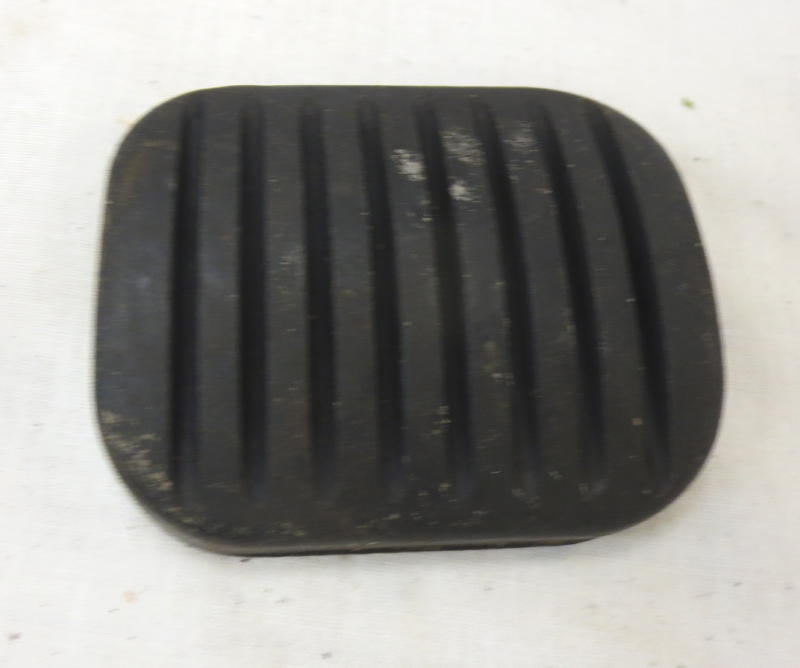

WO-948758

Pad, brake pedal (rubber)

$10.00 NOS

WO-639010

Bracket, hand brake ratchet tube w/ guide spring

$30.00 NOS

WO-649879

Cable, hand brake

$35.00 NOS

WO-A-8847

Clamp, cable to crossmember

$4.00 R.

WO-A-10324

Shoe, emergency brake (set)

$40.00 R.

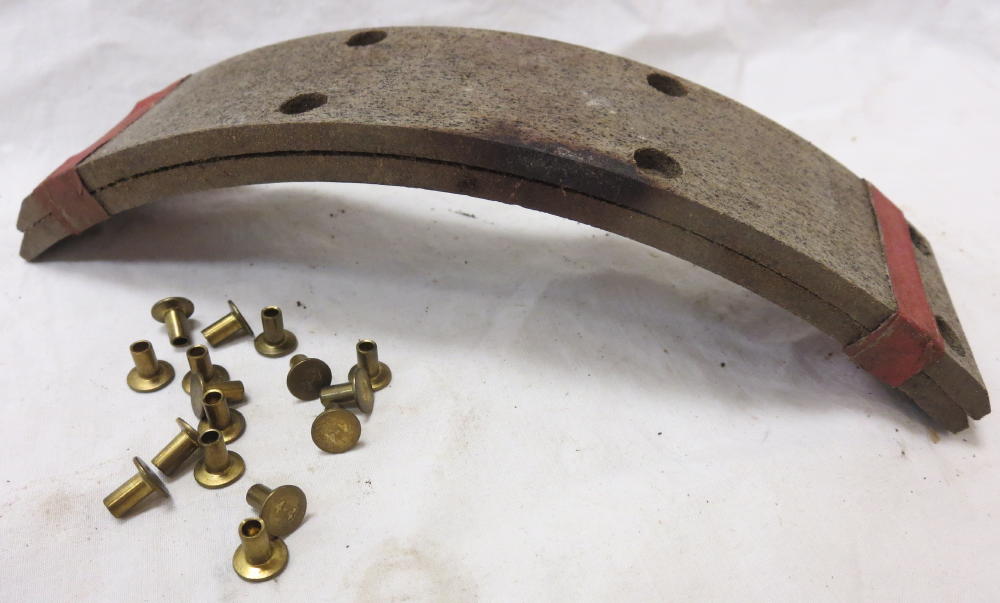

WO-116600

Lining, set emergency brake w/rivets

$15.00 NOS

WO-A-5335

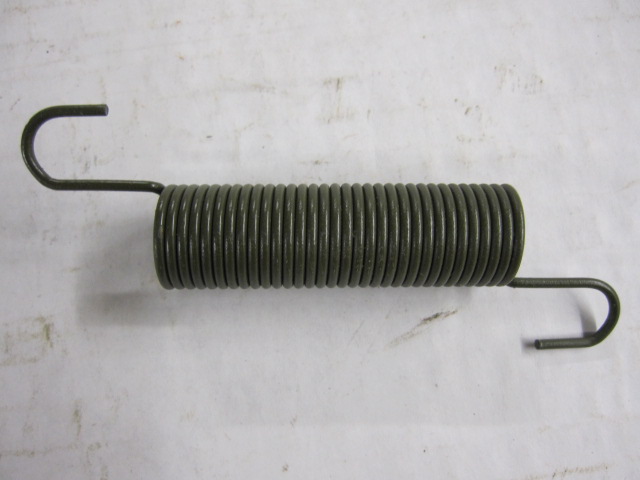

Spring, hand brake

$4.00 NOS

WO-A-10338

Spring, hand brake (shoe retracting)

$4.00 R.

WO-A-8860

Link, spring hand brake

$5.00 R.

WO-A-10337

Spring, cam lever retaining (hand brake)

$4.00 NOS

WO-800811

Lever, operating, hand brake (under dash type)

$95.00 NOS

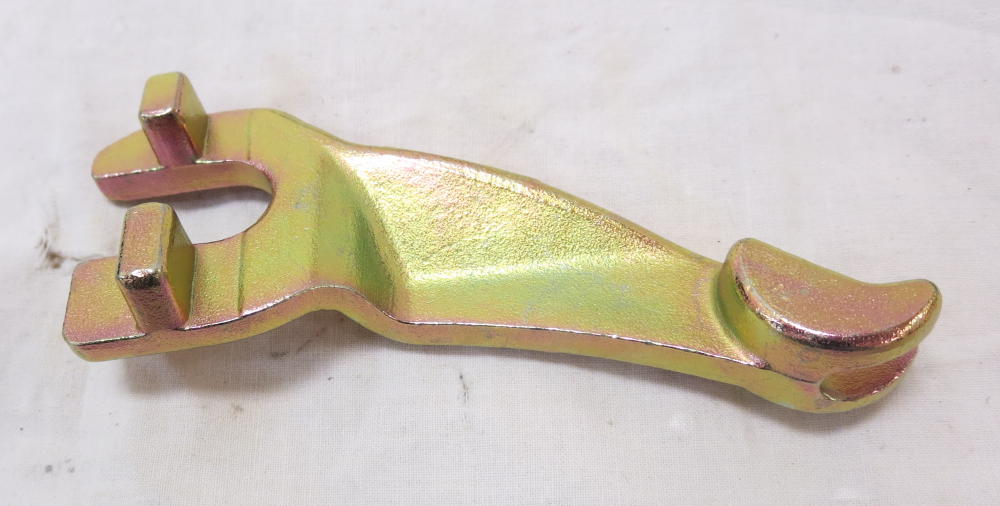

WO-A-13333 Lever, cam, emergency brake $12.00 R.

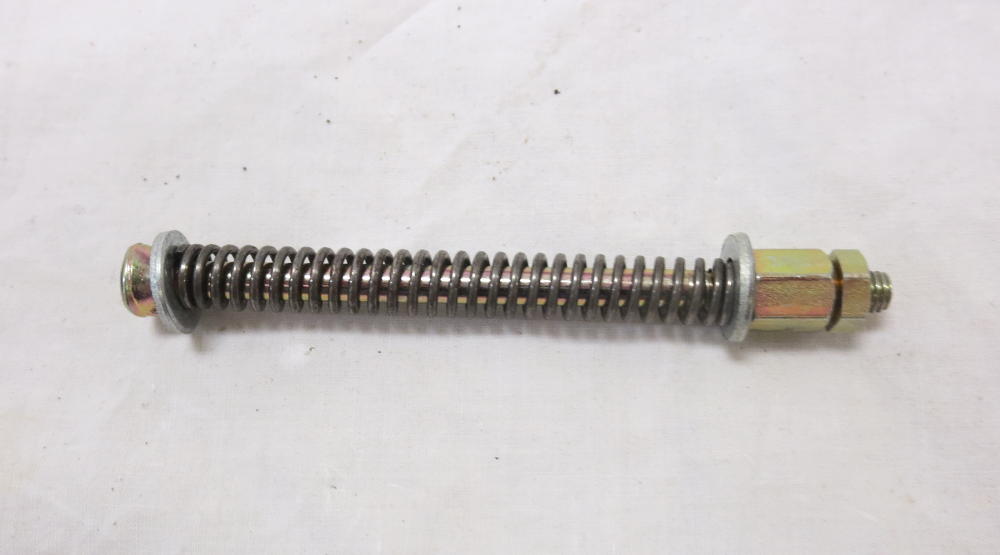

WO-A-13334 Link, assembly, emergency brake $12.00 R.

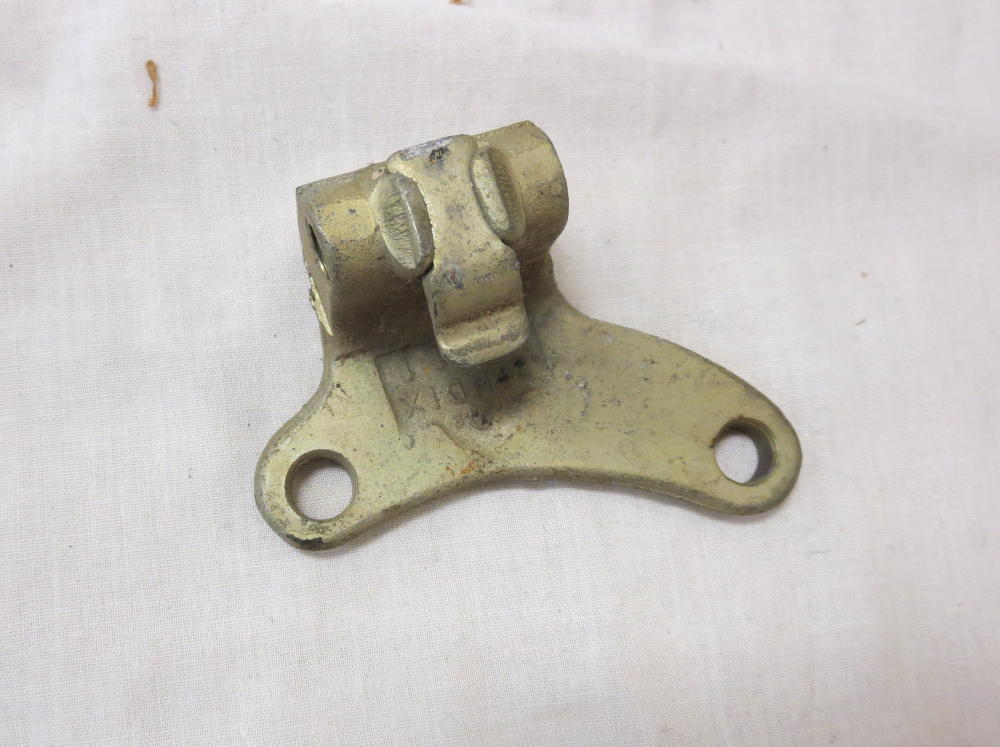

WO-A-10330 Bracket, adjust screw, assembly (emergency brake) $30.00 NOS

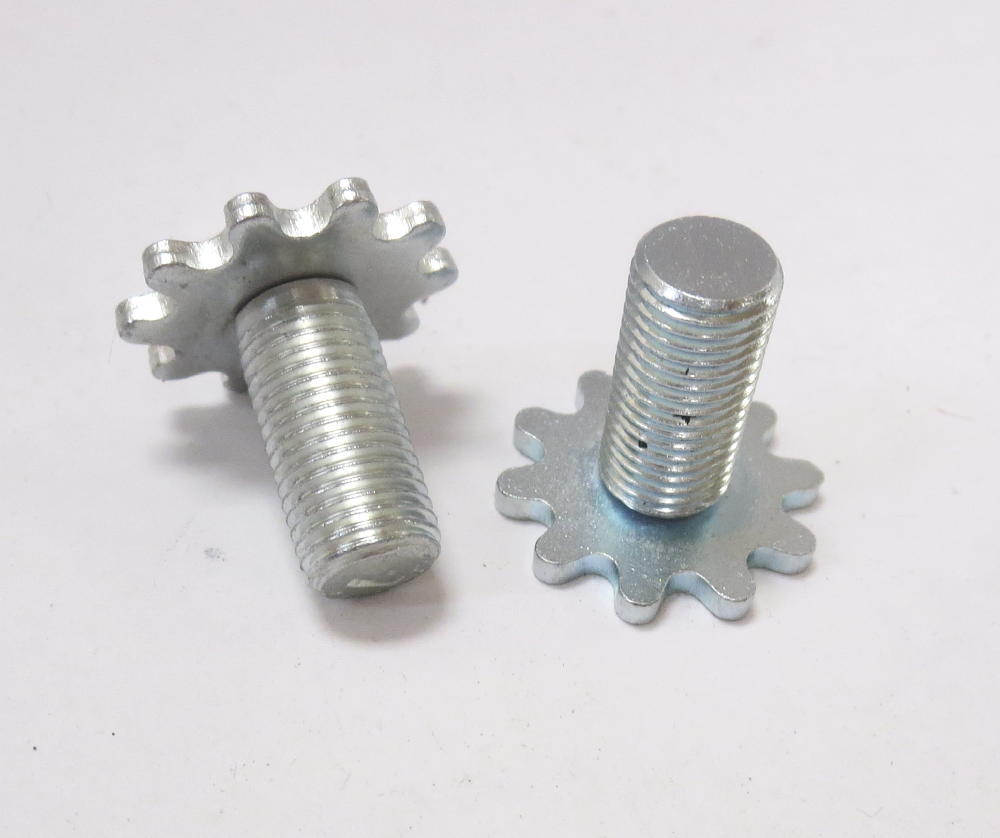

WO-A-10331 Screw, adjusting, emergency brake, Left $9.00 R.
WO-A-10332 Screw, adjusting, emergency brake, Right $9.00 R.

WO-642776

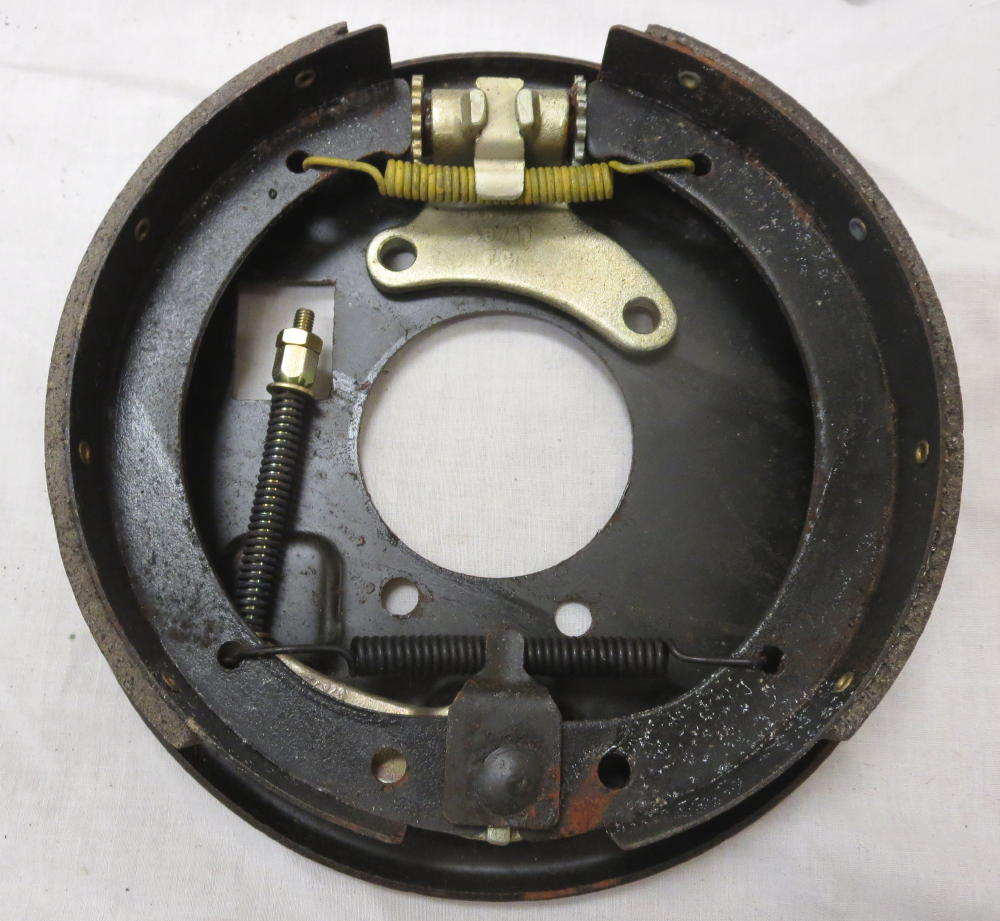

Brake, emergency, assembly complete

$POR.NOS

WO-A-9332

Drum, emergency brake

$95.00 NOS

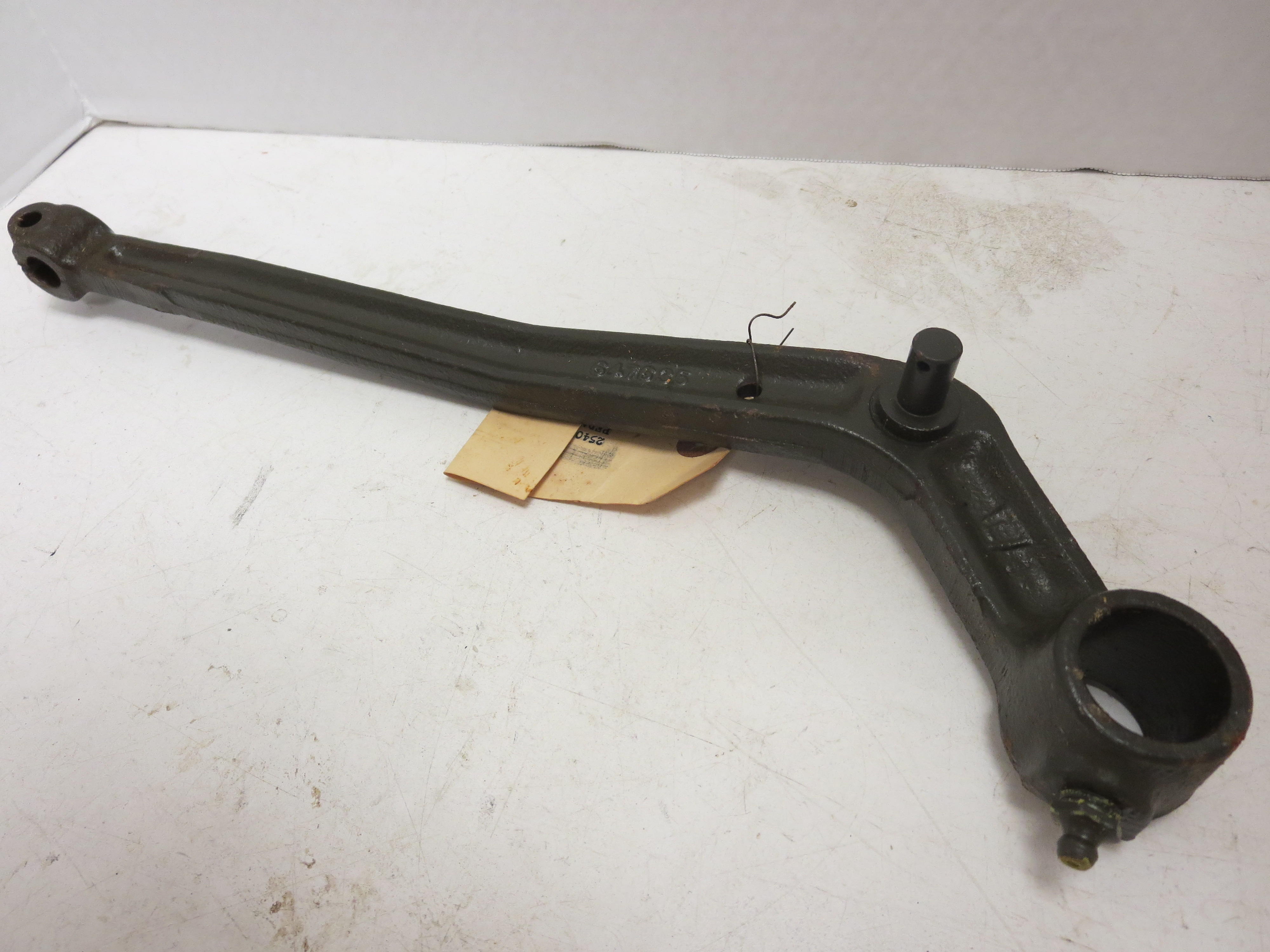

WO-800527

Pedal, brake arm assembly

$POR.NOS

WO-A-495

Shaft, brake pedal

$30.00 R.

WO-801662

Bracket, shaft retainer w/bushing

$55.00 NOS

WO-806162

Shield, heat, master cyl

$45.00 R.

WO-808769

Drum, brake

$65.00 R.

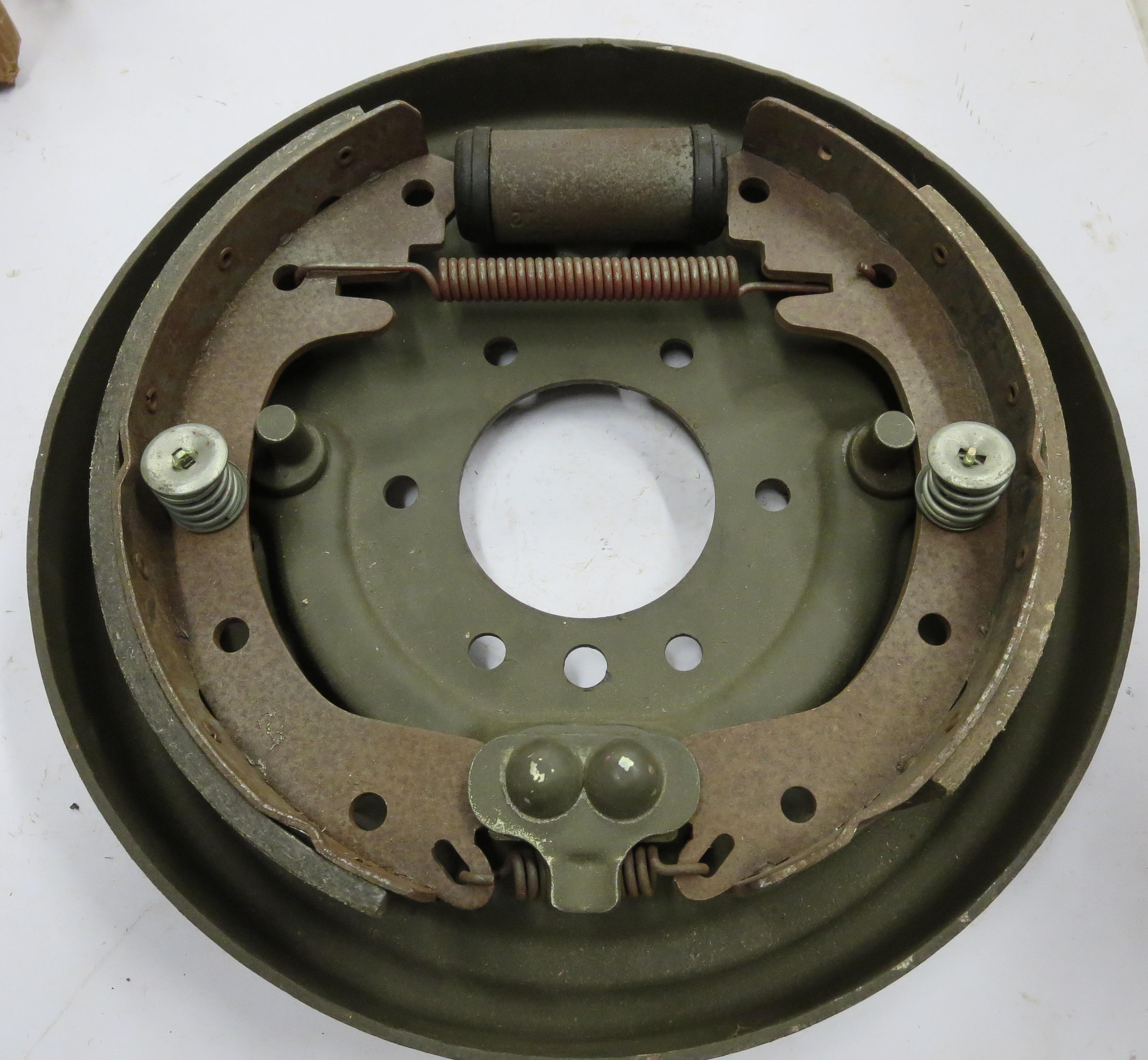

WO-807375

Plate, backing complete w/shoes, wheel cyl - CJ5

$90.00 NOS

WO-807367

Plate, backing

$30.00 NOS



Brake shoes set 2 wheels

$40.00 R.


Lining set, brake shoe w/rivets (1 axle)

$20.00 R.

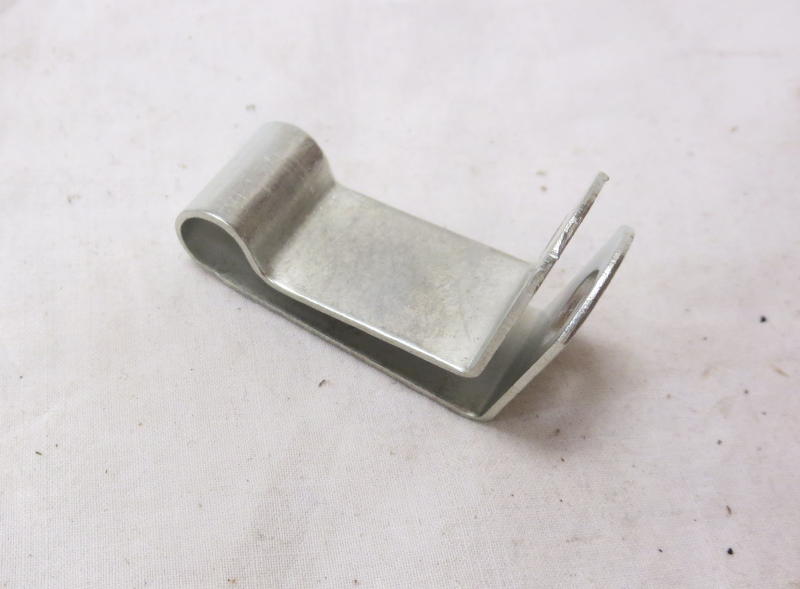

PICTURE Clip, brake line to differential cover $3.00 R.



Brake line set, all steel lines complete

$150.00 R.



Brake hose set 4 pc

$70.00 R.
