M38 - M38A1 GROUP 14 STEERING

M38-M38A1

GROUP 14 STEERING

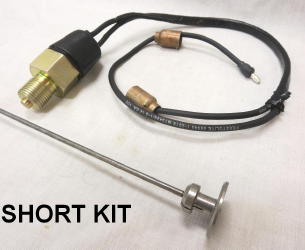

Horn Switch Kit - M38 & M38A1

These are Horn Switch Kits for the M38 and M38A1.  We have a complete "Long" kit available as well as a more wear oriented "Short" kit.

The " Long" Kit contains our new high quality reproduction Horn Switch, Horn Rod, Horn Rod Washer, Horn Button Cap and Steering Wheel Nut.  This kit contains parts made in the USA.

The " Short" Kit contains our new high quality reproduction Horn Switch, Horn Rod and Horn Rod Washer.  This kit contains parts made in the USA.

Long Kit - Price - $110.00

Short Kit - Price - $90.00

Available Options

\

(switches pictured with M38 Harness)

*NEW* Horn Switch - M38 & M38A1

For years we have struggled with a dwindling supply of surplus Horn Switches.  That problem is now over.

Introducing our new High Quality Reproduction of the M38 & M38A1 Horn Switch.  Made exclusively for us each switch comes complete with harness and boot as pictured.  This is the switch that screws into the bottom of the Steering Box that the horn rod presses down on.

Switch Pictured with M38 Harness.  M38A1 is also available.

Available Options

- Price $45.00 -

Steering Stabilizer Kit

This kit is an quick fix for the front end shimmy many of our Jeeps seem to have.  Fits most models - MB, GPW, M38, M38A1 and CJ2A, CJ3A, CJ3B & CJ5.

- Steering Stabilizer Kit - Price $115.00 -

.

.

.

.

.

.

The Long Awaited Green Sheller Steering Wheel is Here.

This steering has never before been available in true green plastic.   For years the best you could get was a steering wheel that was painted green which eventually would wear off.

This wheel is truly an excellent reproduction of the green Sheller steering wheel.  It has the grooves embossed in it like the original and the Sheller name stamp.

This steering wheel is correct for all M38 and M38A1 and also early MB and GPW.

Price $160.00

Green Plastic Steering Wheel

These are the new Green Plastic Steering Wheels for the budget minded Jeep Builder.  Fits either M38 or M38A1. These steering wheels are not stamped Sheller.

Price $95.00

Pitman Arm - M38 & M38A1

These are high quality reproduction Pitman Arms for the M38 and M38A1.  This also fits the CJ3B and CJ5.

- Price - $35.00 -

.

.



Steering Column Jacket w/ Bearing - M38 & M38A1

This is a high-quality reproduction Steering Column Jacket (with Upper Bearing) for the M38.  Also used on CJ3A, CJ3B & CJ5.  From Seal Tested.

- Price - $55.00 -

Don't see what you are looking for?

Try checking our M38-M38A1 Steering Parts Listing Below.  If something does not have a button to click for ordering then give us a call or send us an email.

Part #

Part Description (Steering)

Price



GROUP 14 STEERING



  M38A1 Rebuilt Steering Box - I now offer an M38A1 steering box rebuilding service.  Call for more information. $P.O.R.

WO-800737

Wheel, steering assembly, green plastic - not painted - Very High Quality - Marked Sheller

$160.00 R.

WO-800737

Wheel, steering assembly green - not marked Sheller

$95.00 R.

WO-809200

Jacket, w/bearing steering gear

$55.00 R.

WO-807480 Shaft, worm - M38A1 $POR. R.

WO-801425

Nut, steering wheel

$8.00 NOS

WO-804623

Cap, rubber, horn button

$10.00 NOS

WO-801422

Bearing, steering jacket upper with felt seal - copied from an Original

$15.00 R.

WO-801422

Bearing, steering jacket upper with felt seal - Original Surplus

$30.00. NOS

WO-639191

Spring, steering jacket upper bearing

$10.00 NOS

WO-A-636

Clamp, steering jacket

$15.00 NOS

WO-806393

Washer, horn switch push rod M38-M38A1

$22.00 R.

WO-804389

Washer, horn switch push rod (early M38)

$4.00 NOS

WO-807112

Rod, horn switch push

$25.00 R.

WO-804535 Arm, Pitman $35.00

WO-804535

Arm, pitman

$POR. NOS.

WO-647008

Bellcrank  U.S. Made

$125.00 R.

WO-920556

Kit, bell crank rebuil

$50.00 R.

WO-808414

Seal, upper housing

$10.00 NOS

WO-801816

Seal, sector shaft steering box

$5.00 R.

WO-807478 Shaft, sector - M38A1 - Original $POR.NOS.
WO-807478 Shaft, sector - M38A1 $115.00 R.

WO-647098

Bushing, sector shaft (outer)

$20.00 NOS

WO-647099

Bushing, sector shaft (inner)

$20.00 NOS

WO-801264

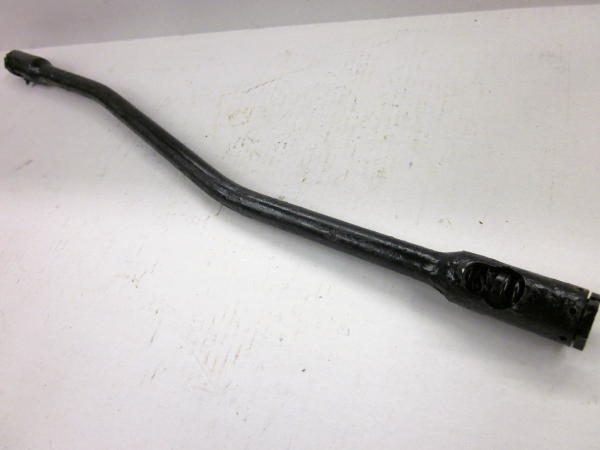

Link, drag assembly complete all internal parts

$75.00 NOS

WO-646620

Link, drag assembly complete all internal parts

$50.00 R.

WO-A-847

End, tie rod, L/H (small thread)

$20.00 R.

WO-809186

End, tie rod, L/H (large thread)

$20.00 R.

WO-806752

End, tie rod, center (small thread)

$20.00 R.

WO-809189

End, tie rod, center (large thread)

$20.00 R.

WO-A-838

End, tie rod, R/H (small thread)

$20.00 R.

WO-806750

End, tie rod, R/H (large thread)

$20.00 R.

WO-642059

Tube, tie rod right w/clamps (M38 Only)

$35.00 NOS

WO-642058

Tube, tie rod left w/ clamps (M38 Only)

$35.00 NOS

WO-RUBBER

Seal, tie rod end rubber

$4.00 R.

WO-STABIL

Steering Stabilizer

$115.00 R.




END
