M38 - M38A1 GROUP 8 TRANSFER CASE

M38-M38A1

GROUP 8 TRANSFER CASE

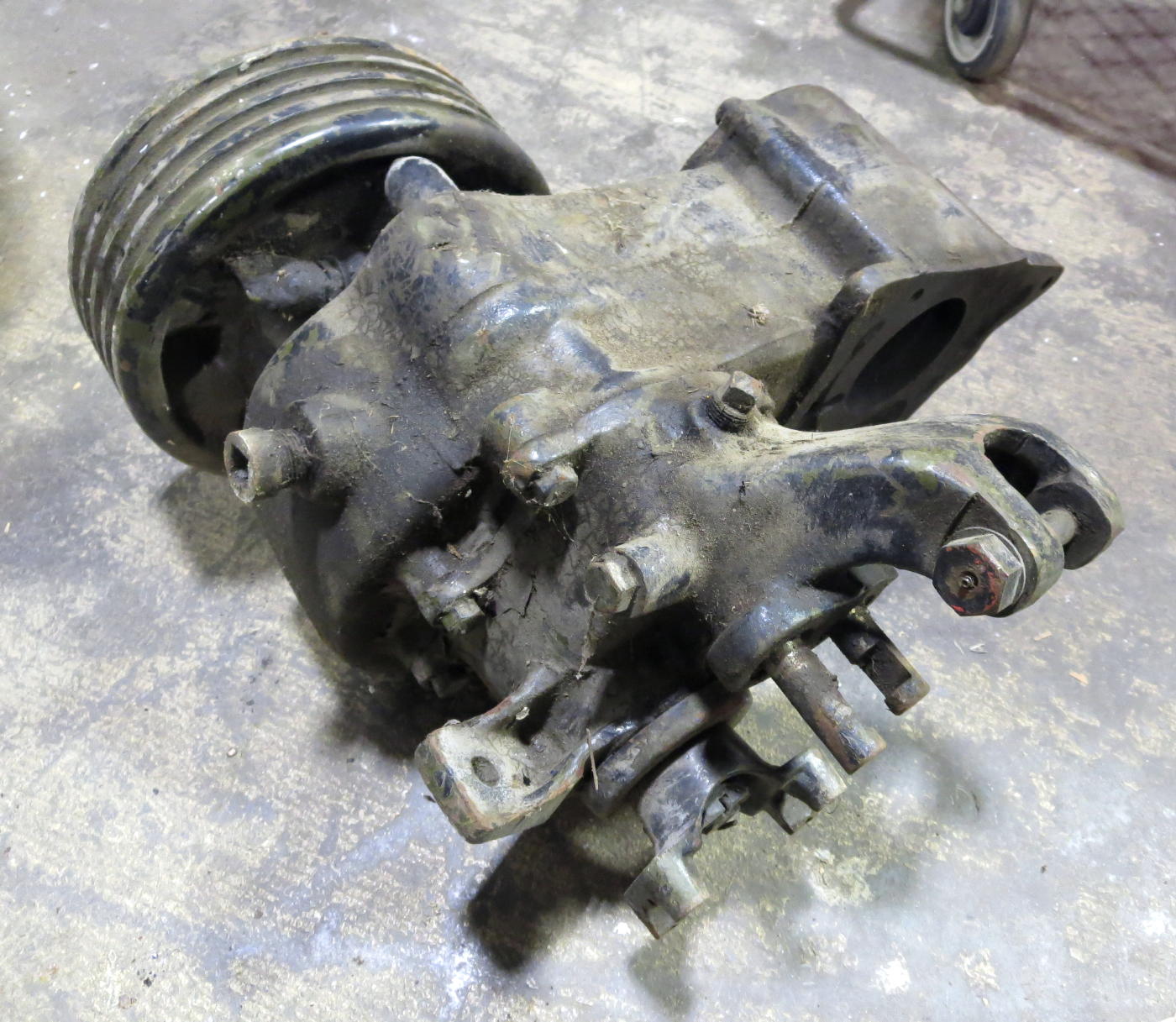

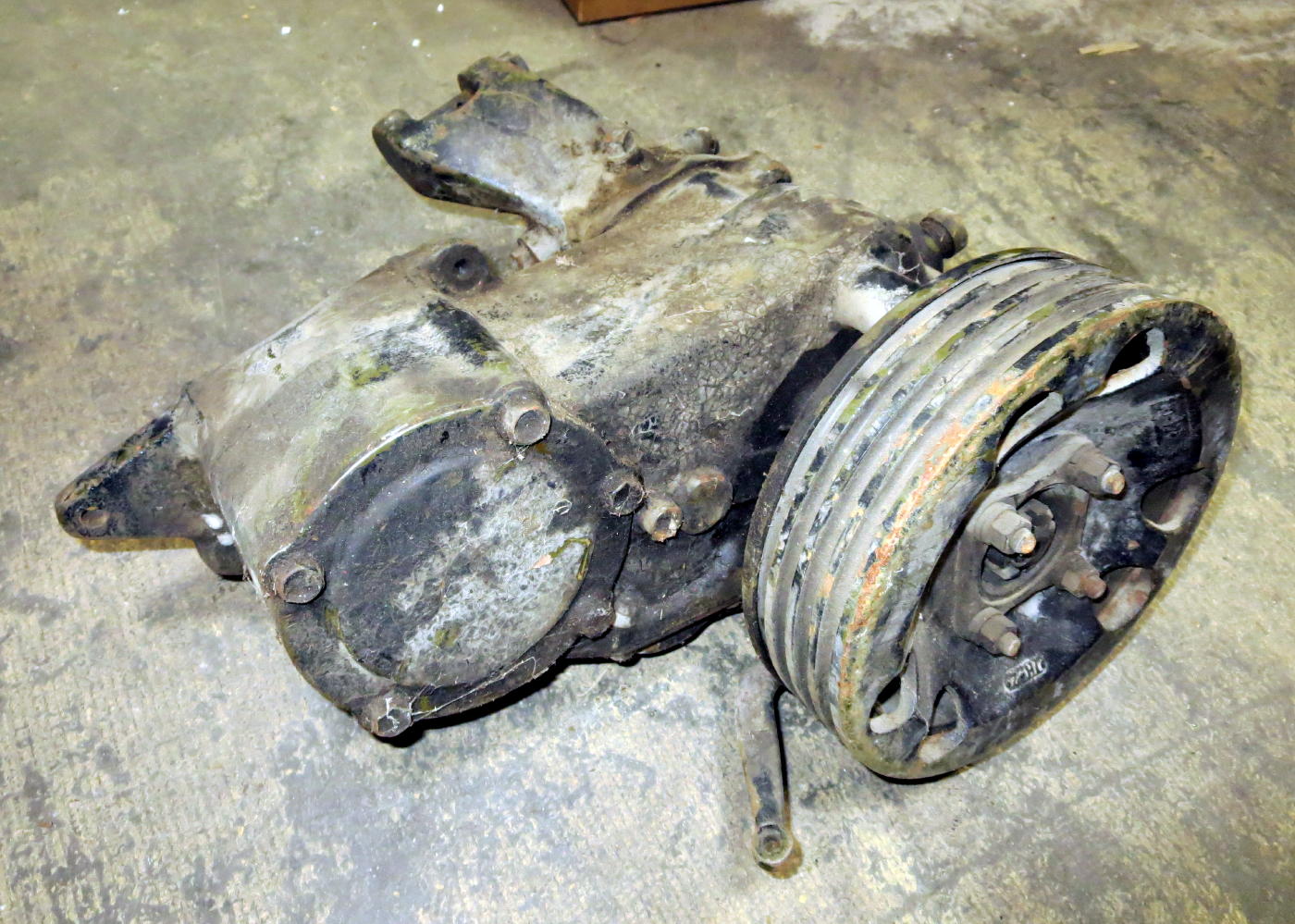

Complete Transfer Cases

We have a selection of Complete Transfer Cases available, NOS and otherwise, for various models. Give us a call or drop us an email for more information.

* * * * * * *

Dana 18 Transfer Case Gasket & Seal Set

This is the Transfer Case Gasket & Seal Set used on the M38 and M38A1.  This is also used on the CJ2A, CJ3A, CJ3B, CJ5, MB and GPW.

- Price - Transfer Case Gasket & Seal Set - $25.00 -

- Price - Transfer Case Gasket (no seals) - 10.00 -

Available Options

Transfer Case Gasket & Seal Set - Transfer Case Gasket Set (no seals)

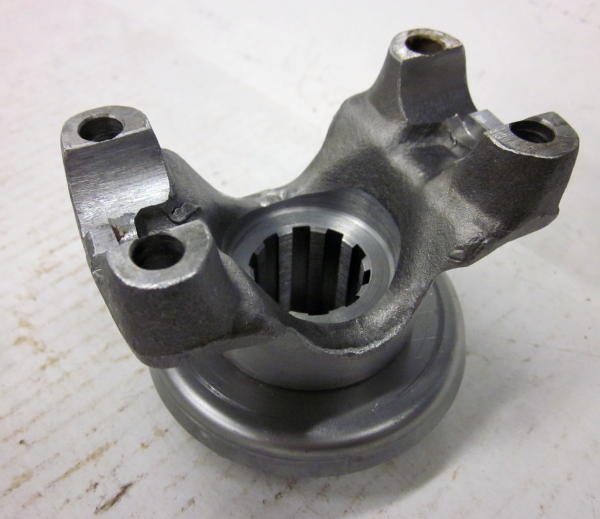

Front Output Yoke

This is a high quality reproduction of the Front Output Yoke used on the Dana 18 Transfer Case.  Used on the MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $50.00 -

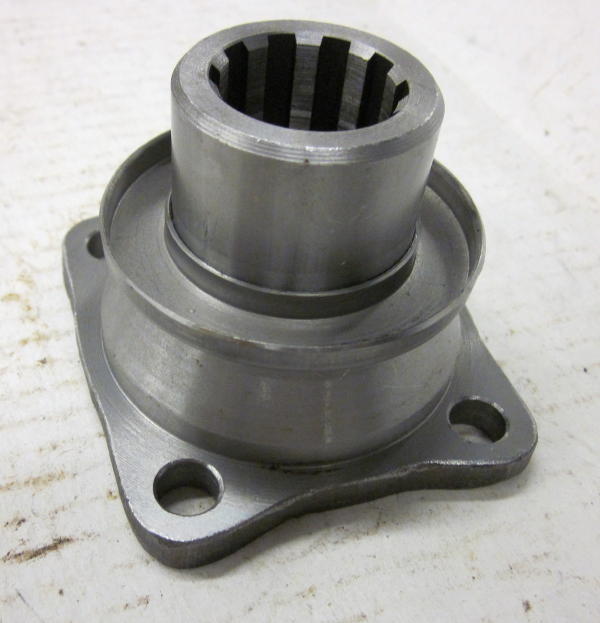

Rear Output Companion Flange

This is a high quality reproduction of the Rear Output Companion Flange used on the Dana 18 Transfer Case.  Used on the MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $50.00 -

Transfer Case Output Shaft

WO-807767

These are original NOS U.S. Made Transfer Case Output Shafts for the WWII MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.  Includes bushing.

- Price - $150.00 -

.

.

Don't see what you are looking for?

.

Try checking our M38 - M38A1 Transfer Case Parts Listing Below.

.

If something does not have a button to click for ordering then give us a call or send us an email.

.

.

Clutch Output Shaft Gear

WO-A-992

These are original NOS U.S. Made Clutch Output Shaft Gears for the WWII MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $35.00 -

Clutch Output Shaft

WO-A-807892

These are original NOS U.S. Made Clutch Output Shafts for the WWII MB, GPW, CJ2A, CJ3A, CJ3B, CJ5, M38 and M38A1.

- Price - $40.00 -

.

.

Shift Fork - Front Wheel Drive

WO-A-960

These are original NOS U.S. Made Transfer Case Front Wheel Drive Shift Forks  for the WWII MB, GPW, CJ2A, CJ3A, C3B, CJ5, M38 and M38A1.

- Price - $15.00 -

Shift Fork - High & Intermediate

WO-A-959

These are original NOS U.S. Made Transfer Case High and Intermediate Shift Forks  for the WWII MB, GPW, CJ2A, CJ3A, C3B, CJ5, M38 and M38A1.

- Price - $15.00 -

Dana 18 Transfer Case Insulator Mount Kit

These kits contain high quality reproductions of the Dana 18 Insulator, Snubber and Bolt.

- Price - $30.00 -

- All pieces available separately -

Transfer Case Shift Lever Boot - M38/M38A1

This Transfer Boot is new and improved with a high quality material that will resist sun damage. This is a high quality U.S. Made product.

Transfer Case Boot - Price $12.00

Don't see what you are looking for?

Try checking our M38-M38A1 Transfer Case Parts Listing.  If something does not have a button to click for ordering then give us a call or send us an email.

Part #

Part Description (Transfer Case)

Price



GROUP 8 TRANSFER CASE



WO-A-971

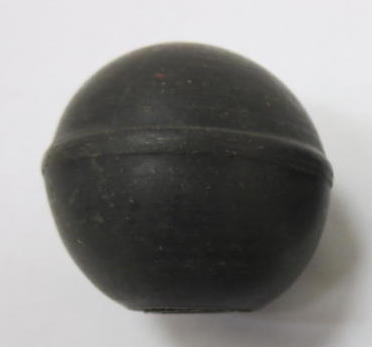

Knob, gear shift

$5.00 R.

WO-644122

Gasket, trans to transfer case

$3.00 NOS

WO-A-1543

Gasket & seal set

$25.00 R.

WO-634758

Insulator, transfer case support

$15.00 NOS

WO-634759

Snubber, case support insulator, transfer

$5.00 NOS

WO-A-147

Bolt, support transfer to insulator

$10.00 NOS

WO-923896

Oil seal output shaft

$8.00 R.

WO-A-7445

Oil seal set, output shaft & shift rails

$20.00 R.

WO-A-1504

Rod, shift high low

$POR. NOS

WO-A-962

Rod, shift, front wheel drive

$POR. NOS

WO-A-960

Fork, shifter, output clutch gear

$15.00 NOS

WO-A-959

Fork, shifter, output shaft sliding gear

$15.00 NOS

WO-453593

Ball, poppet, shift rod

$2.00 R.

WO-A-966

Spring, poppet, shift rod

$2.00 NOS

WO-A-967

Plug, poppet, shift rod

$3.50 NOS

WO-A-965

Interlock, shifter shaft

$5.00 NOS

WO-A-992

Gear, clutch, output shaft

$35.00 NOS

WO-807892

Shaft, output clutch

$40.00 NOS

WO-A-1007

Bearing, output shaft

$15.00 R.

WO-A-15045

Gear, sliding output shaft

$110.00 NOS

WO-A-15044

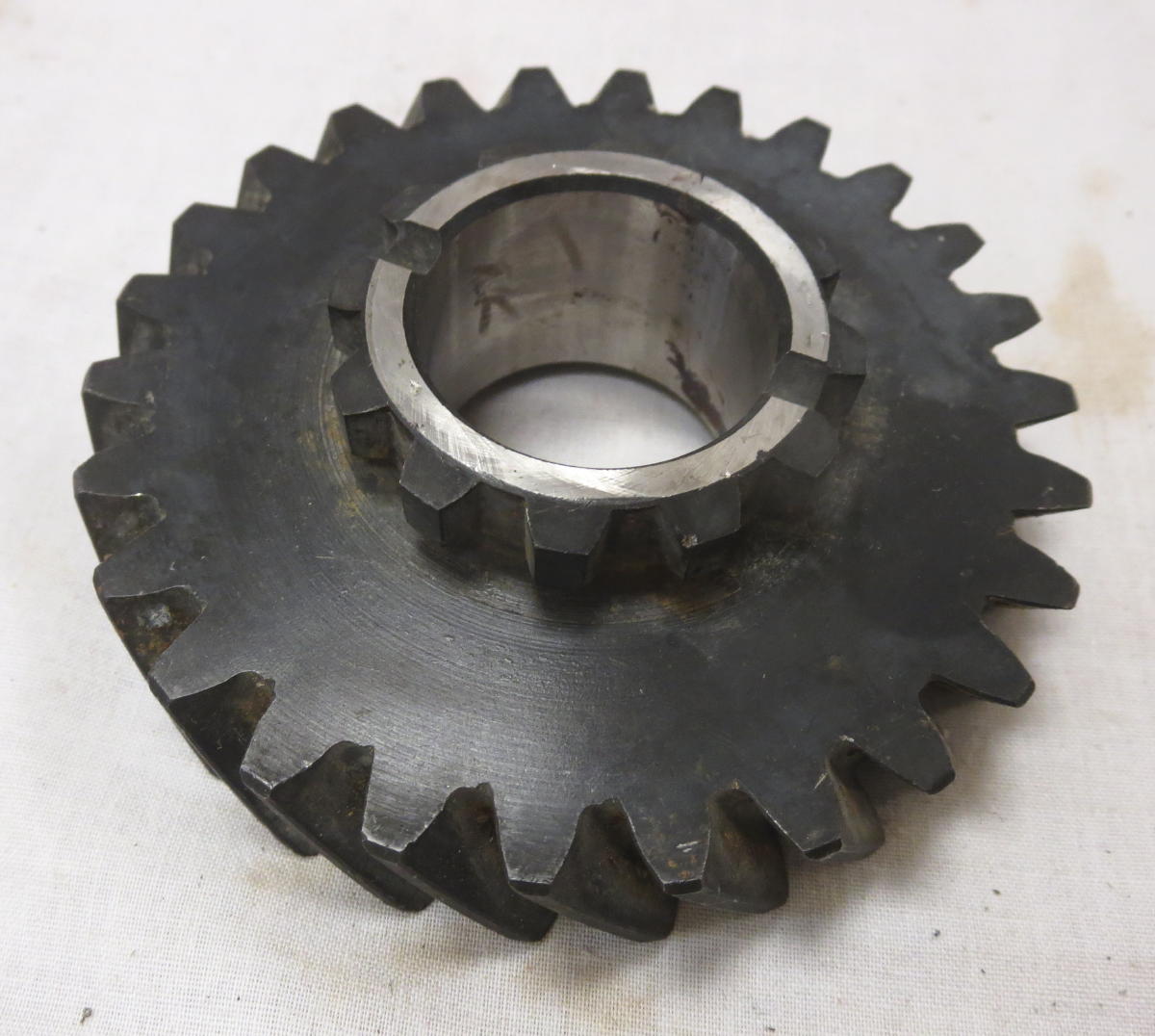

Gear, output shaft

$65.00 NOS

WO-807767

Shaft, main output

$150.00 NOS

WO-801367

Nut, main shaft

$2.50 NOS

WO-A-1028

Washer, main shaft

$1.50 NOS

WO-A-987

Bushing, clutch shaft

$5.00 R.

WO-A-976

Snap ring, output clutch shaft

$1.50 R.

WO-A-990

Washer, output shaft

$3.50 R.

WO-A-991

Snap ring, output shaft

$1.50 R.

WO-10469

Gear, drive, main shaft

$110.00 R.

WO-51575

Bearing, output shaft

$19.00 R.

WO-52883

Cup, output shaft

$15.00 R.

WO-A-990

Washer, thrust output shaft

$4.00 R.

WO-A-991

Snap ring, output shaft

$1.50 R.

WO-642189

Gear, intermediate

$145.00 R.

WO-642190

Bearing, intermediate shaft

$12.00 R.

WO-642188

Shaft, intermediate

$20.00 R.

WO-642191

Washer, thrust

$3.75 R.

WO-806718

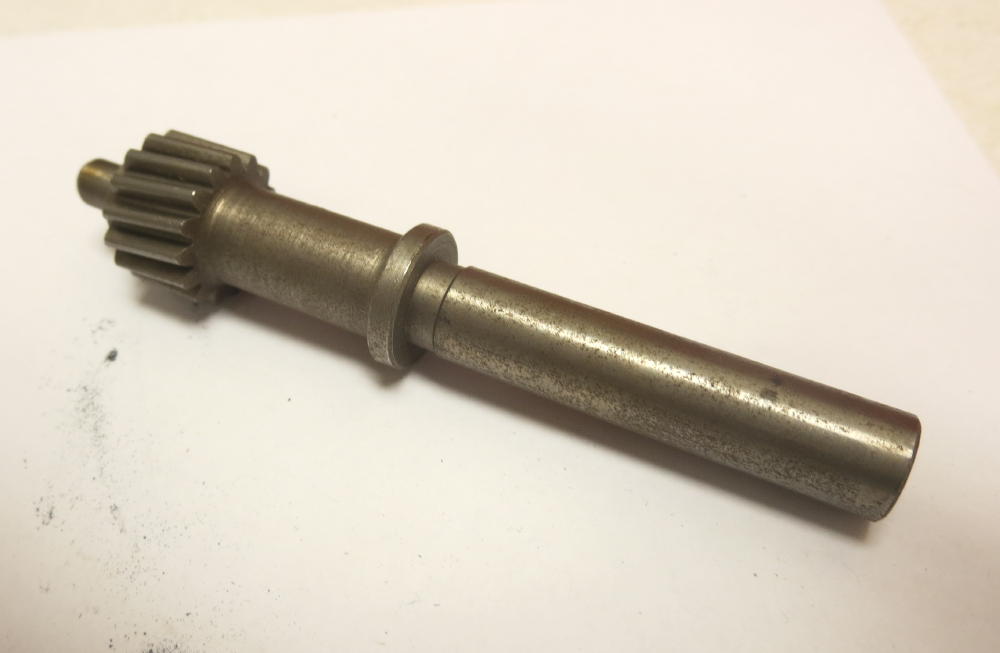

Gear, speedometer (long) - M38A1

$30.00 NOS

WO-806719

Sleeve, speedometer gear

$20.00 NOS

WO-801183

Retainer, bearing, front M38-M38A1

$150.00 NOS

WO-A-9330

Retainer, bearing, rear w/ stud – M38

$125.00 NOS

WO-806024

Retainer, bearing, rear – M38A1

$75.00 NOS

WO-801330

Lever, gear shift, high & low range

$40.00 NOS

WO-801331

Lever, gear shift, front wheel drive

$40.00 NOS

WO-801332

Spring, shift lever

$6.00 NOS

WO-800818

Bolt, pin shift lever

$25.00 R.

WO-A-1105

Flange, rear companion output

$50.00 R.

WO-A-1106

Yoke, front output

$50.00 R.

WO-801328

Cover, bottom, pan

$35.00 NOS

WO-802088

Cover, rear

$25.00 NOS

WO-A-934

Breather, transfer case

$15.00 NOS

WO-922717

Kit, small parts

$42.00 R.

WO-801660 Plug, fill & drain, transfer case (uses 2) replacement type $5.00 R.
WO-801660 Plug, fill & drain, transfer case (uses 2) $10.00 NOS
WO-A-967 Plug, transfer $5.00 NOS
