MB - GPW GROUP 12 BRAKE

MB-GPW

GROUP 12 BRAKE

*NEW* Brake and Clutch Cast Pedals

These are the New High Quality reproductions of the Cast Brake and Clutch Pedals for the Early Ford GPW and the Willys Slat Grill.  These pedals are available with the "F" mark for the GPW and plain (unmarked) for the Slat Grill.

Available Options

- Price - $40.00 per pedal -

Draft Pad Set (standard)

These are Pedal Draft Pads  with springs and washers used on the MB and GPW.  Sold as a set as pictured.

- Price - $15.00 -



Draft Pad Set (GPW Style)

These are the GPW Style Felt Draft Pads.  Sold as a set as pictured.

- Price - $20.00 -



Draft Pad Set (early Rubber)

These are the Early Rubber Draft Pads used on early WWII Jeeps like the Slat Grill.  Sold as a set as pictured.

- Price - $20.00 -

.

.

.

.

.

.



Brake Tube with Mount

This is a interesting part, the brake tube mounting bracket on all MB-GPW always wears out because it was metal to metal, a poor design. Well I have the fix for this problem a new mounting bracket with a brass bushing, ah yes how sweet it is! I also have the matching tube for it. Sold separately.

Available Options

- Brake Tube - $35.00 -

- Brake Tube Mounting Bracket - $30.00 -



Steel Brake Line Kit MB GPW

These steel brake line kits are our own product that we have made locally.  These lines are exact reproductions -copied from original samples.  It is the cheapest (in price) steel brake line kit available today.  Our kits even includes the correct bent S lines (see picture below).  Many of these kits sold by other dealers have an incorrect flat S line.

Price $98.00

S Lines are available separately - Price $6.00 each

Master Brake Kit MB GPW

This is a master brake kit for the MB and GPW.  It contains the Master Brake Cylinder, four wheel cylinders, brake shoes for all four wheels, all four rubber brake hose, the  correct style hose clips, copper washers for the master cylinder and brake hoses and four brake shoe return springs.

Price $295.00

.

.

.



Master Cylinder and Wheel Cylinder Kit MB - GPW

These are reproduction Master Cylinder and Wheel Cylinder Kits for the MB and GPW.  Each kit contains one Master Cylinder and four Wheel Cylinders (2 front and 2 rear) for the MB/GPW  Military Jeep as well as the CJ2A.

- Price - $135.00 -

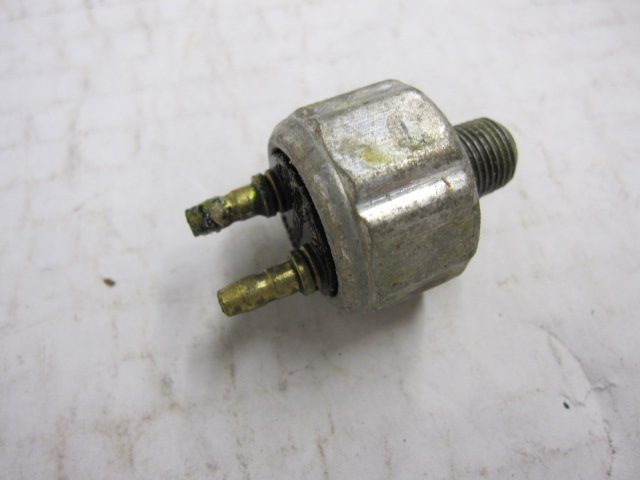

NOS Stop Light Switch

This is an original switch not a cheap reproduction.

Stop Light Switch - NOS - Price $15.00

.

.

.

.



External Emergency Brake Band Assembly

This is a reproduction of the brake band assembly used on all early to mid year MB & GPW.

- Price - $65.00 -

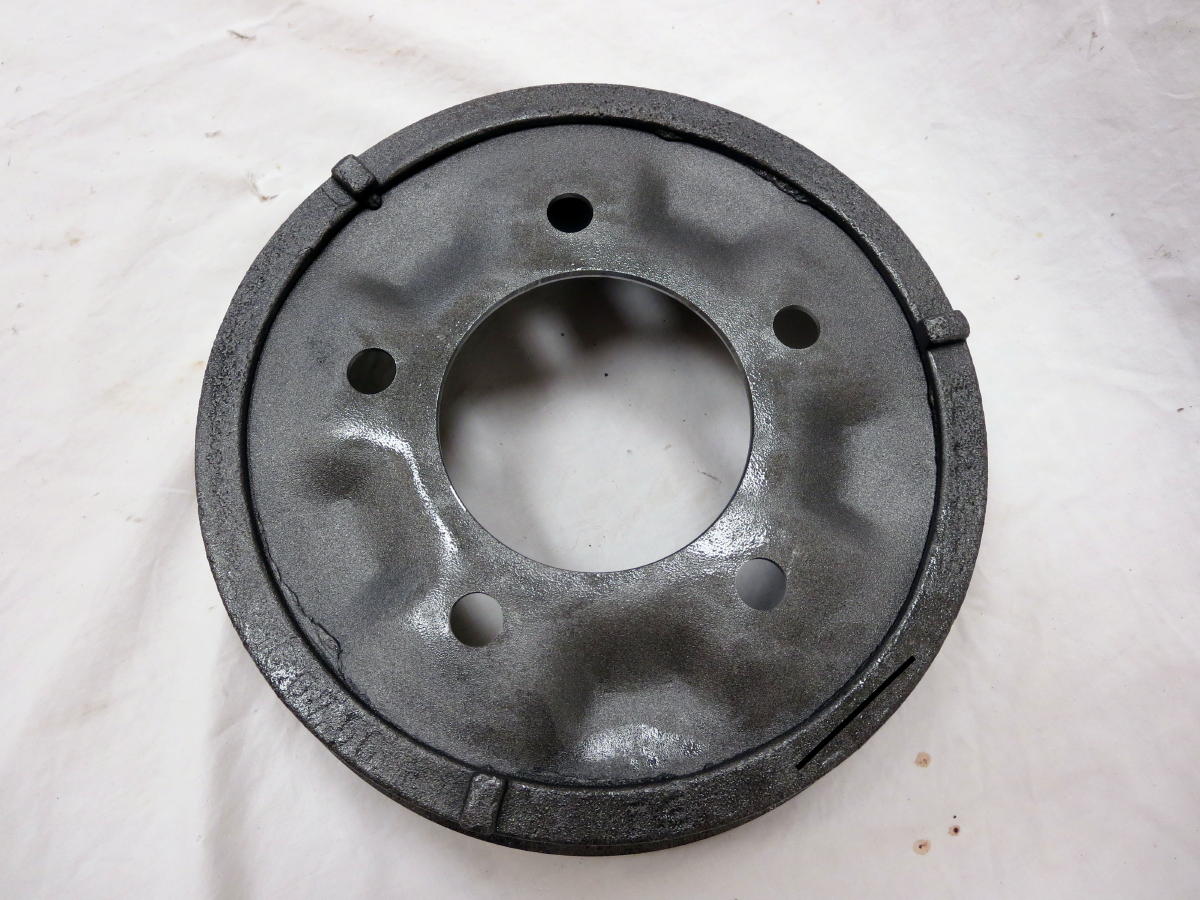

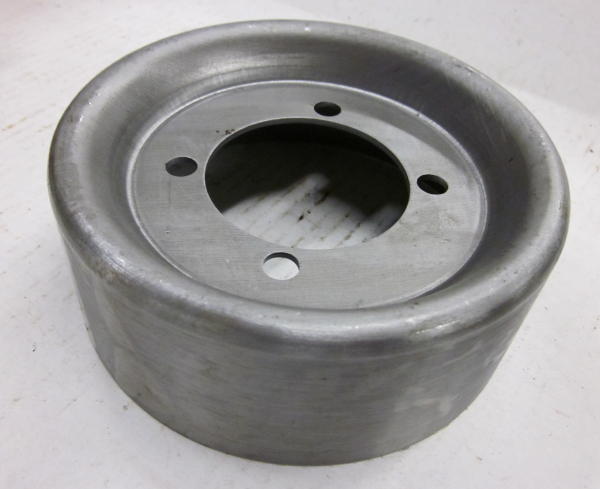

External Emergency Brake Drum

This is a reproduction of the drum used on the early external band style emergency brake system for early to mid year MB & GPW.

- Price - $50.00 -

.

.

.

.

.



Hand brake cable MB or GPW

Out of all the reproduction parts I have sold , this one is in a class all by it self. It is as good as an original, from the wire wrap cable to the "F" in the GPW handle it is perfect. It also comes with three clamps to hold the housing. Satisfaction guaranteed.  Available for MB or GPW with "F" mark and GPA is also available, please call for more information.

Available Options

Price $115.00

.

.

.

.

.

.

.

.

.

.

.



Don't see what you are looking for?

Try checking our MB-GPW Brake Parts Listing Below.  If something does not have a button to click for ordering then give us a call or send us an email.

Part #

Part Description (Brake)

Price

Click for Pictures

GROUP 12 BRAKE



BRAKE-KIT Master Brake Kit - contains Master Cylinder, 4 Wheel Cylinders, Brake Shoes for 4 wheels, 4 Brake Shoe Return Springs, 4 Rubber Brake Hoses, 6 correct style Clips for brake hoses and Copper Washers for brake hoses and master cylinder. $295.00 R.

WO-A-556

Master cylinder, assembly new exact repro

$55.00 R.

WO-KIT-MA

Kit, master cyl rebuild Wagner U.S. Made

$20.00 R.

GPW-2162

Cap, for master cylinder

$20.00 NOS

WO-637602

Boot, master cylinder

$5.00 R.

WO-637605

Bolt, master cylinder outlet fitting

$8.00 NOS

WO-637604

Washer, copper master cyl outlet bolt

$1.50 R.

WO-637606

Washer, copper master cyl outlet bolt

$1.50 R.

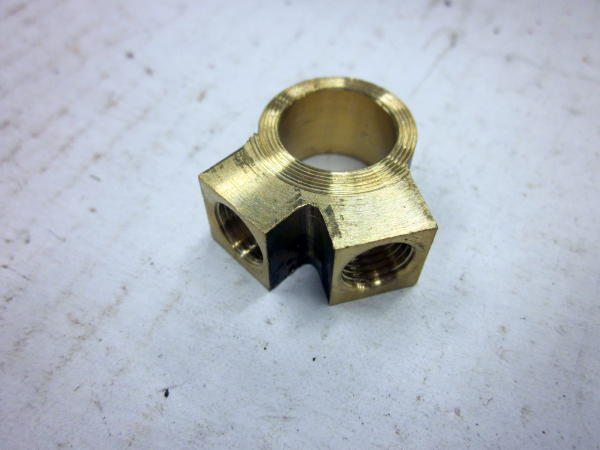

WO-A-557

Fitting, outlet, master cylinder

$8.00. R.

WO-A-1271

Switch, stop light

$15.00 NOS

WO-637599 Rod, push, master cylinder $20.00 R.
WO-A-183 Bolt, for rod assembly, master cylinder $15.00 R.

WO-A-647

Shield, master cyl (heat shield F available)

$45.00 R.

WO-A-6110

Wheel cylinder, rear

$22.00 R.

WO-A-1484

Wheel cylinder, front

$22.00 R.

WO-KIT FR

Kit, wheel cyl front

$5.00 R.

WO-KIT R

Kit, wheel cyl rear

$5.00 R.

WO-637540

Screw, bleed wheel cylinder

$3.00 R.

GPW-2264

Line, steel master cyl front

$15.00 NOS

WO-A-1488

Line, steel S wheel cylinder to hose

$6.00 R.

WO-A-1460

Hose, brake front axle to drum

$15.00 R.

WO-637424

Hose, brake, rear axle to frame

$15.00 R.

WO-A-1373

Hose, brake front axle to frame

$15.00 R.

WO-637426

Gasket, brake hose fitting (copper)

$0.75 NOS

WO-637432

Fitting, tee, brake hose

$8.00 R.

WO-A-5449

Clip, brake hose

$2.00 NOS

GPW-2223

Clip, brake tube

$3.00 NOS

LINE-SET

Brake line set, all steel lines complete (High quality)

$98.00 R.



Kit, brake line clip set (in steel line set)

$42.00 R.

WO-630593

Spring, return brake pedal to frame

$5.00 NOS

WO-637901

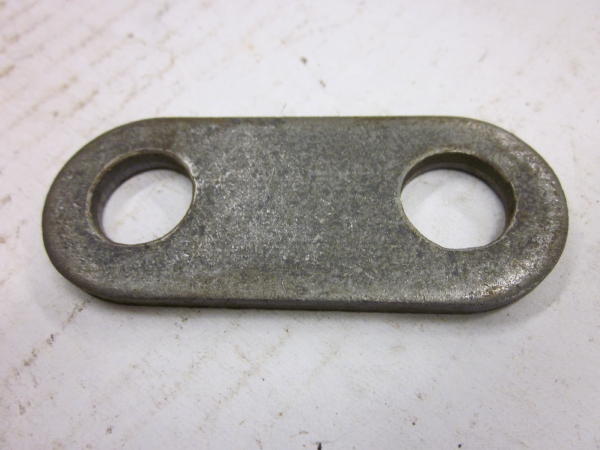

Plate, anchor pin

$5.00 U.

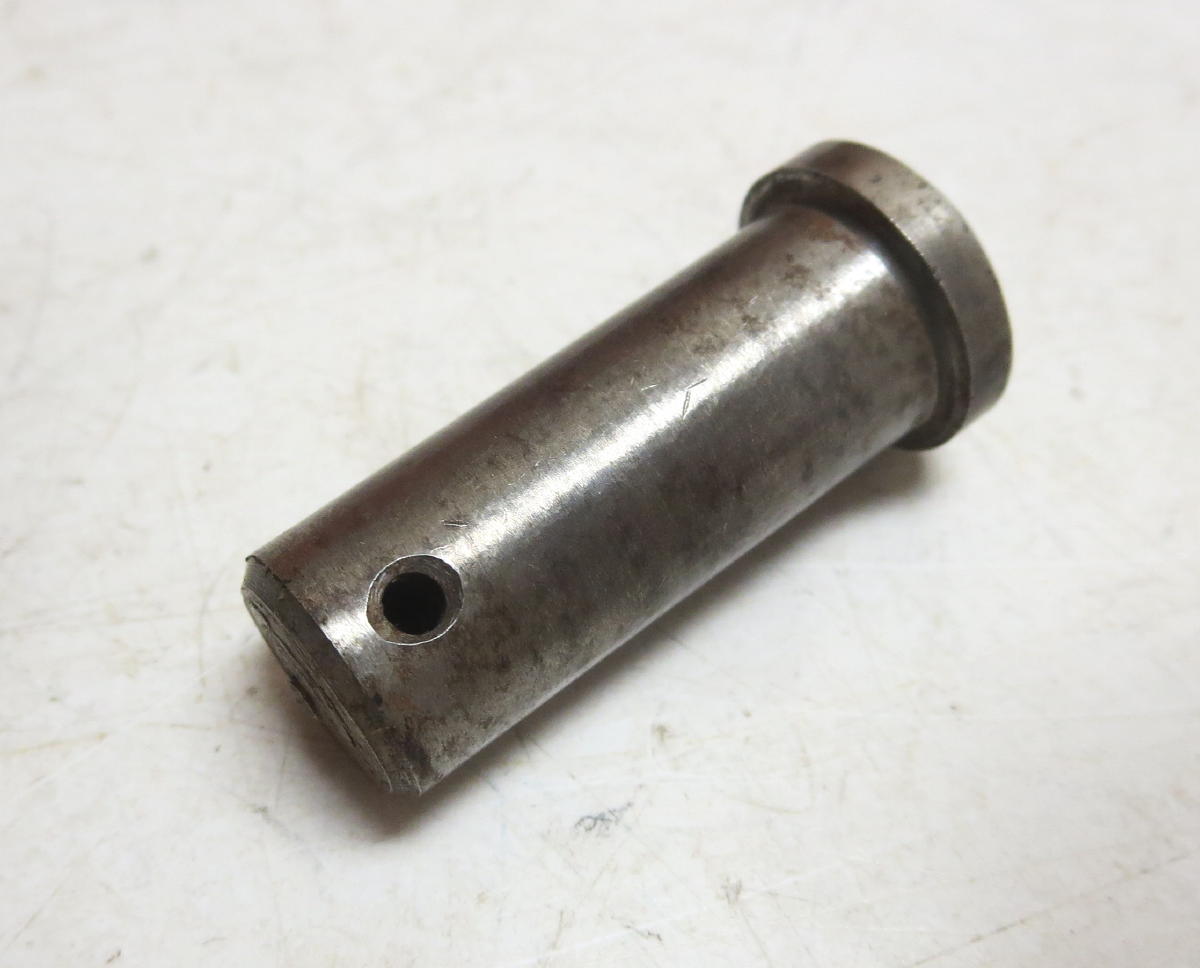

WO-537899

Pin, anchor bolt brake shoe

$10.00 NOS

WO-637900

Cam, shoe anchor pin

$5.00 R.

WO-A-754

Eccentric, brake shoe

$5.00 NOS

WO-637905

Spring, return brake shoe

$3.00 NOS

WO-A-8898

Plate, backing front and rear

$P.O.R. U.

STD-DRAFT Clutch & brake pedal draft pad kit Std $15.00 R.
EARLY-DRAFT Clutch & brake pedal draft pad kit Early $20.00 R.
GPW-DRAFT Clutch & brake pedal draft pad kit GPW type $20.00 R.

WO-A-1009

Band, handbrake external type assembly

$65.00 R.

WO-A-1002

Drum, handbrake external type

$50.00 R.

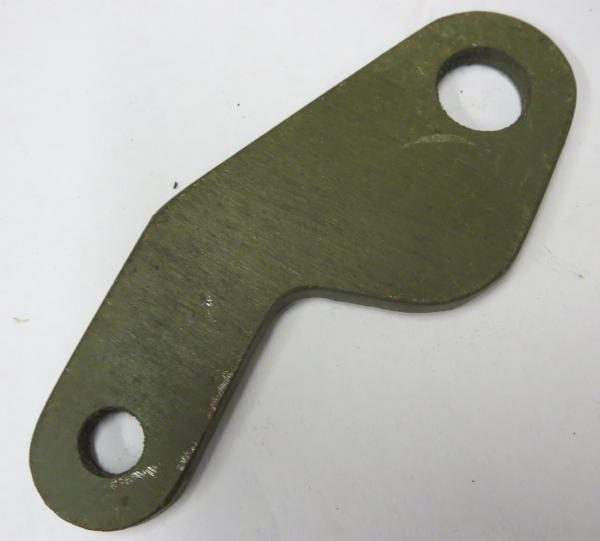

WO-A-1003 Cam, hand brake $8.00

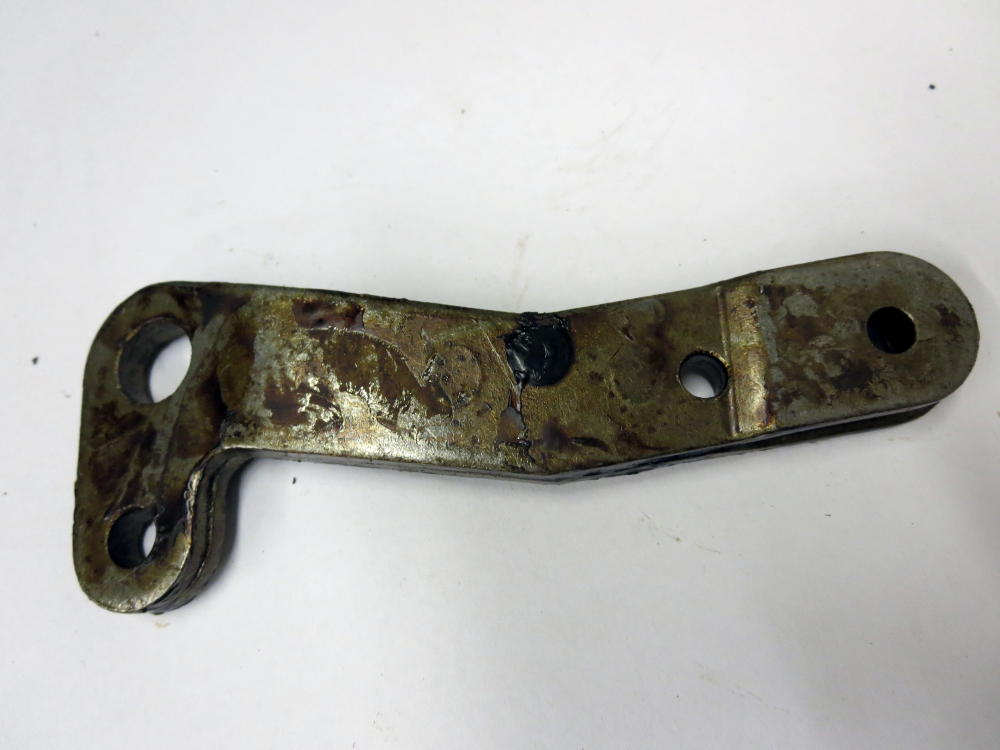

WO-A-1226

Crank, hand brake, external type

$20.00 NOS

WO-A-1227

Screw, for crank (special shoulder)

$5.00 NOS

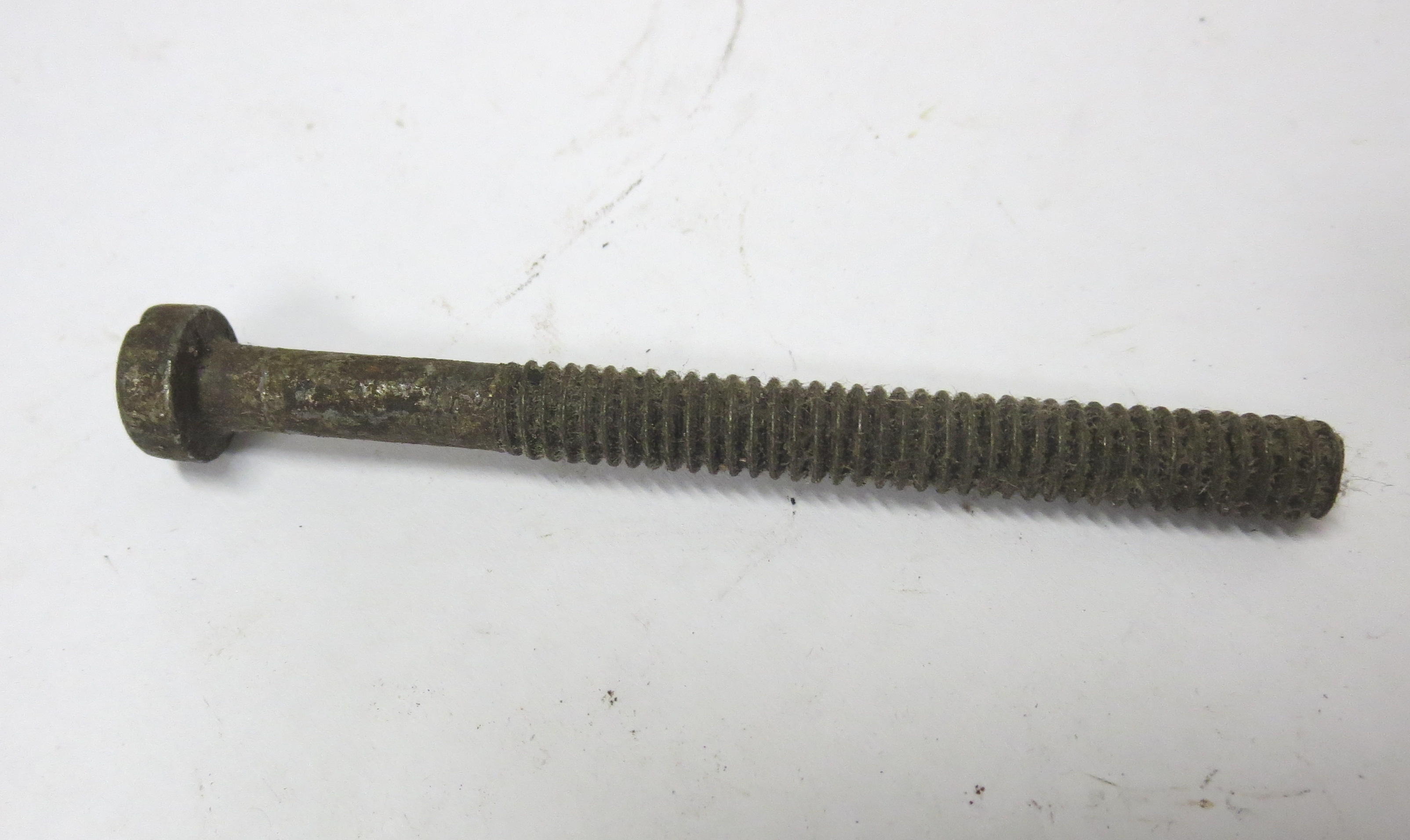

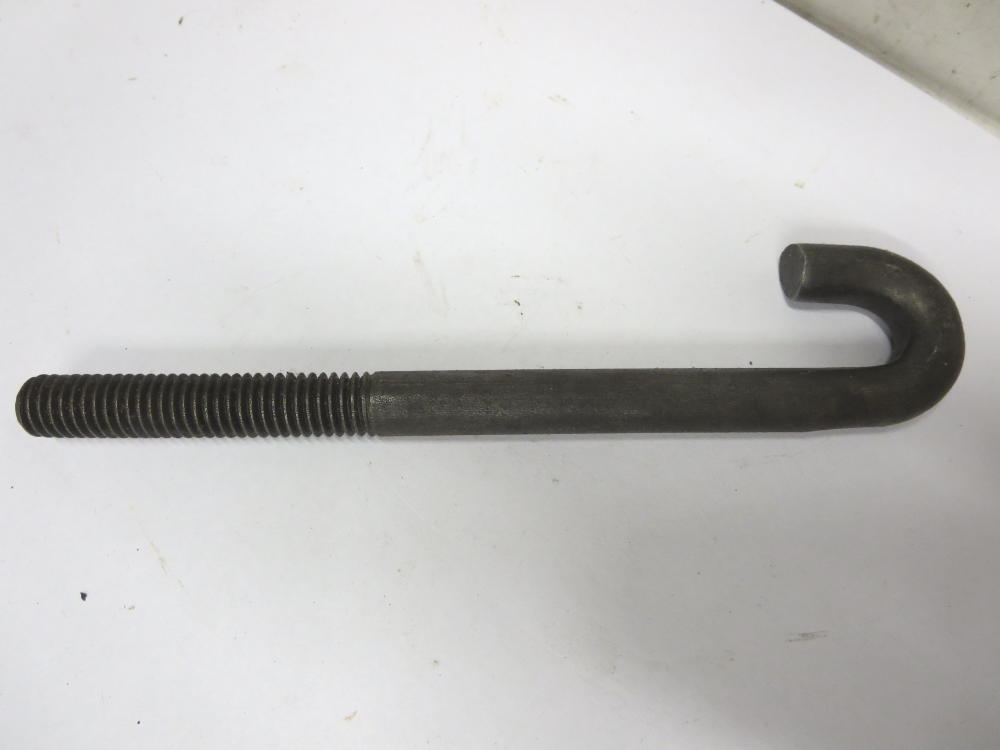

WO-A-1016

Bolt, hand brake adjuster

$15.00 NOS

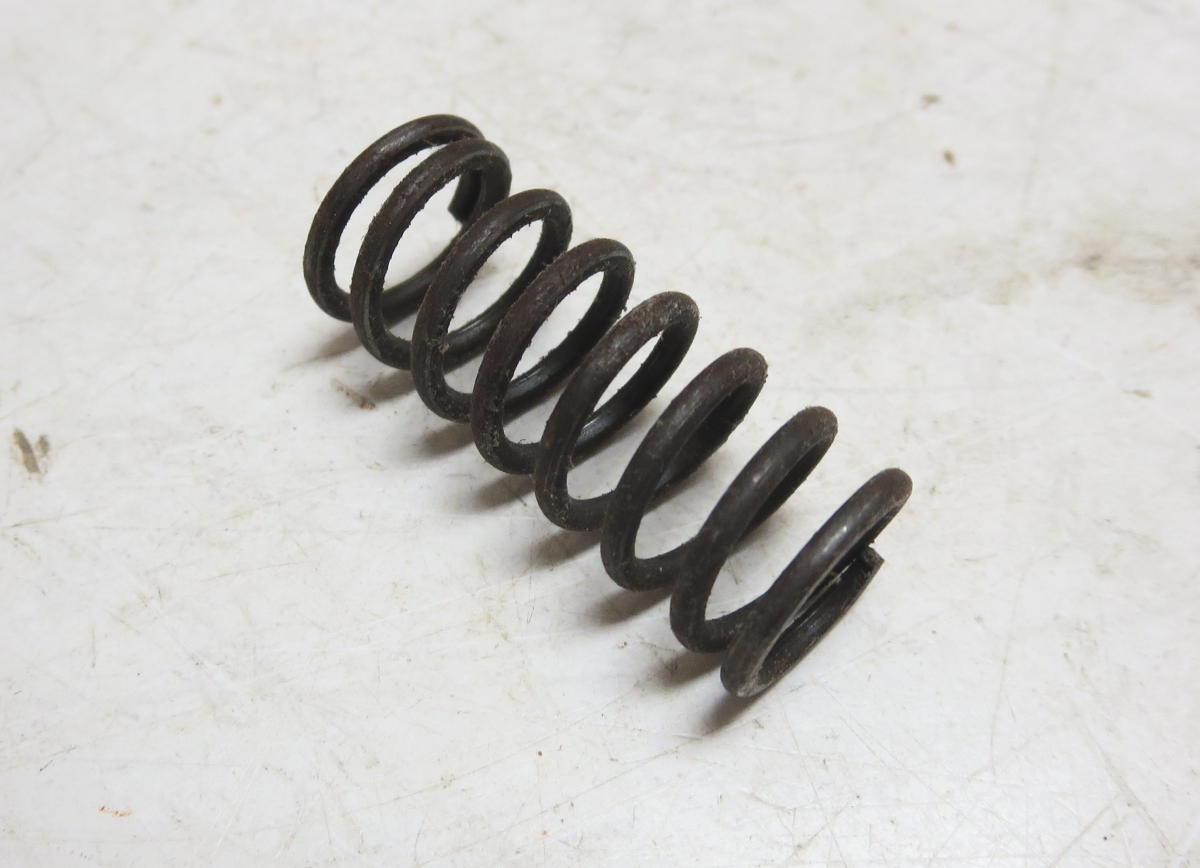

WO-A-1017 Spring, releasing, hand brake $5.00 R.

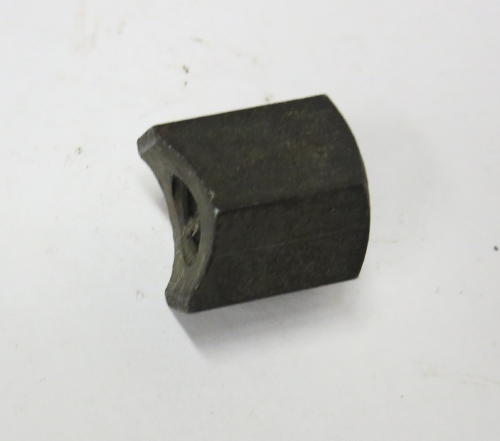

WO-A-1018

Nut, adjusting, hand brake, external type

$5.00 NOS

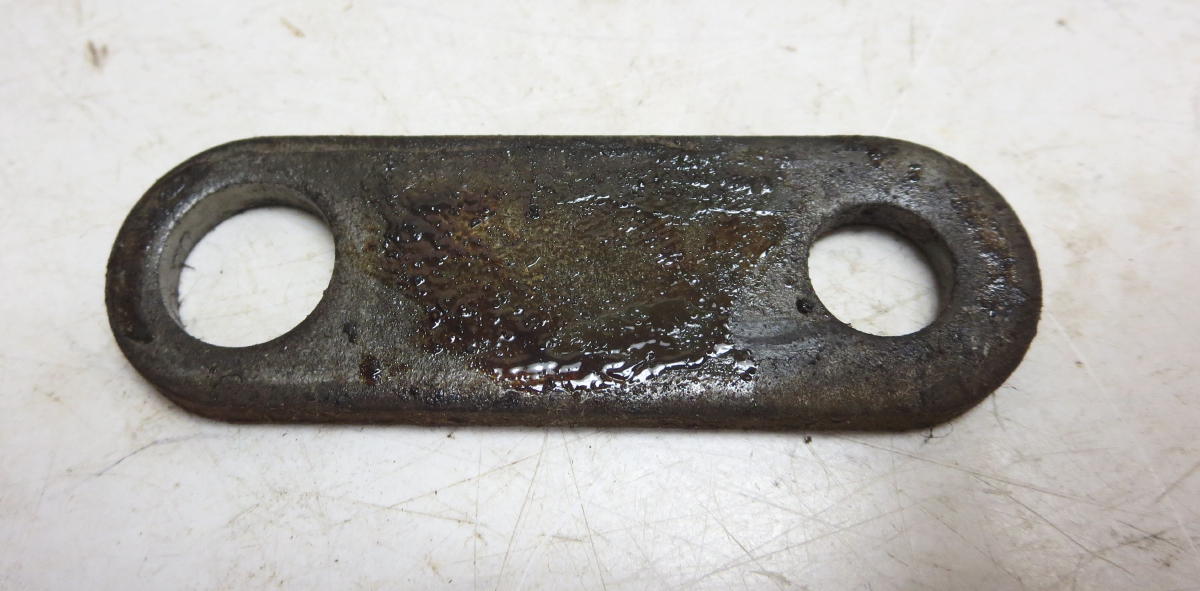

WO-A-1005

Quadrant, support hand brake

$5.00 NOS

WO-A-1004

Pin, hand brake cam

$4.00 NOS

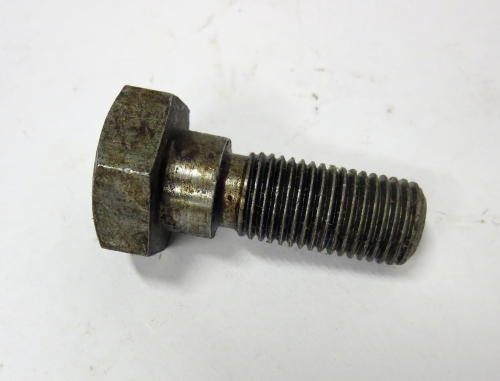

WO-A-1019

Bolt, hand brake brt

$4.00 NOS

WO-A-1020 Screw, anchor  $5.00 R.
WO-A-1021 Spring, anchor $5.00 R.

WO-A-1242

Cable, w/ handle, hand brake, external type, no wire wrap

$45.00 R.

WO-A-1242W Cable, w/ handle, hand brake, external type, without clips with wire wrap $65.00 R.
WO-A-1242PB Cable w/ handle, hand brake, external type, 3 clamps, wire wrap, exact repro  $115.00 R.

GPW-2780

Cable w/ handle, hand brake, external type, 3 clamps, wire wrap, F markings exact repro

$115.00 R.

WO-639010

Bracket, hand brake ratchet tube w/ guide spring

$20.00 NOS

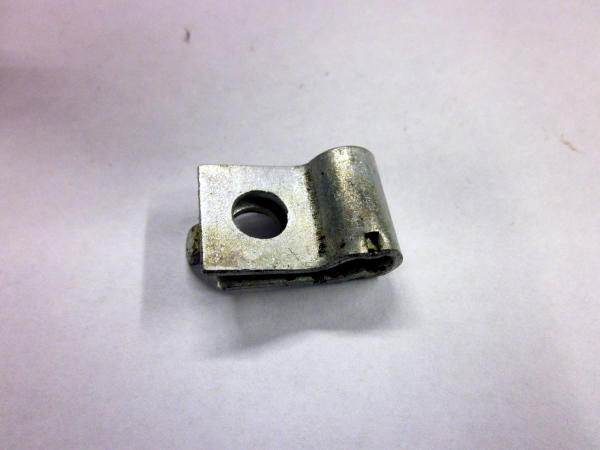

GPW-2272

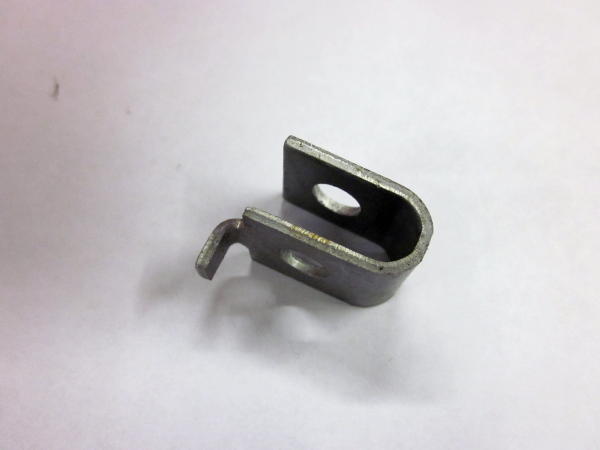

Clip, hand brake cable at air cleaner brt. F

$4.00 NOS

WO-638780

Clip, hand brake cable at transfer case

$4.00 NOS

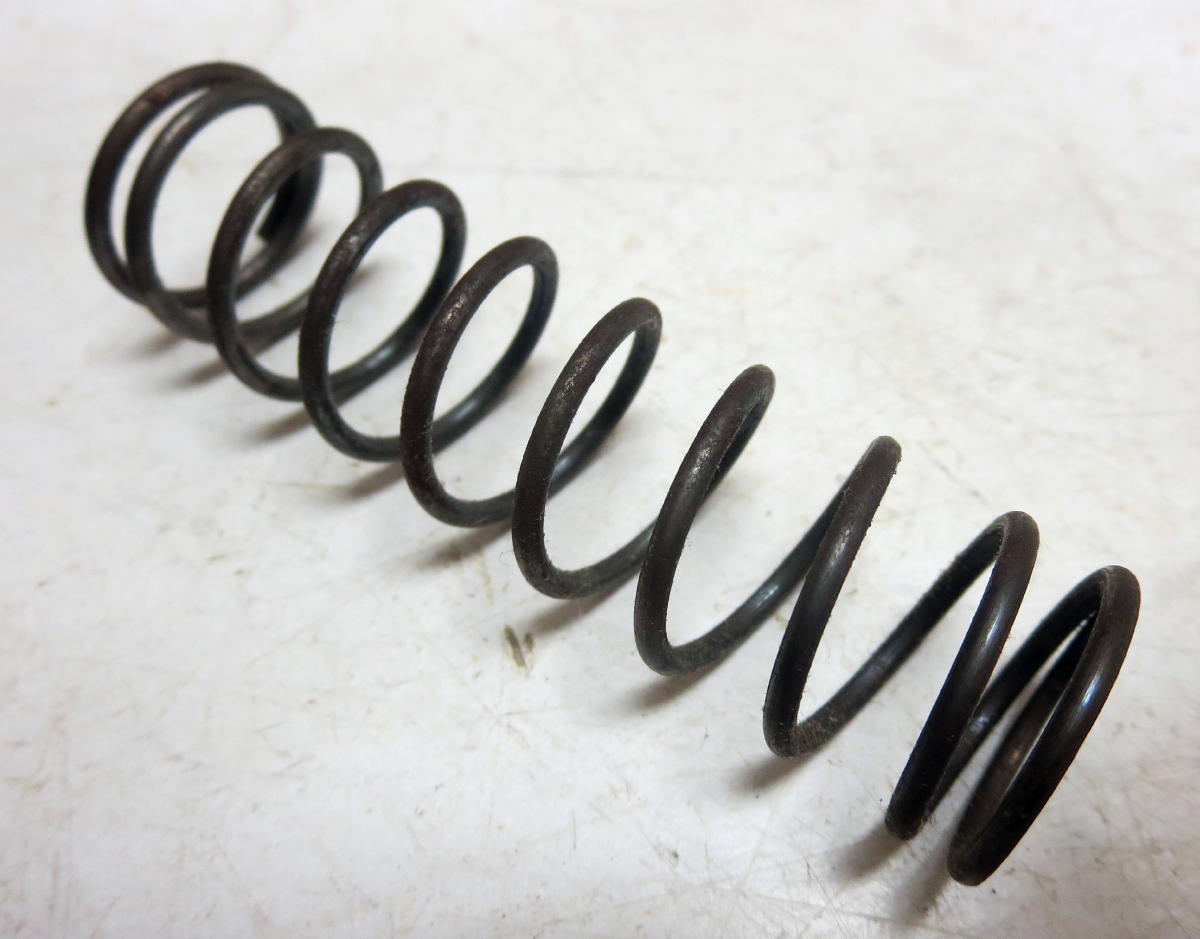

WO-A-5335

Spring, hand brake, retracting cable

$4.00 R.

WO-A-10324

Shoe, lining set hand break internal (late type)

$45.00 NOS

WO-116600

Lining set, hand brake internal (late type)

$20.00 NOS

WO-A-10337

Spring, retracting, shoe internal late

$4.00 R.

WO-A-10338

Spring, retracting, shoe, adjust internal late type

$4.00 R.

WO-642776

Brake, hand, assembly complete internal (late type)

$POR.NOS

WO-A-9332

Drum, hand brake internal (late type)

$60.00 NOS

WO-A-17254

Lever, hand brake internal (late type)

$10.00 NOS

WO-639244

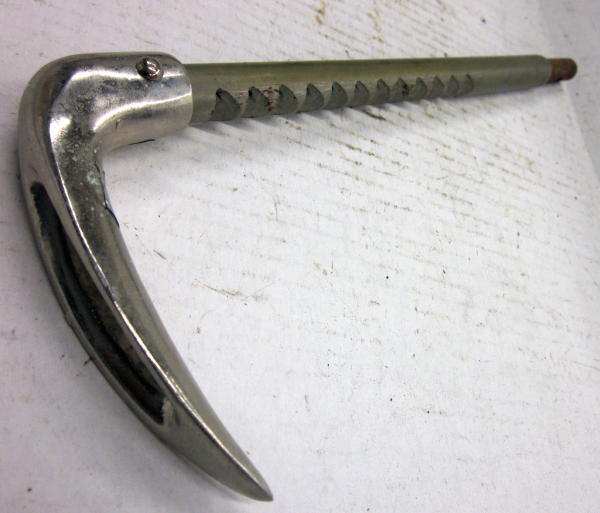

Handle, hand brake internal (late type)

$20.00 NOS

WO-15149

Cable, hand brake internal (late type)

$35.00 R.

WO-15149

Cable, hand brake internal (late type) wire wrap

$95.00 NOS

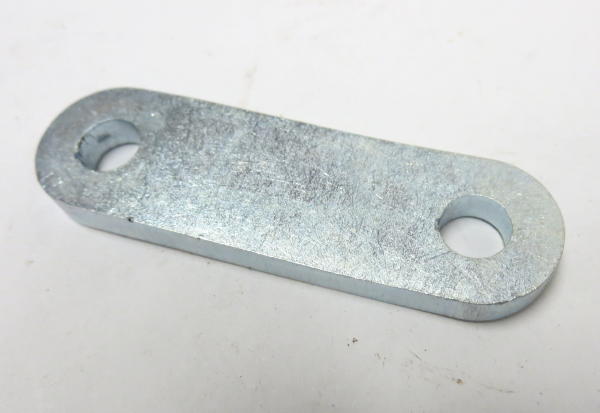

WO-A-1228

Link, hand brake cable crank

$5.00 NOS

GPW-2454

Pad, brake pedal cast (no shaft)

$25.00 R.

WO-A-1359

Pad, brake pedal (late type)

$40.00 NOS

BRAKE SHOES

Brake shoe set 4 shoes one axle

$40.00 R.



Brake shoe linings & rivets one axle set

$19.50

  Brake hose set 4 pc $55.00 R.









END
